Chapter 19. Microsoft Cluster configuration with DS3500 593

Draft Document for Review March 28, 2011 12:24 pm Microsoft Cluster configuration with DS3500.fm

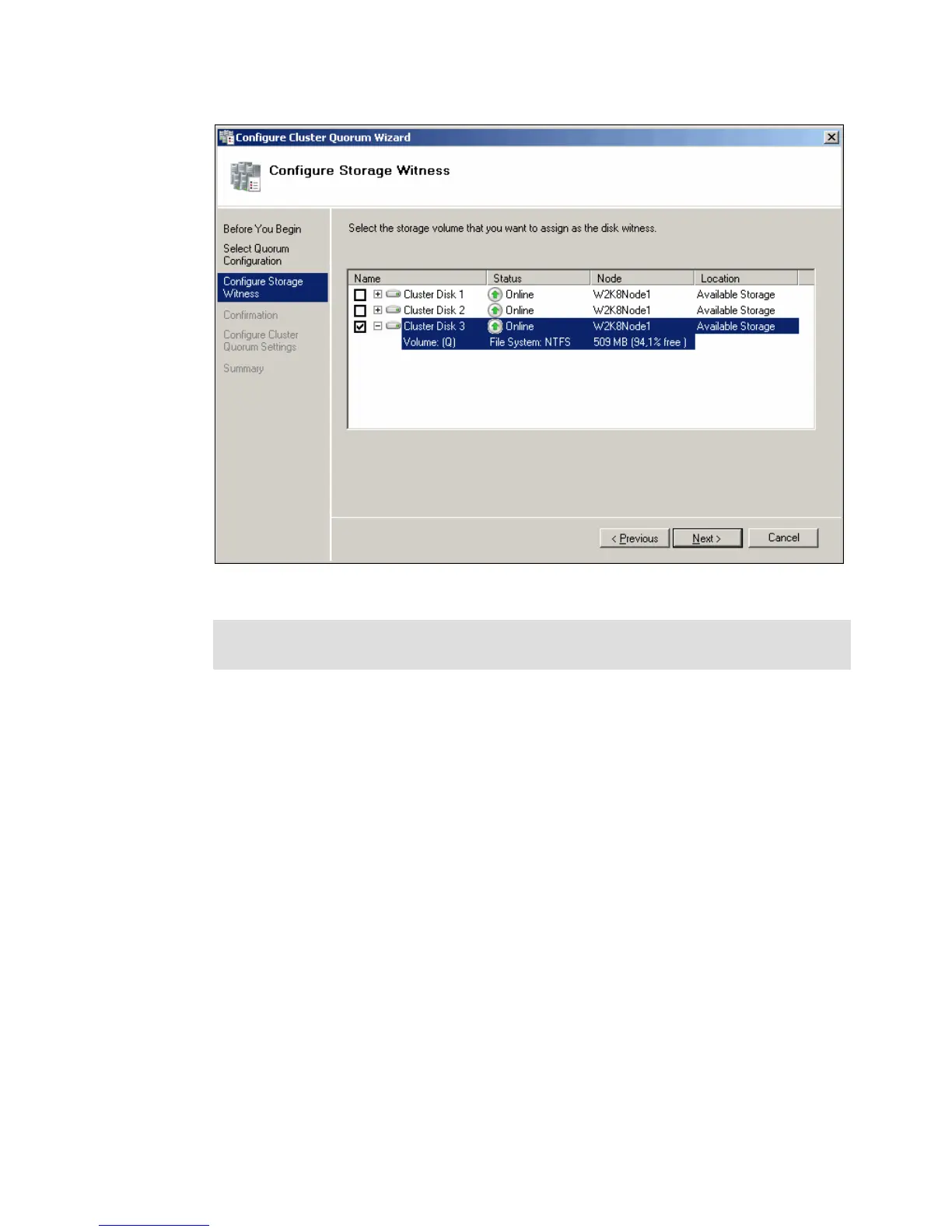

Figure 19-24 Configure Storage Witness

6. Confirm the Quorum Configuration as shown in Figure 19-25 on page 594 and click Next

Note: The witness disk is a disk in the cluster storage that is designated to hold a copy of

the cluster configuration database..
