Linux Config.fm Draft Document for Review March 28, 2011 12:24 pm
632 IBM System Storage DS3500: Introduction and Implementation Guide

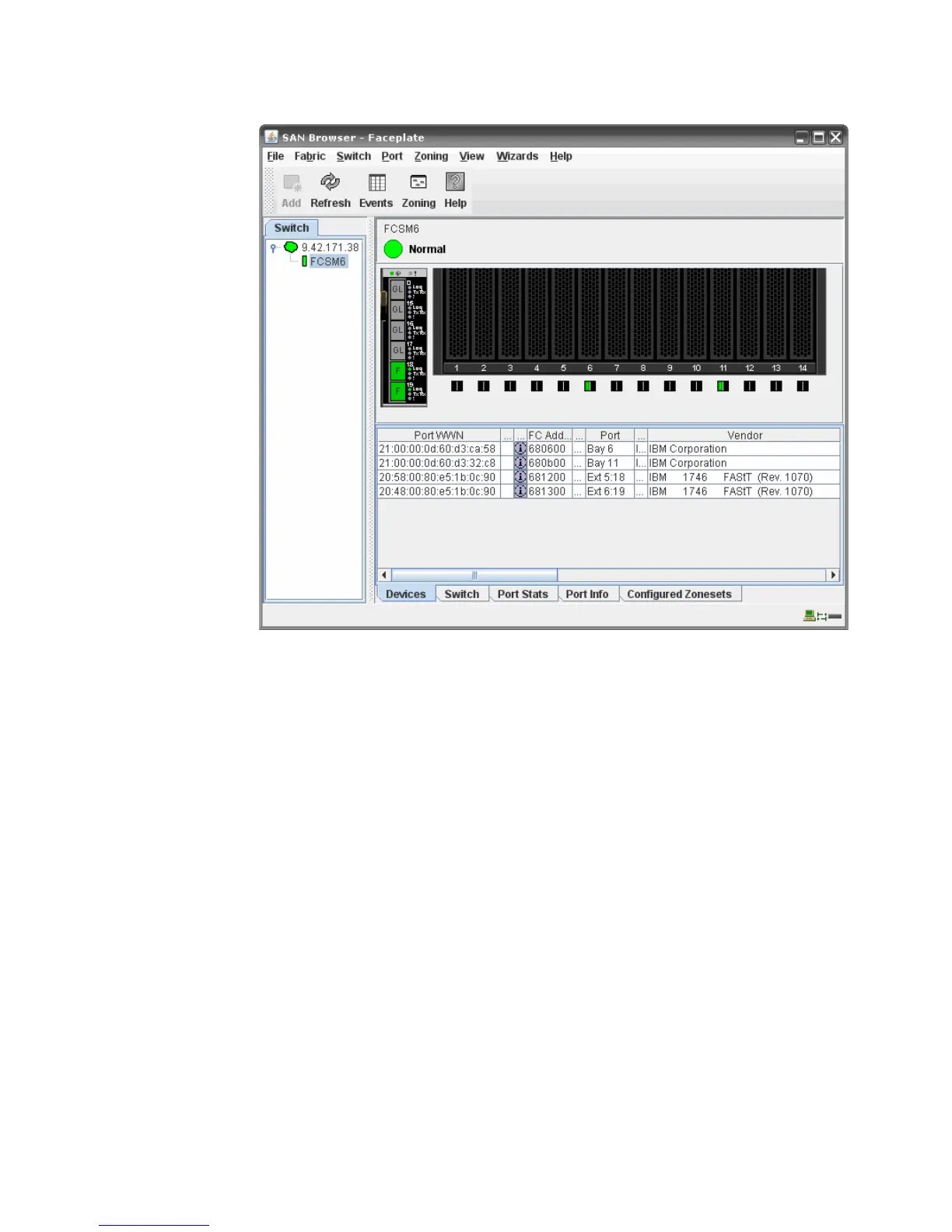

Figure 20-32 Qlogic San switch
b. Click on Zoning to edit the zoning configuration.
c. Click on ZoneSet to create a new ZoneSet called BootZone.
d. Right Click on the new ZoneSet BootZone and select create a zone called Boot.
e. Click on Alias to create an alias called Blade6_port1. Select the WWN from the right
panel and drag and drop it over the new alias.
f. Click on Alias to create an alias called Storage_port1. Select the WWN from the right
panel and drag and drop it on the last created alias.
g. Drag and drop each alias to the Boot zone and the final configuration should be similar
as shown in Figure 20-33 on page 633.
h. The final step is to Click on apply  Save Zoning  YES to activate one of the zone
sets and select BootZone.
