Chapter 22. VMware ESX Server and DS3500 Storage Configuration
685
Draft Document f
or Re
view March 28, 2011
12:24 pm
VMware ESX Server Storage Configuration with

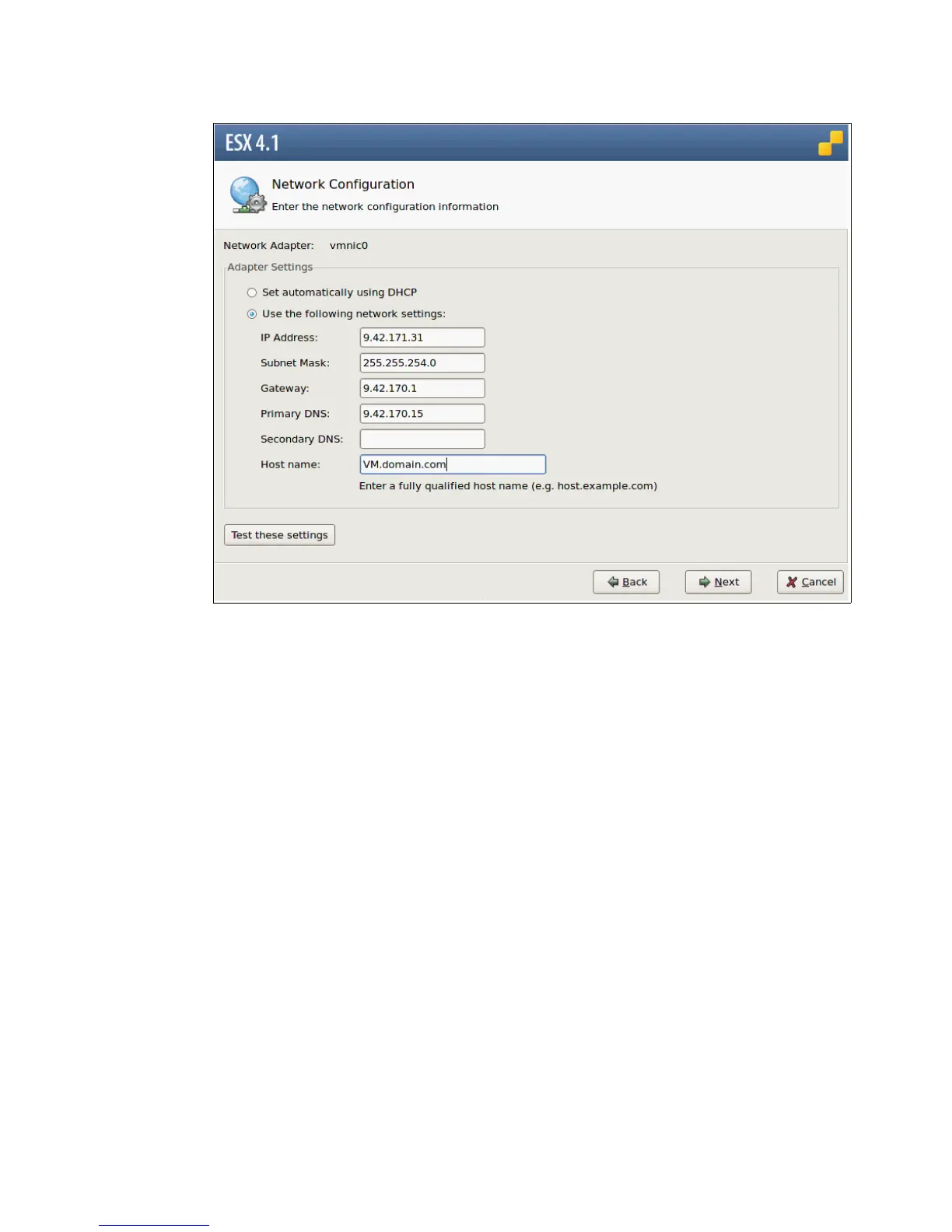

Figure 22-21 ESX Ne
twork Configuration
11.
Select the
T
est ther
e settings
opt
ion to confirm correct network connectivity
. See
Figure
22-22 on page
686.
Click
OK
and
Next
to contin
ue.
