VMware ESX Server Storage Configuration with DS3500.fm Draft Document for Review March 28, 2011 12:24

704 IBM System Storage DS3500: Introduction and Implementation Guide

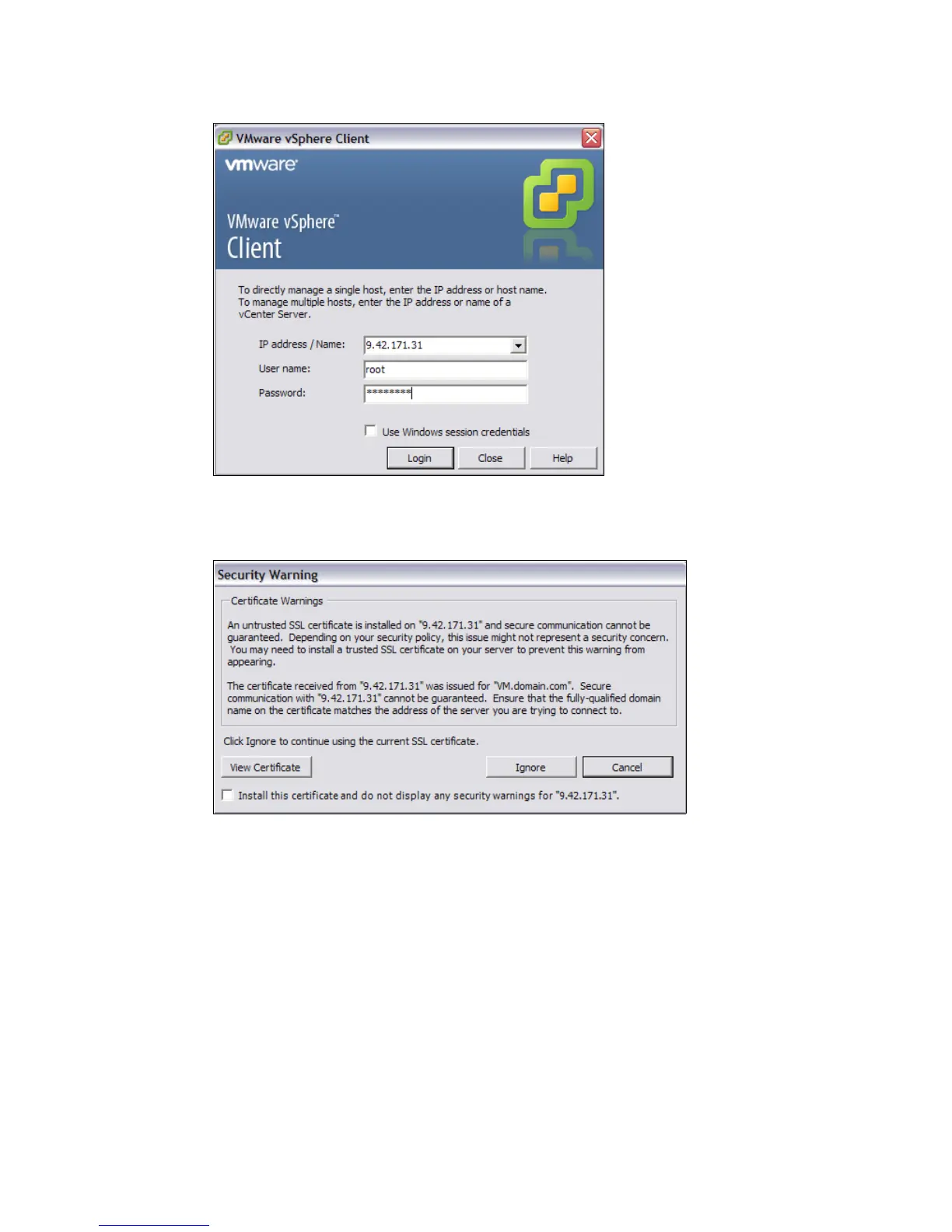

Figure 22-47 ESX vSphere Client

12.For now, ignore the Certificate warning (Figure 22-48) by clicking Ignore.

Figure 22-48 ESX vSphere client - Certificate warning

13.Figure 22-49 on page 705 is the initial administrative interface for the VMware ESX

Server. Click the Inventory icon.
