Chapter 22. VMware ESX Server and DS3500 Storage Configuration 707

Draft Document for Review March 28, 2011 12:24 pm VMware ESX Server Storage Configuration with

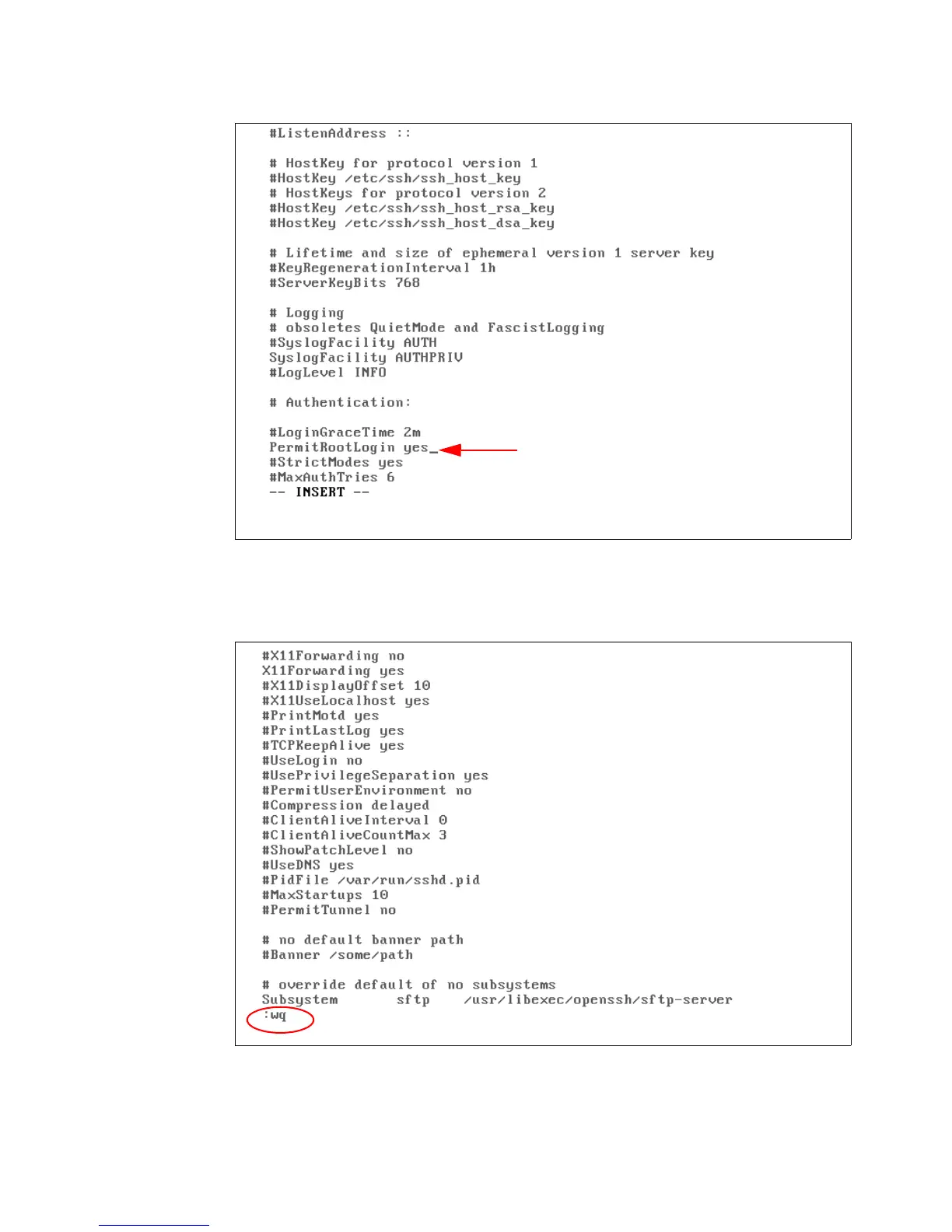

Figure 22-51 Permit Root Login

5. Exit with ESC and to save your changes enter at command line : wq for write/quit see

Figure 22-52

Figure 22-52 Exit of vi

6. Type service sshd restart. Figure 22-53
