VMware ESX Server Storage Configuration with DS3500.fm Draft Document for Review March 28, 2011 12:24

710 IBM System Storage DS3500: Introduction and Implementation Guide

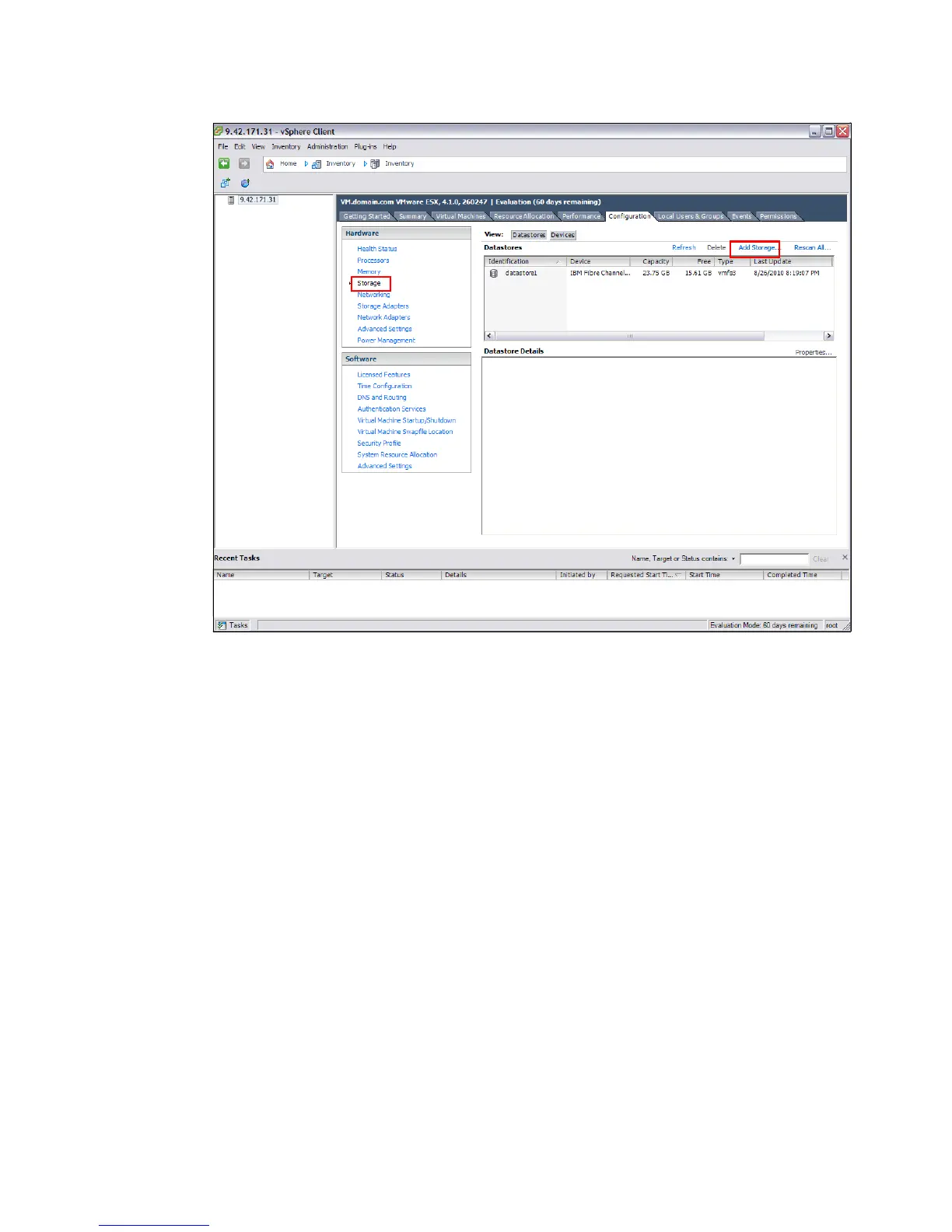

Figure 22-56 ESX Server - Storage selection

4. You are presented with the Storage Type selection panel. Select Disk/LUN to create a

new datastore on the Fibre Channel SAN disks, as shown in Figure 22-57 on page 711.

Click Next.
