Chapter 22. VMware ESX Server and DS3500 Storage Configuration 713

Draft Document for Review March 28, 2011 12:24 pm VMware ESX Server Storage Configuration with

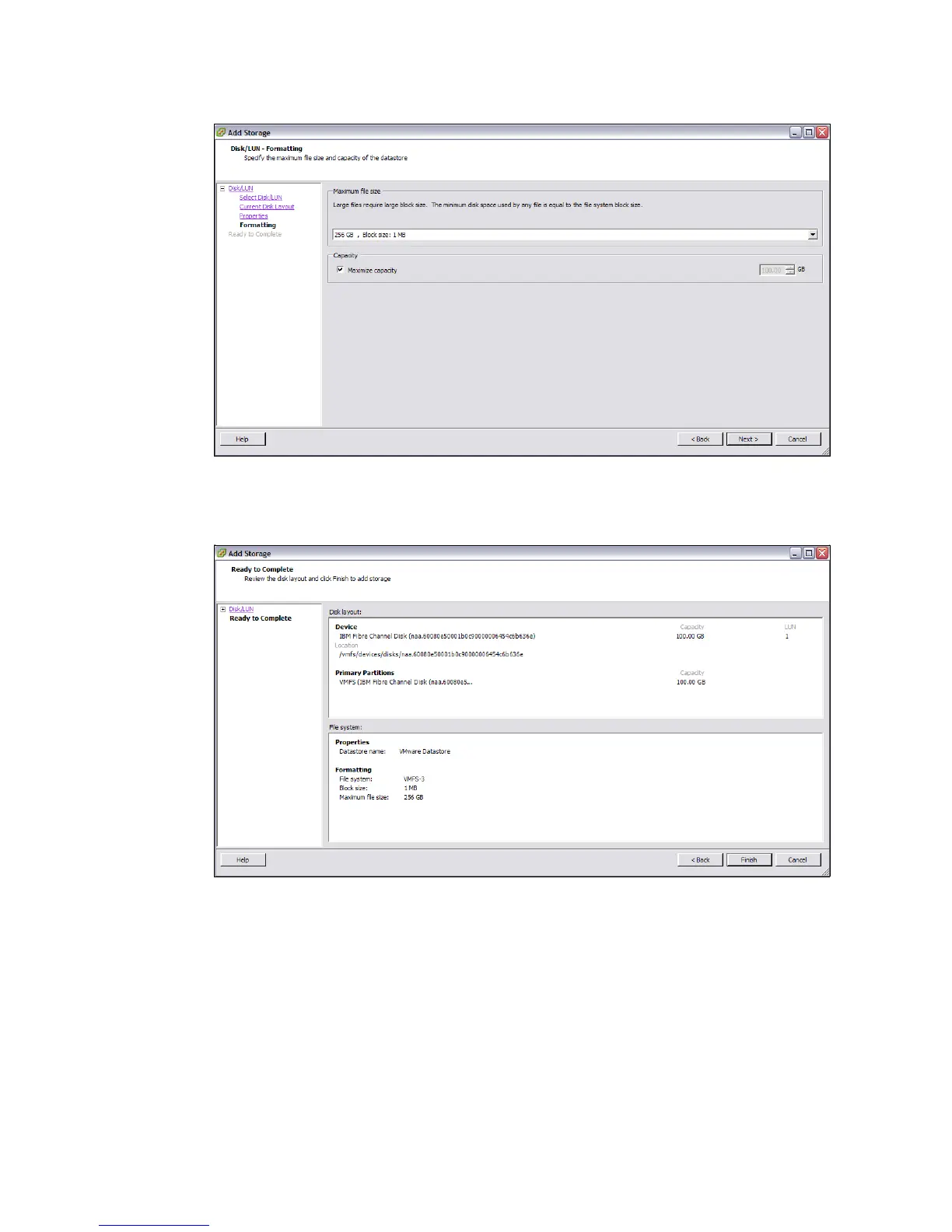

Figure 22-61 LUN formatting

9. Figure 22-62 is a summary panel for adding the storage. Click Finish to proceed.

Figure 22-62 Adding Storage - Summary panel

10.On Figure 22-63 on page 714, click Refresh to refresh the window to show the newly

created Datastore.
