VMware ESX Server Storage Configuration with DS3500.fm Draft Document for Review March 28, 2011 12:24

716 IBM System Storage DS3500: Introduction and Implementation Guide

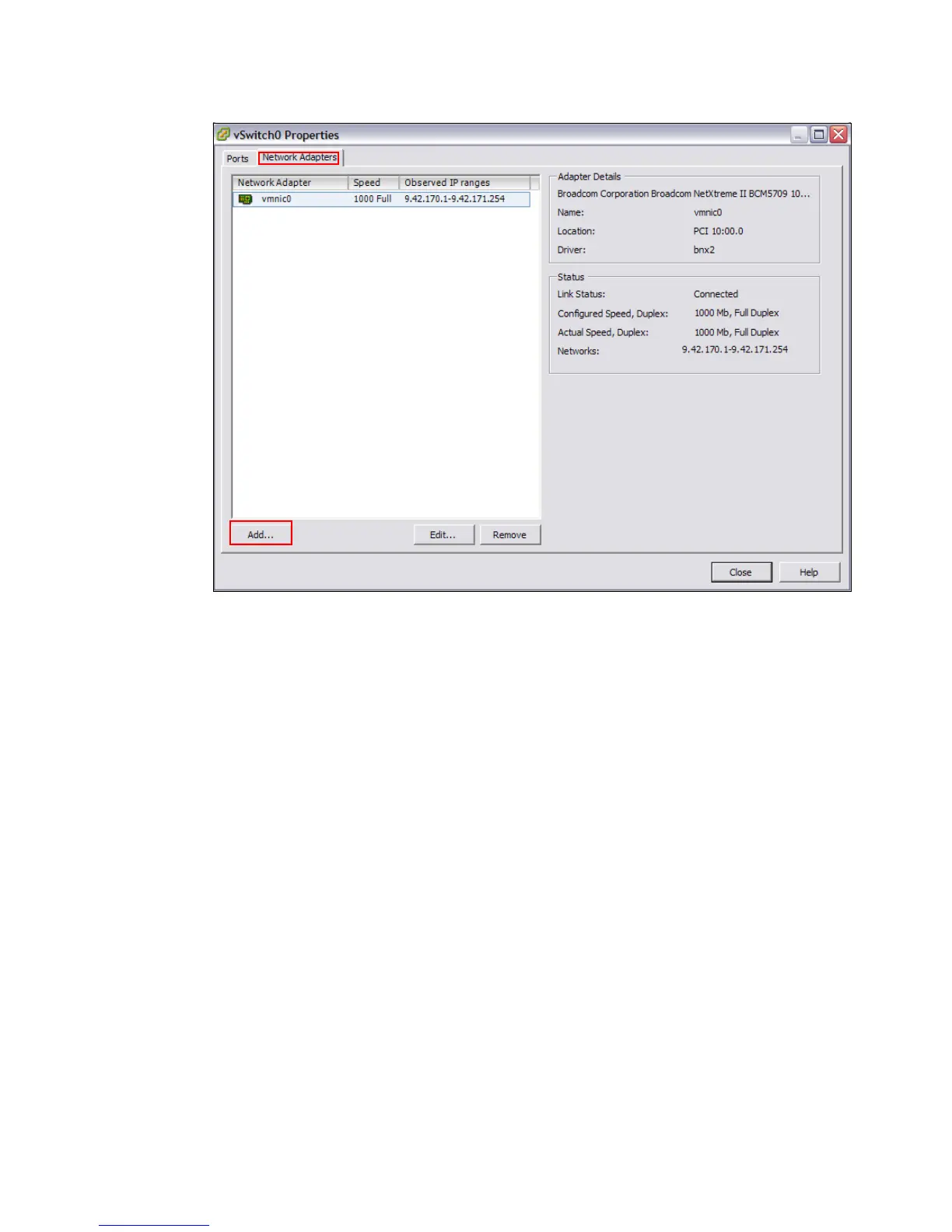

Figure 22-65 Adding Network Adapters

3. Add vmnic1, for example (this is the next adapter), and click Next  Next  Finish. See

Figure 22-66 on page 717.
