VMware ESX Server Storage Configuration with DS3500.fm Draft Document for Review March 28, 2011 12:24

720 IBM System Storage DS3500: Introduction and Implementation Guide

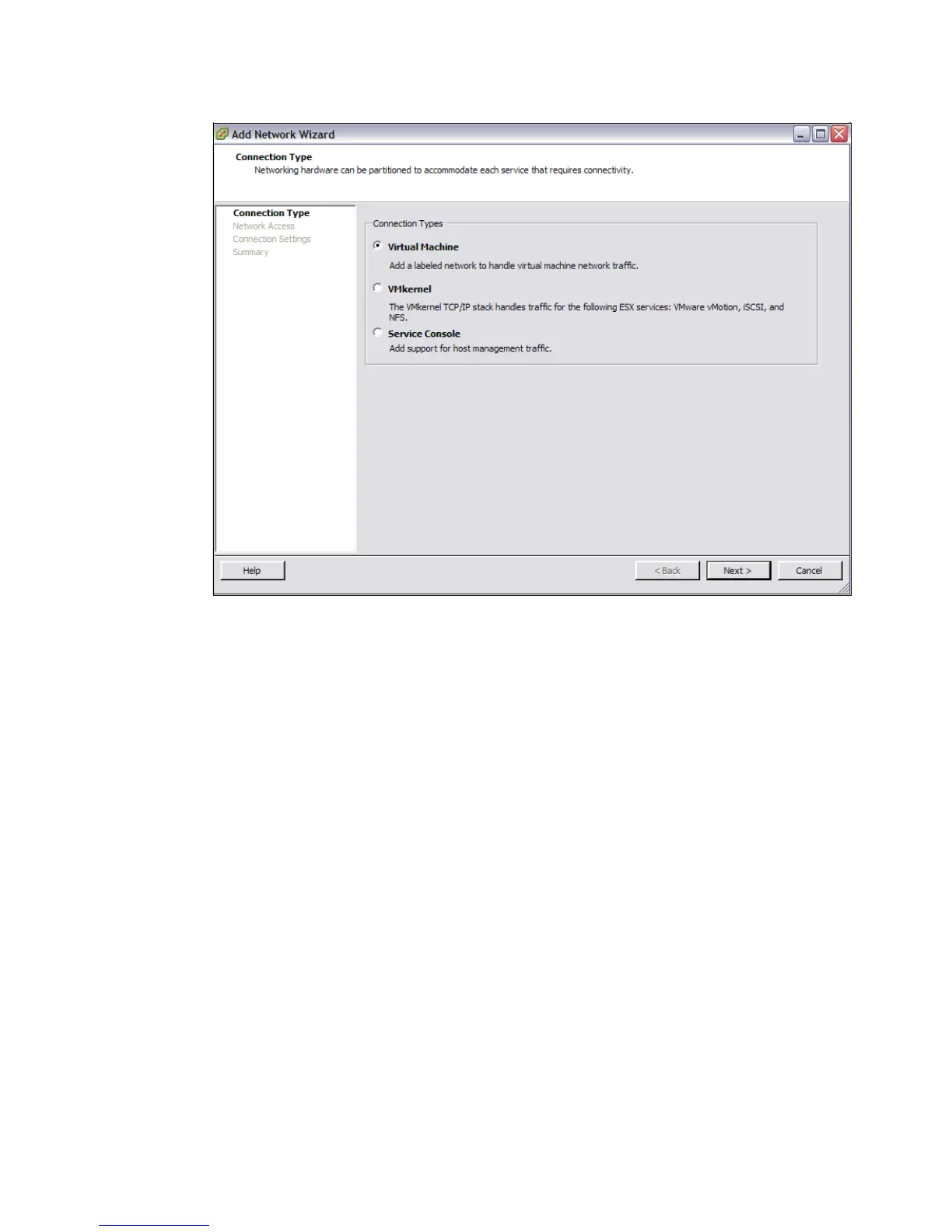

Figure 22-69 Connection Type

3. Pick one of the remaining LAN adapters (in this case vmnic0), as shown in Figure 22-70

on page 721. Click Next.
