IBM System x3550 M5 Type 5463 - Page 157

Note: Use the T8 torx wedge to remove the screws.
5. Slightly side the EIA bracket to the right; then, remove it from the chassis.
T8 torx wrench

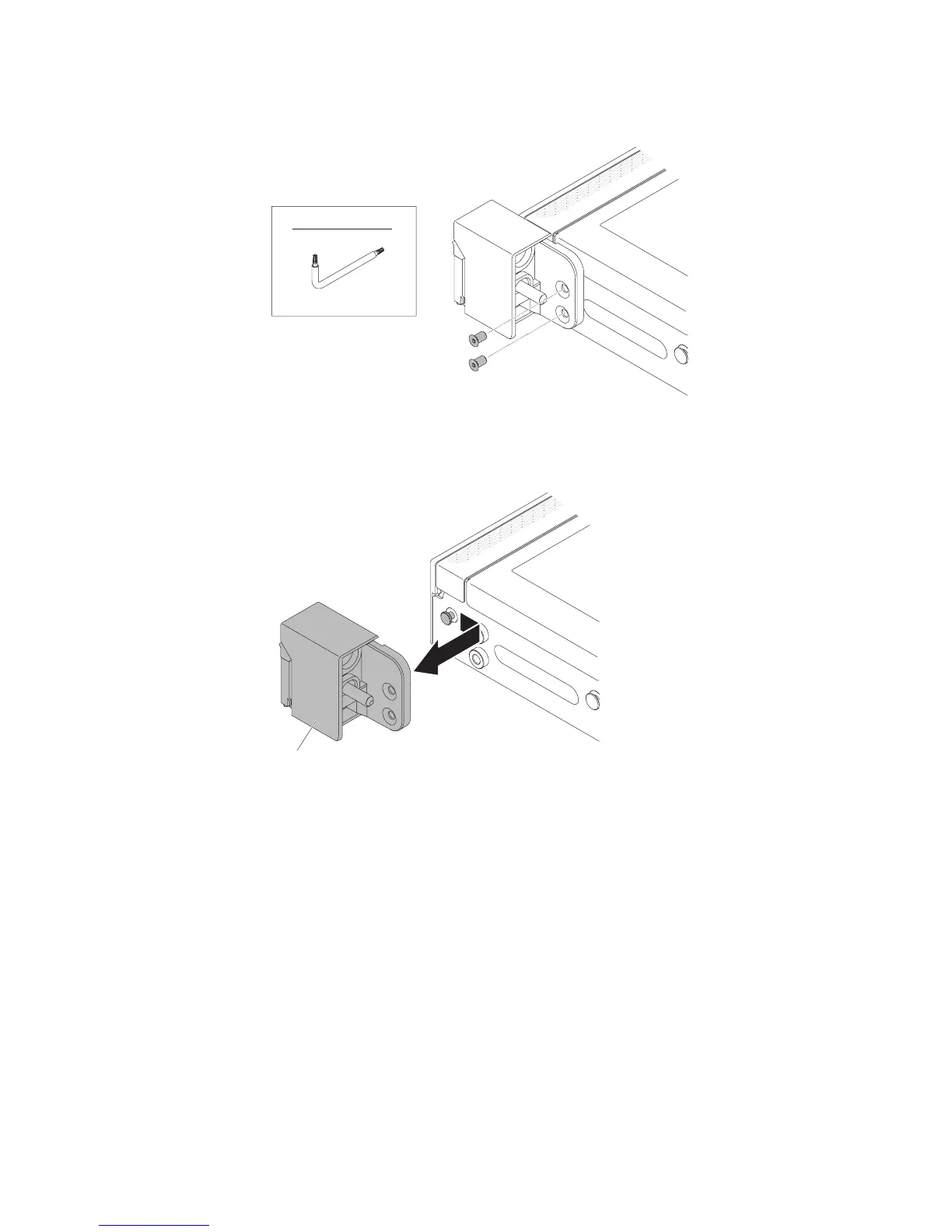

Figure 49. Screw removal
EIA bracket
Figure 50. EIA bracket removal
Chapter 5. Removing and replacing components 141
