IBM System x3550 M5 Type 5463 User Manual

System-board internal connectors

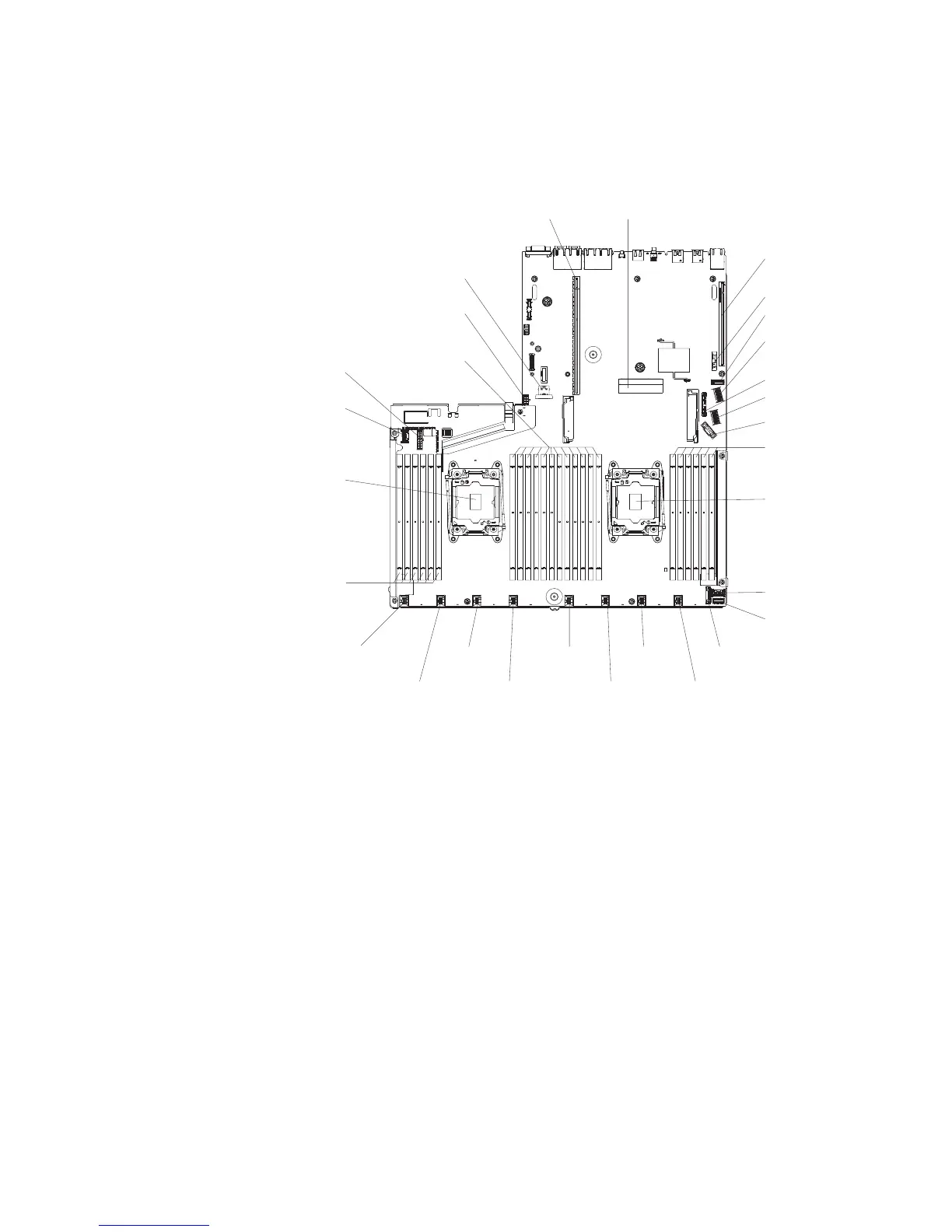

The following illustration shows the internal connectors on the system board.
System-board external connectors
The following illustration shows the external connectors on the system board.
Battery
Fan 8
connector
Operator information
panel connector
Fan 7
connector
Fan 6
connector
Fan 5
connector
Fan 4
connector
Fan 3
connector
Fan 2
connector
Fan 1
connector
PCI riser-card
assembly
connector 1
PCI riser-card
assembly
connector 2
Microprocessor 2
Microprocessor 1
Front video
connector
LCD display
panel connector
Front USB
connector
SATA/SAS cable
connector 0
DVD drive connector
SATA cable
connector 1
Spare SATA
connector
ServerRAID
connector
Graphic card
connector
Backplane
configuration
connector
Backplane
Power
connector
USB hypervisor
connector
DIMM 19-24
DIMM 7-18
DIMM 1- 6
Figure 22. System-board internal connectors
Chapter 1. The IBM System x3550 M5 server 27

IBM System x3550 M5 Type 5463 Specifications

General

Form Factor	1U rack
Memory Slots	24 DIMM slots
Processor	Intel Xeon E5-2600 v3/v4 product family
Memory	Up to 1.5TB DDR4
Storage	Up to 8x 2.5" HDD/SSD or 4x 3.5" HDD
RAID Support	RAID 0, 1, 10
Network Interface	Four integrated Gigabit Ethernet ports (10/100/1000 Mbps)
Expansion Slots	Up to 3 PCIe 3.0 slots
Power Supply	Dual redundant hot-swap 550W, 750W, or 900W
Operating Systems Supported	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
