IBM System x3550 M5 Type 5463 User Manual

– IMM hostname
– IMM dedicated MAC address
Note: Only the MAC address that is currently in use is displayed (dedicated
or shared)
– IMM shared MAC address
– IP v4 information
– IP v6 address
v System environmental information:
– Ambient temperature
– CPU temperature
– AC input voltage
– Estimated power consumption
Rear view

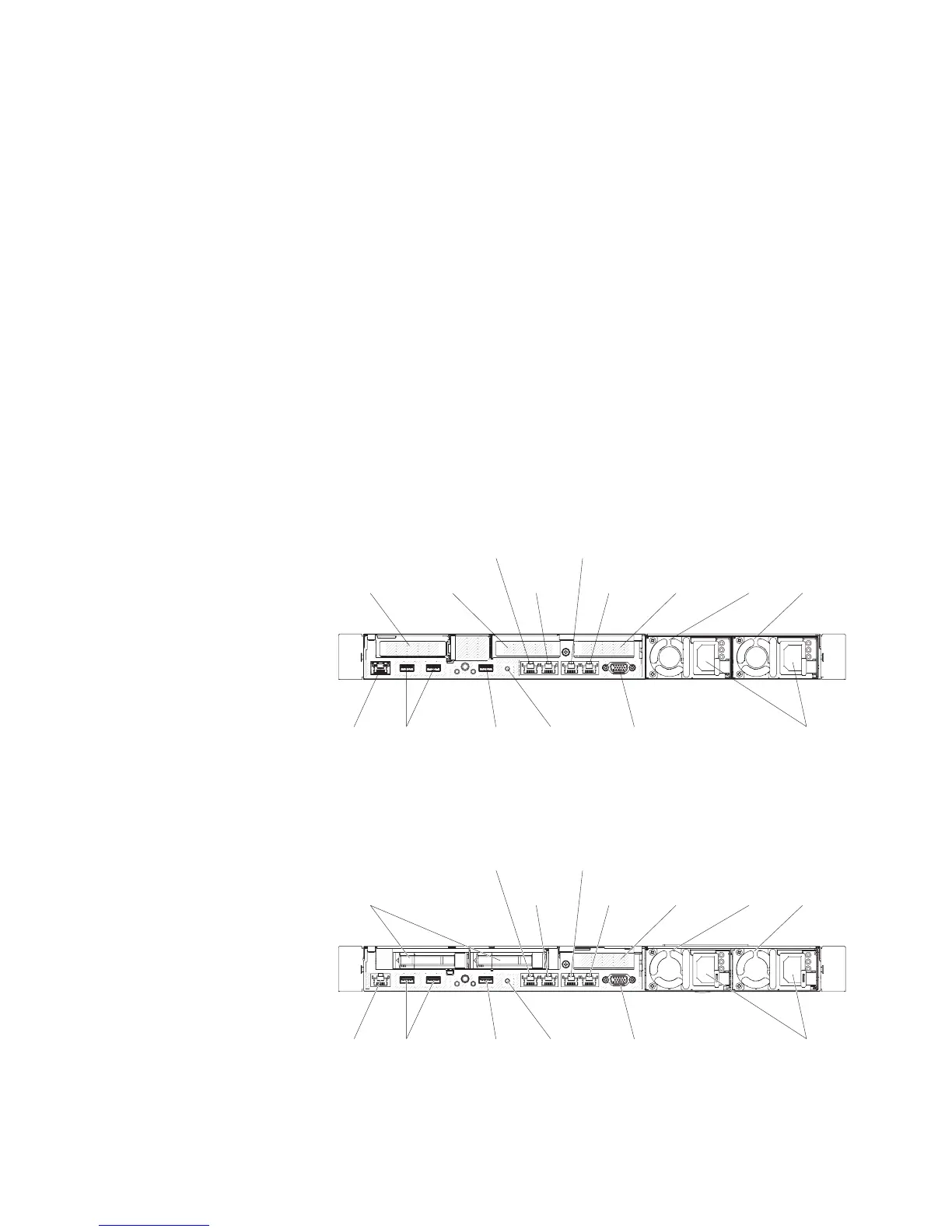

The following illustration shows the connectors on the rear of the server.
The server configuration may be of the following three:
USB 3.0
connectors
USB 2.0
connector
Video
connector
Power cord
connectors
Power
supply 1
Power
supply 2
Slot 3
PCI Express
(low-profile)
Slot 2
PCI Express
(low-profile)
Slot 1
PCI Express
(low-profile)
Ethernet
connector 4
Ethernet
connector 3
Ethernet
connector 2
Ethernet
connector 1
NMI
System management
(dedicated)
Figure 17. Rear view connector illustration when three low-profile PCI riser card assemblies
are installed.
USB 3.0
connectors
USB 2.0
connector
Video
connector
Power cord
connectors
Power
supply 1
Power
supply 2
Slot 3
PCI Express
low-profile
Ethernet
connector 4
Ethernet
connector 3
Ethernet
connector 2
Ethernet
connector 1
NMI
System management
(dedicated)
Rear 2.5 inch hot-swap
hard disk drives
Figure 18. Rear view connector illustration when two additional rear 2.5-inch hot-swap hard
disk drive is installed in server. The PCI riser card assembly for this server configuration is
low-profile.
Chapter 1. The IBM System x3550 M5 server 23

IBM System x3550 M5 Type 5463 Specifications

General

Form Factor	1U rack
Memory Slots	24 DIMM slots
Processor	Intel Xeon E5-2600 v3/v4 product family
Memory	Up to 1.5TB DDR4
Storage	Up to 8x 2.5" HDD/SSD or 4x 3.5" HDD
RAID Support	RAID 0, 1, 10
Network Interface	Four integrated Gigabit Ethernet ports (10/100/1000 Mbps)
Expansion Slots	Up to 3 PCIe 3.0 slots
Power Supply	Dual redundant hot-swap 550W, 750W, or 900W
Operating Systems Supported	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
