6. If you are instructed to return the front video connector assembly, follow all
packaging instructions, and use any packaging materials for shipping that are
supplied to you.
Replacing the front video connector assembly
Use this information to replace the front video connector assembly.
About this task
To install the front video connector assembly, complete the following steps:
Procedure
1. Read the safety information that begins on “Safety” on page vii and
“Installation guidelines” on page 122.
2. From inside the media cage, insert the front video connector assembly into the
holes on the cage; then, install the screws to secure the assembly to the cage.
Note: Refer to the illustration that applies to your particular server
configuration.

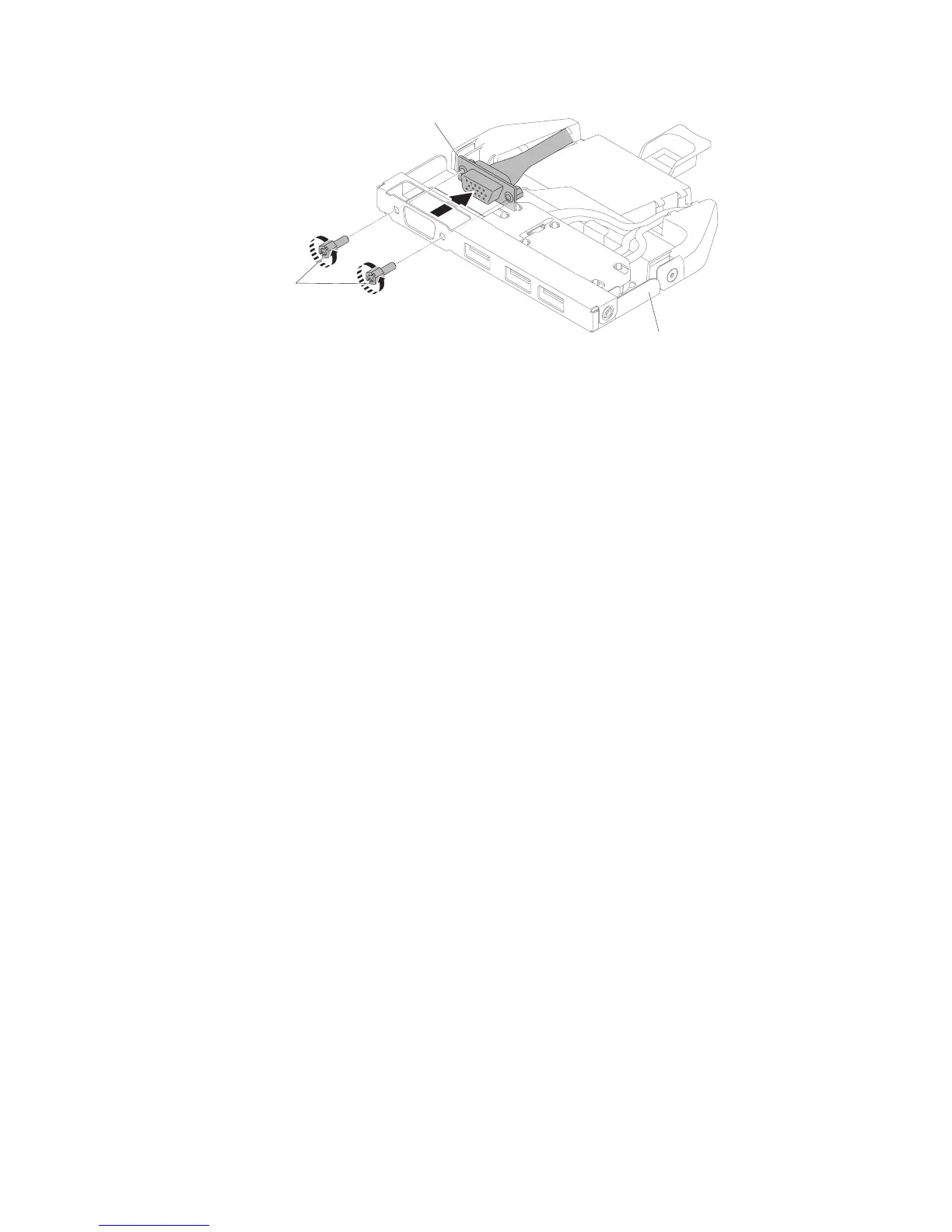

Eight 2.5-inch hot-swap or simple-swap hard disk drive server configuration:
Media cage
Video connector
Screws
Figure 153. Front video connector assembly removal for four 3.5-inch hot-swap or
simple-swap hard disk drive server configuration
232 IBM System x3550 M5 Type 5463: Installation and Service Guide
