IBM System x3550 M5 Type 5463 User Manual

Replacing the operator information panel assembly
Use this information to replace the operator information panel assembly.
About this task
To install the operator information panel, complete the following steps.
Procedure
1. Read the safety information that begins on “Safety” on page vii and
“Installation guidelines” on page 122.
2. For the eight 2.5-inch hot-swap or simple-swap and ten 2.5-inch hot-swap hard
disk drive server configuration, install the operator information panel assembly
into the media cage. For the four 3.5-inch" hot-swap or simple-swap hard disk
drive server configuration, go to step 4.
Note: Refer to the illustration that applies to your particular server
configuration.

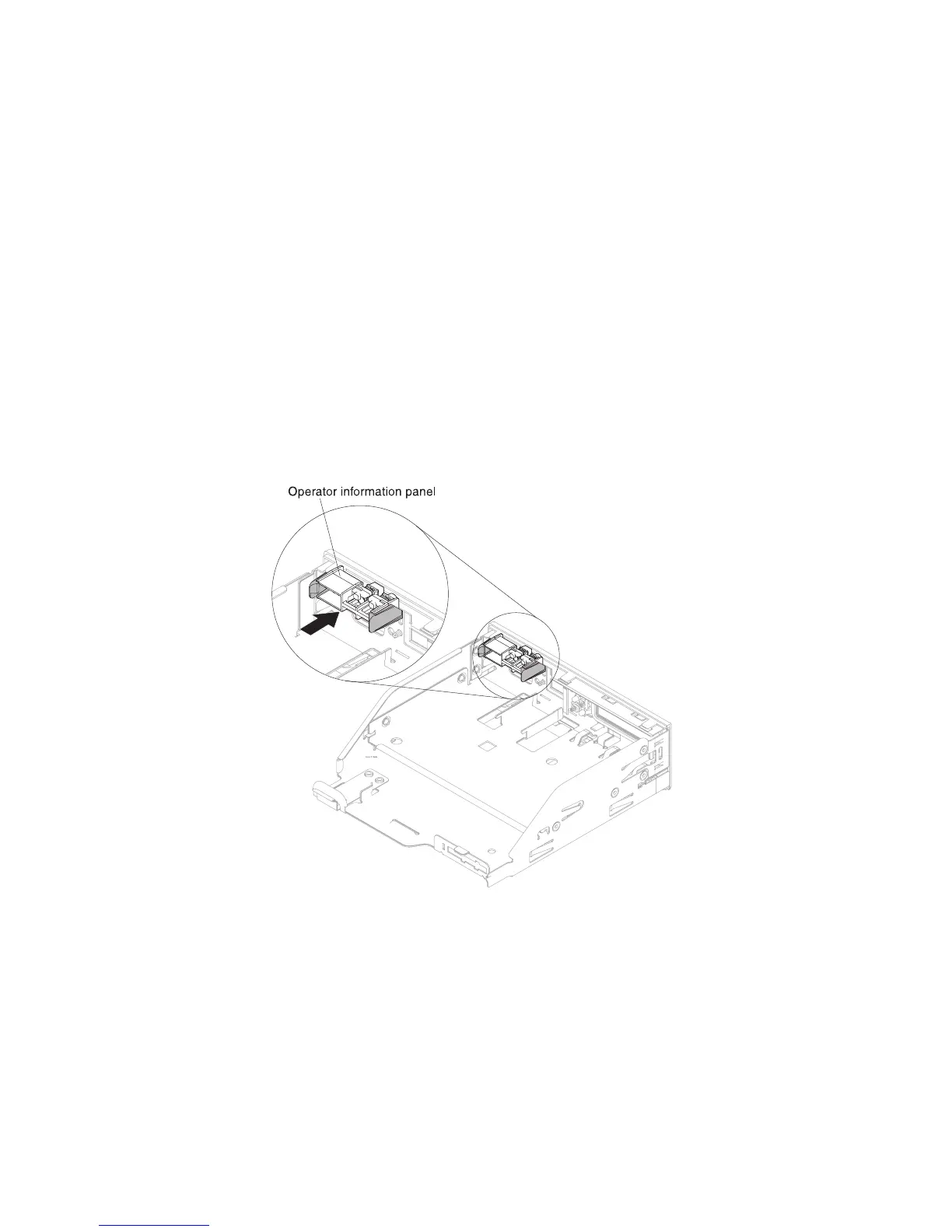

Eight 2.5-inch hot-swap or simple-swap hard disk drive server configuration:
Ten 2.5-inch hot-swap hard disk drive server configuration:
Figure 160. Operator information panel assembly installation into media cage for eight
2.5-inch hot-swap or simple-swap hard disk drive server configuration
Chapter 5. Removing and replacing components 237
