3. Carefully push the media cage back into the chassis (see “Replacing the media
cage” on page 224). Remember to reconnect the cables that were removed from
the system board.
4. For the four 3.5-inch hot-swap or simple-swap hard disk drive server
configuration, slide the operator information panel into the chassis from the
inside the server; then, reconnect the operator information panel assembly cable
to the system board.

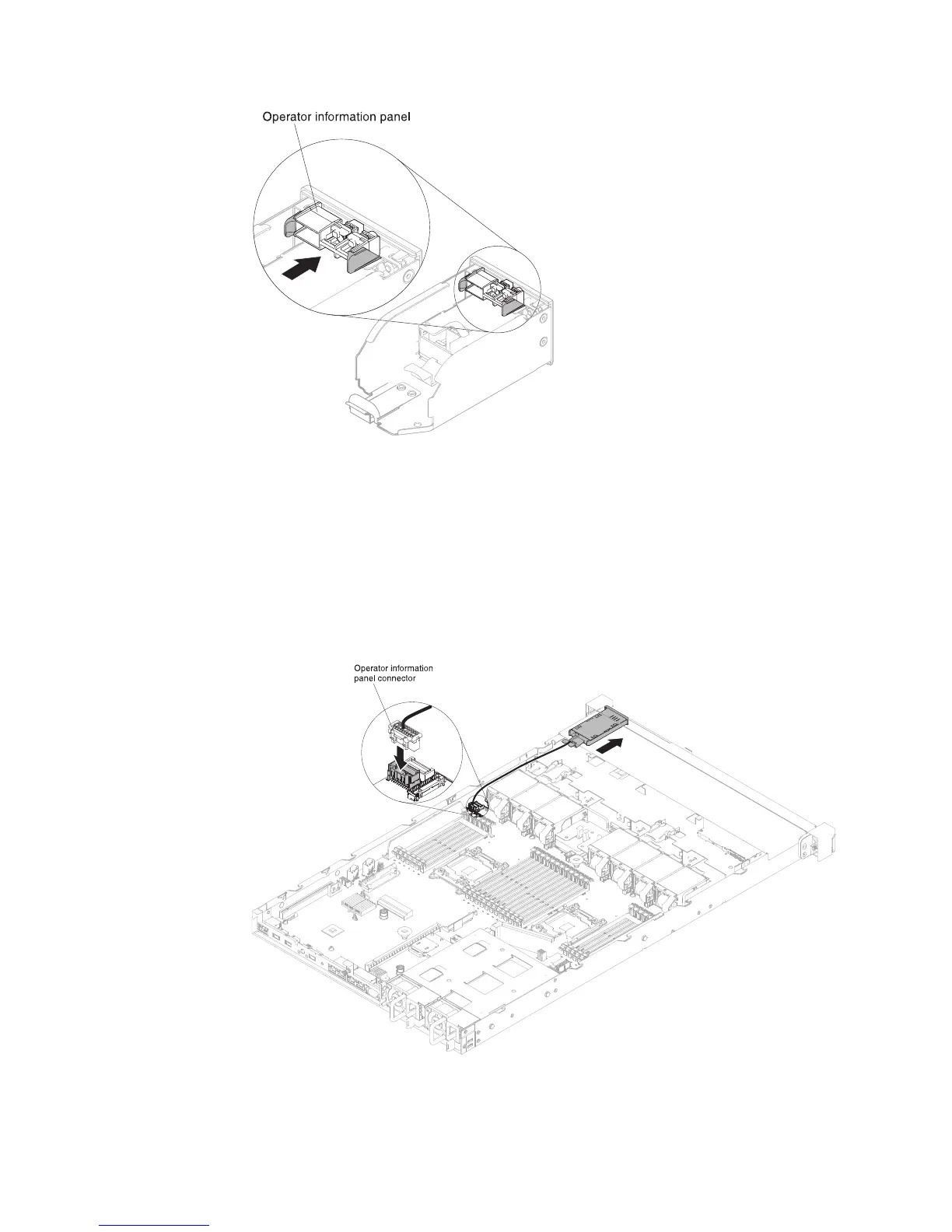

Figure 161. Operator information panel assembly installation into media cage for ten 2.5-inch
hot-swap hard disk drive server configuration
Figure 162. Operator information panel assembly installation for four 3.5-inch hot-swap or
simple-swap hard disk drive server configuration
238 IBM System x3550 M5 Type 5463: Installation and Service Guide
