For the eight 2.5-inch hot-swap server configuration, it will also come with a LCD
operating panel assembly, which displays a current list of errors reported by the
system and other information. See the “LCD operating panel assembly” on page 21
for more information about the LCD operating panel assembly.
Note: The LCD operating panel assembly is only installed in the eight 2.5-inch
hot-swap server configuration.
Power-supply LEDs
Use this information to view power-supply LEDs.
The following minimum configuration is required for the server to start:
v One microprocessor in microprocessor socket 1
v One 4 GB DIMM on the system board
v One power supply
v Power cord
v Six cooling fans (fan 1, 2, 3, 4, 5 and 7)
System
error
LED
System
locator
LED
Power
LED
DIMM 19-24
error LEDs
DIMM 7-18
error LEDs
DIMM 1- 6
error LEDs
Battery error LED
IMM2
heartbeat
LED
ServeRAID error LED
Microprocessor 1
error LED
Microprocessor 2
error LED
Fan 1
error LED
Fan 2
error LED
Fan 3
error LED
Fan 4
error LED
Fan 5
error LED
Fan 6
error LED
Fan 7
error LED
Fan 8
error LED

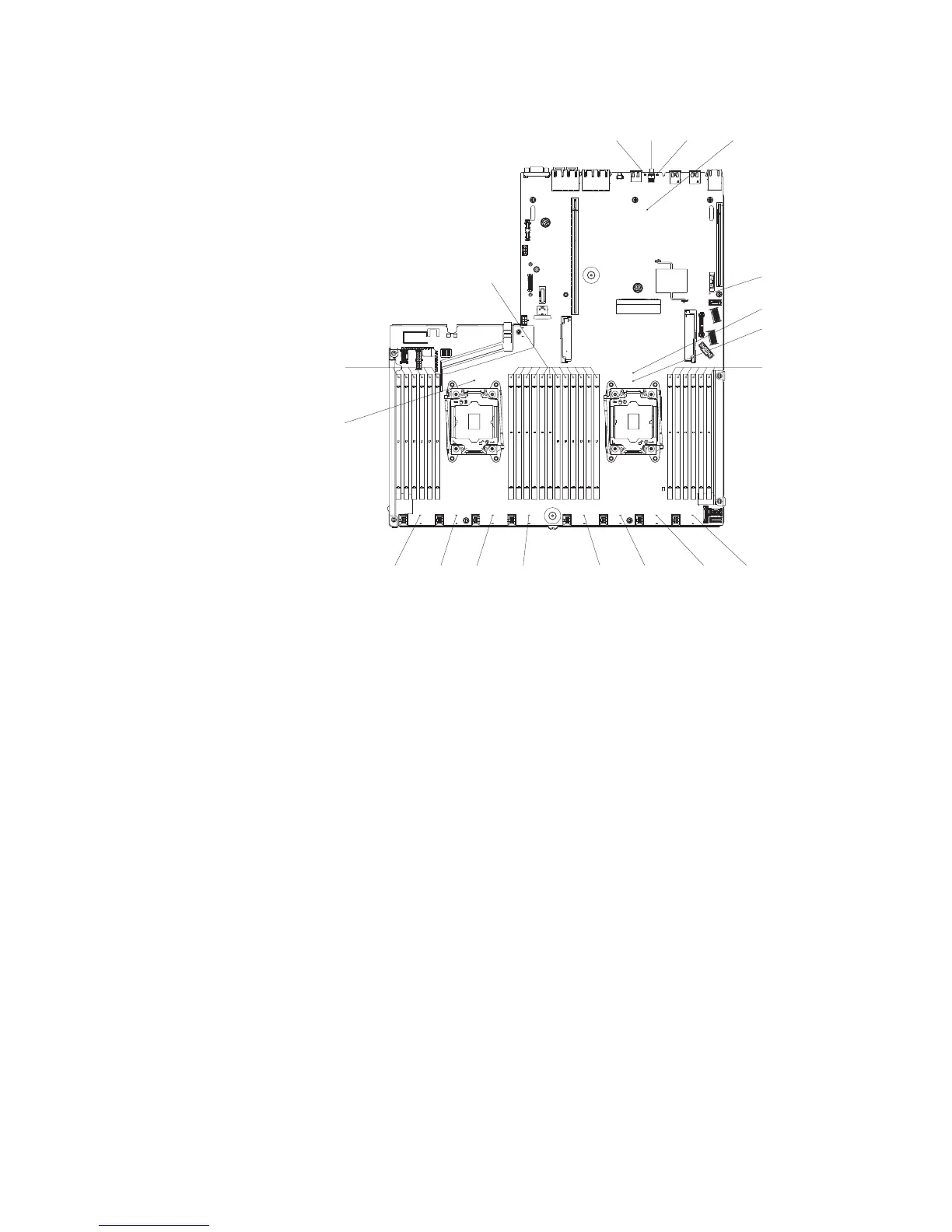

Figure 27. System board error LEDs
Chapter 3. Troubleshooting 69

IBM System x3550 M5 Type 5463 Specifications

General

Form Factor	1U rack
Memory Slots	24 DIMM slots
Processor	Intel Xeon E5-2600 v3/v4 product family
Memory	Up to 1.5TB DDR4
Storage	Up to 8x 2.5" HDD/SSD or 4x 3.5" HDD
RAID Support	RAID 0, 1, 10
Network Interface	Four integrated Gigabit Ethernet ports (10/100/1000 Mbps)
Expansion Slots	Up to 3 PCIe 3.0 slots
Power Supply	Dual redundant hot-swap 550W, 750W, or 900W
Operating Systems Supported	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
