3. Carefully push the media cage back into the chassis (see “Replacing the media
cage” on page 224). Remember to reconnect the cables that were removed from
the system board.
4. Reinstall the cover (see “Replacing the cover” on page 127).
5. Reconnect the power cords and any cables that you removed.
6. Slide the server into the rack.
7. Turn on the peripheral devices and the server.
Removing the front video connector assembly
Use this information to remove the front video connector assembly.
About this task
To remove the front video connector assembly, complete the following steps:
Procedure
1. Read the safety information that begins on “Safety” on page vii and
“Installation guidelines” on page 122.
2. Turn off the server and peripheral devices and disconnect the power cords and
all external cables, if necessary.
3. Remove the cover (see “Removing the cover” on page 126).
4. Remove the media cage (see “Removing the media cage” on page 222).
5. Loosen the screws that secure the front video connector assembly to the media
cage; then, remove the assembly from the media cage.
Note: Refer to the illustration that applies to your particular server
configuration.
Eight 2.5-inch hot-swap or simple-swap hard disk drive server configuration:

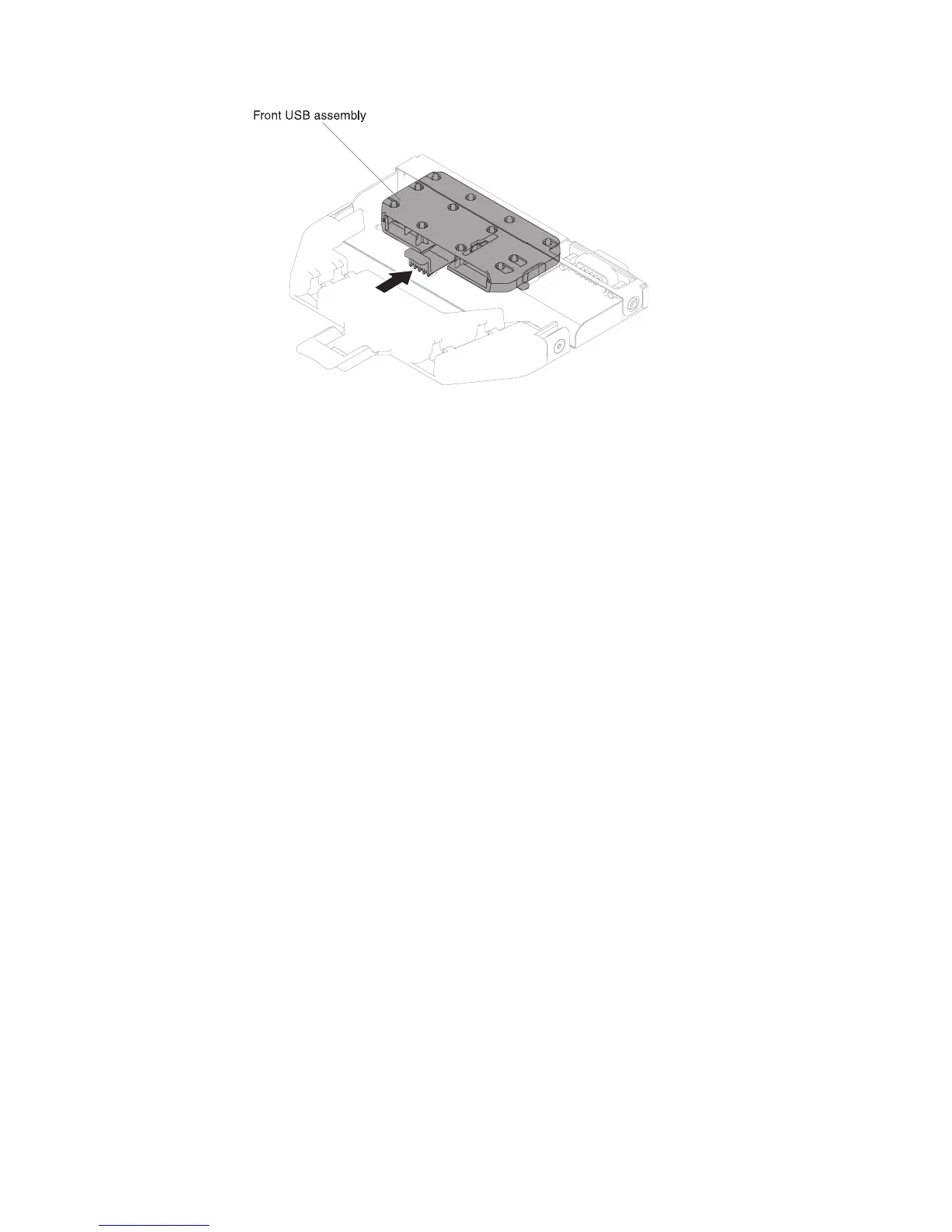

Figure 150. Front USB connector assembly installation for four 3.5-inch hot-swap or
simple-swap hard disk drive server configuration
230 IBM System x3550 M5 Type 5463: Installation and Service Guide
