Removing the ServeRAID adapter memory module
Use this information to remove the ServeRAID adapter memory module.
About this task
To remove the ServeRAID adapter memory module, complete the following steps:
Procedure
1. Read the safety information that begins on “Safety” on page vii and
“Installation guidelines” on page 122.
2. Turn off the server and peripheral devices and disconnect all power cords.
3. Remove the cover (see “Removing the cover” on page 126).
4. Remove the ServeRAID SAS/SATA controller (see “Removing a ServeRAID
SAS/SATA controller” on page 186).
5. Press the retention tabs away from the memory module; then, grasp the
memory module and lift to remove it from the connector on the ServeRAID
adapter.
Results
If you are instructed to return the memory module, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to
you.

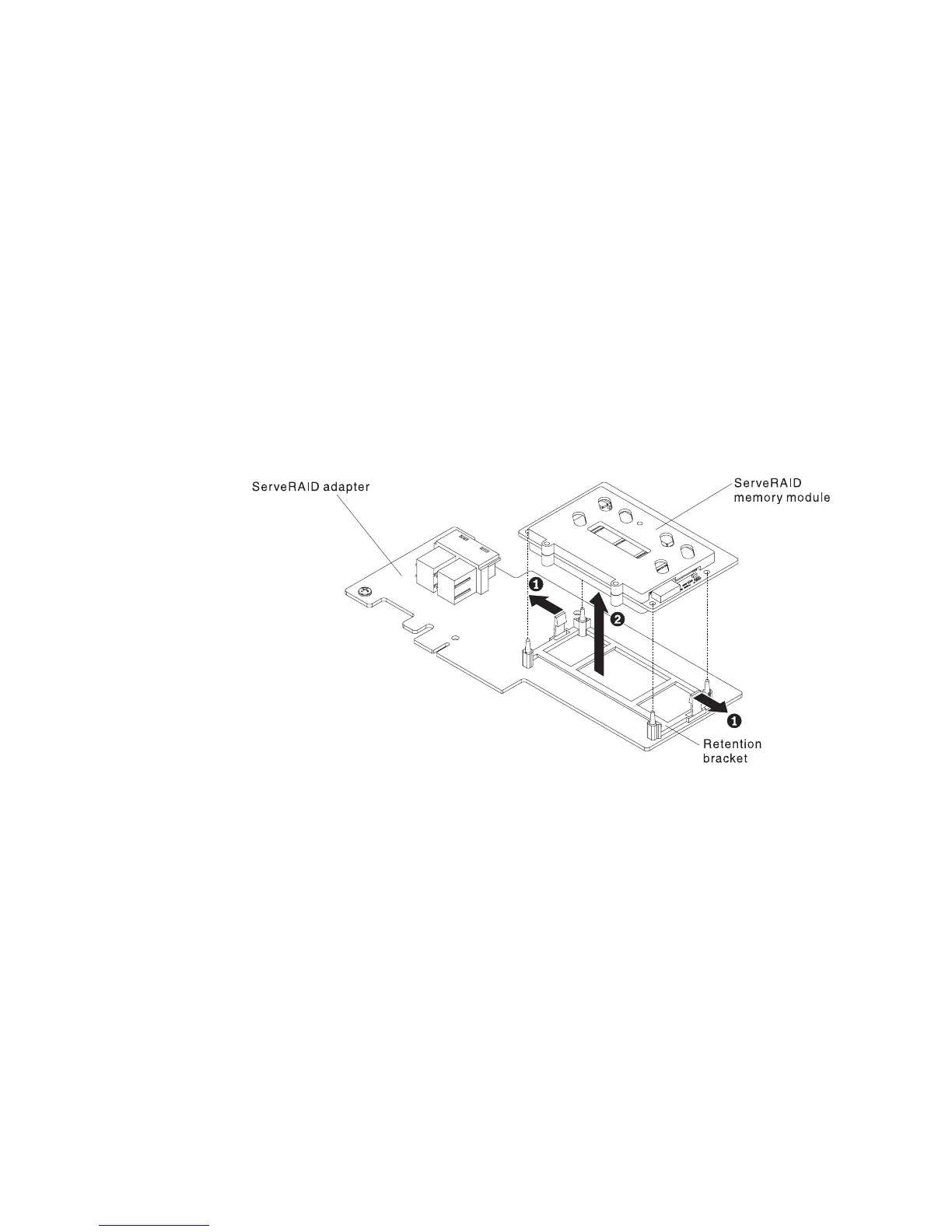

Figure 109. ServeRAID memory module removal
192 IBM System x3550 M5 Type 5463: Installation and Service Guide
