5. If you are instructed to return the front USB connector assembly, follow all
packaging instructions, and use any packaging materials for shipping that are
supplied to you.
Replacing the front USB connector assembly
Use this information to replace the front USB connector assembly.
About this task
To install the front USB connector assembly, complete the following steps:
Procedure
1. Read the safety information that begins on “Safety” on page vii and
“Installation guidelines” on page 122.
2. Insert the front USB connector assembly into the media cage.
Note: Refer to the illustration that applies to your particular server
configuration.
Eight 2.5-inch hot-swap or simple-swap hard disk drive server configuration:

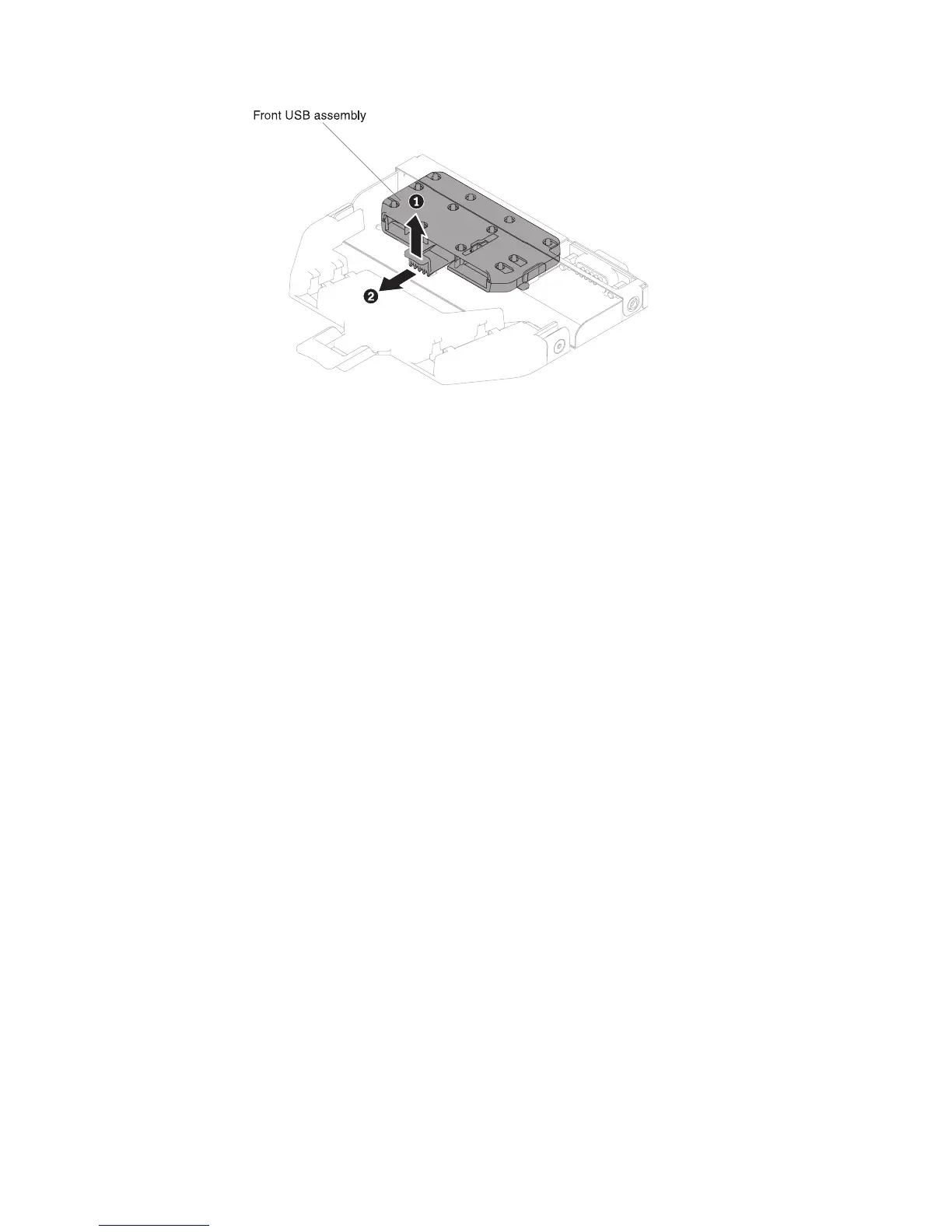

Figure 147. Front USB connector assembly removal for four 3.5-inch hot-swap or
simple-swap hard disk drive server configuration
228 IBM System x3550 M5 Type 5463: Installation and Service Guide
