Ten 2.5-inch hot-swap hard disk drive server configuration:
Four 3.5-inch hot-swap or simple-swap hard disk drive server configuration:

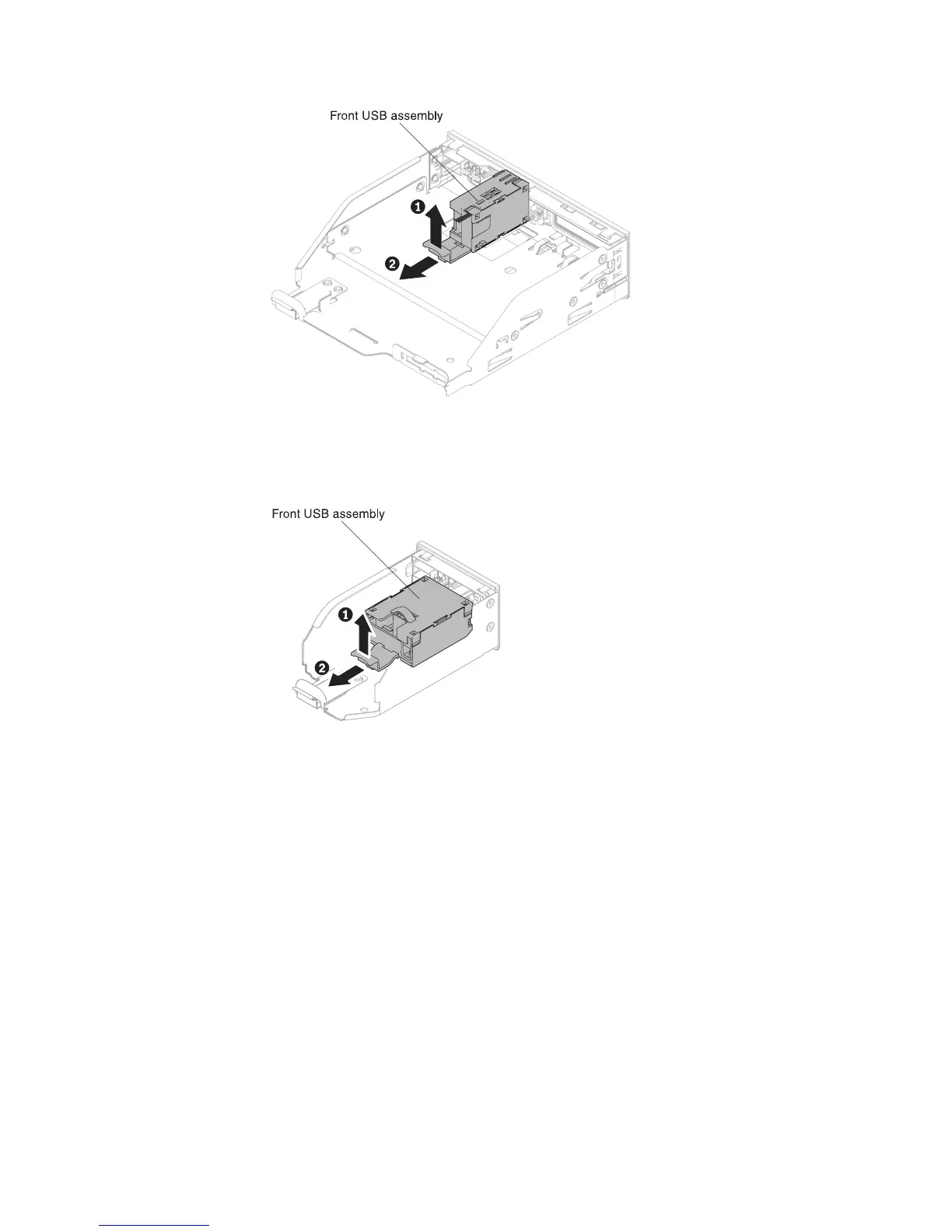

Figure 145. Front USB connector assembly removal for eight 2.5-inch hot-swap or
simple-swap hard disk drive server configuration
Figure 146. Front USB connector assembly removal for ten 2.5-inch hot-swap hard disk drive
server configuration
Chapter 5. Removing and replacing components 227
