5. Slide the drive retention clip from the side of the drive. Save the clip to use

when you install the replacement drive or replace the DVD drive filler panel.

6. Attach the drive retention clip to the side of the DVD drive filler panel that you

removed in step 4 on page 156.

7. Slide the DVD drive filler panel into the DVD drive bay until the DVD drive

filler panel clicks into place.

DVD drive

Release tab

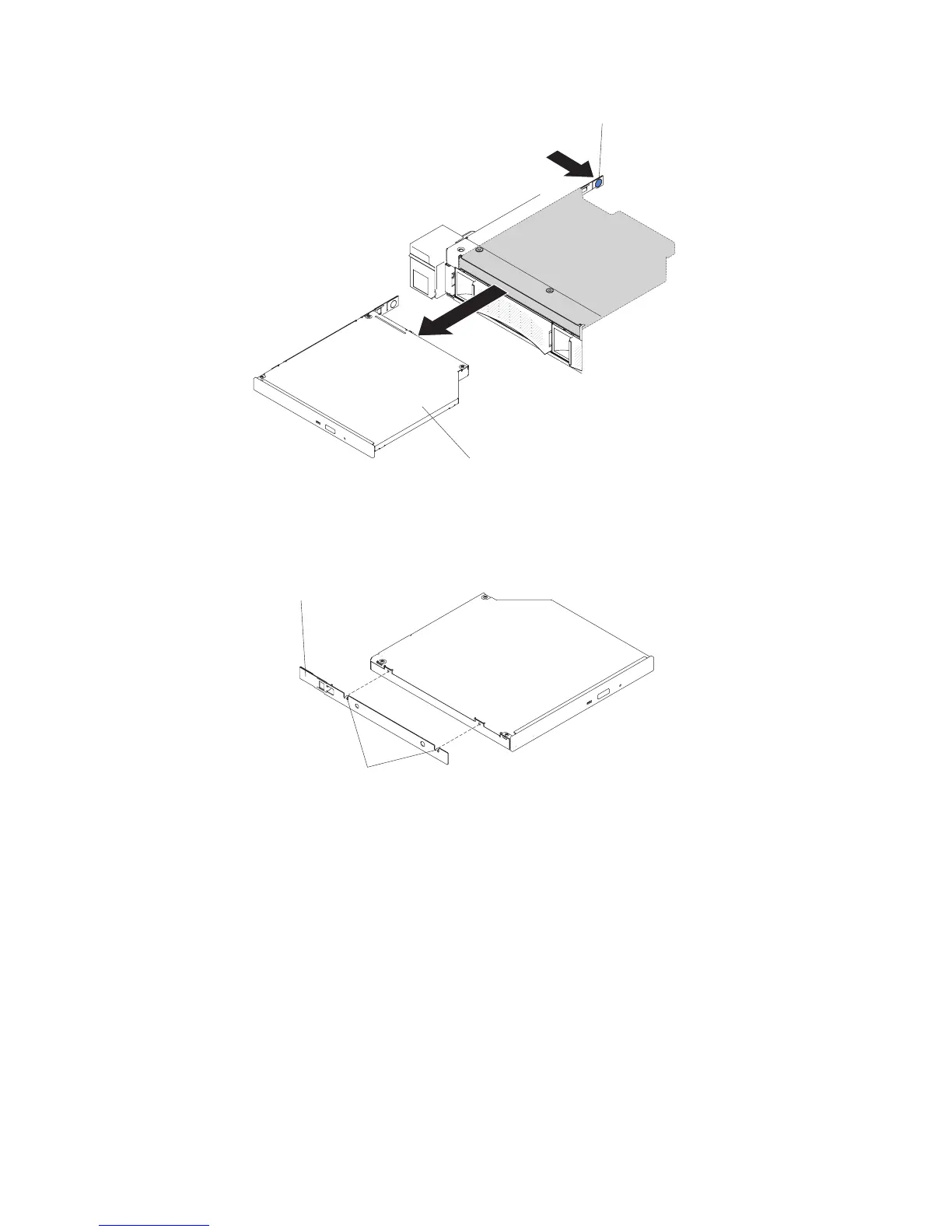

Figure 68. DVD drive removal for 3.5-inch hard disk drive server models

Alignment pins

Drive retention clip

Figure 69. DVD drive retention clip removal

154 IBM System x3550 M5 Type 5463: Installation and Service Guide
