4. Reinstall the hard disk drives and filler panels (see “Replacing simple-swap

hard disk drives” on page 146).

5. Reinstall the cover (see “Replacing the cover” on page 127).

6. Slide the server into the rack.

7. Reconnect the power cords and any cables that you removed.

8. Turn on the peripheral devices and the server.

SAS/SATA power cable

SAS/SATA signal

cable

SAS/SATA power

connector

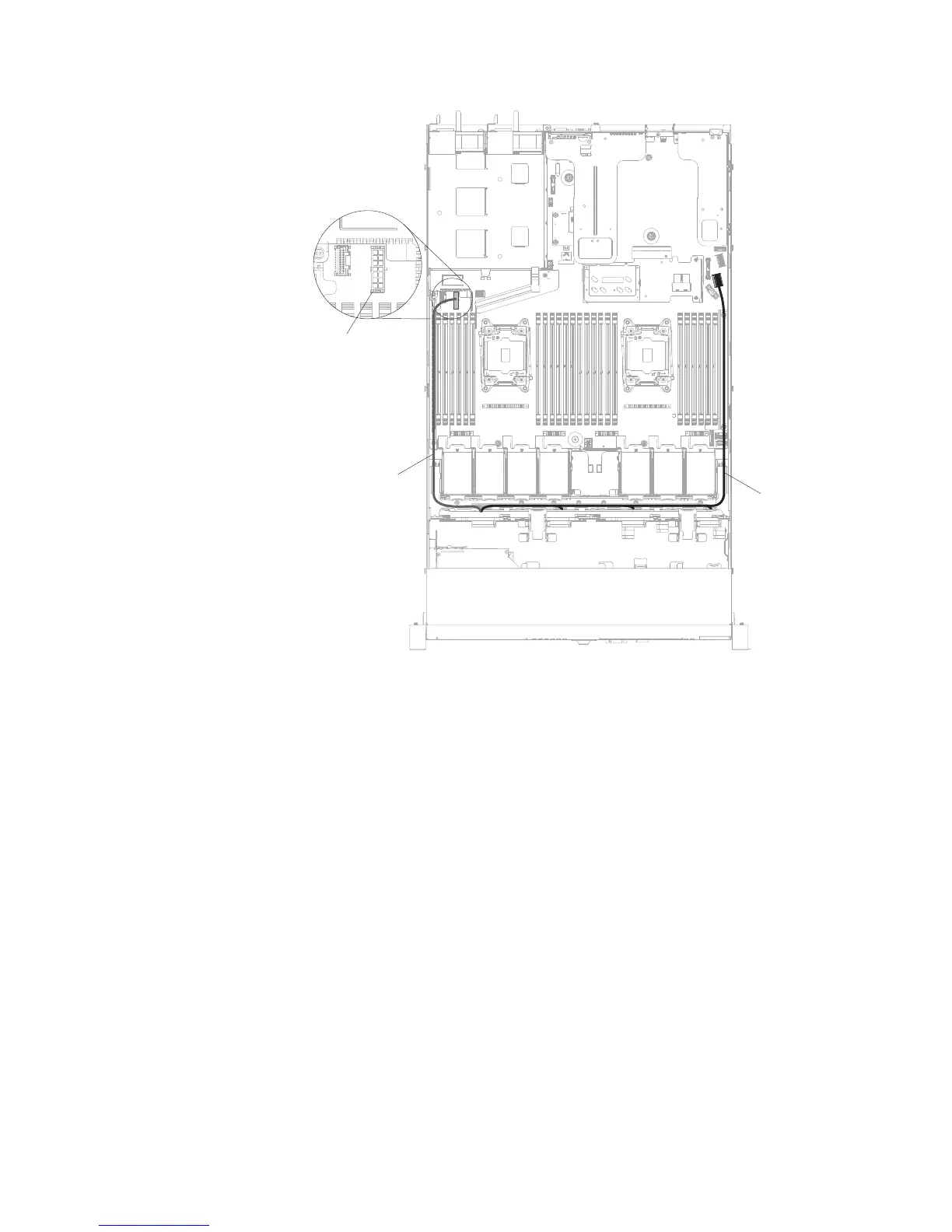

Figure 132. 4 x 3.5-inch simple-swap backplate assembly cable connection

Chapter 5. Removing and replacing components 215
