IBM System x3850 X5 Implementation Guide

246 IBM eX5 Implementation Guide

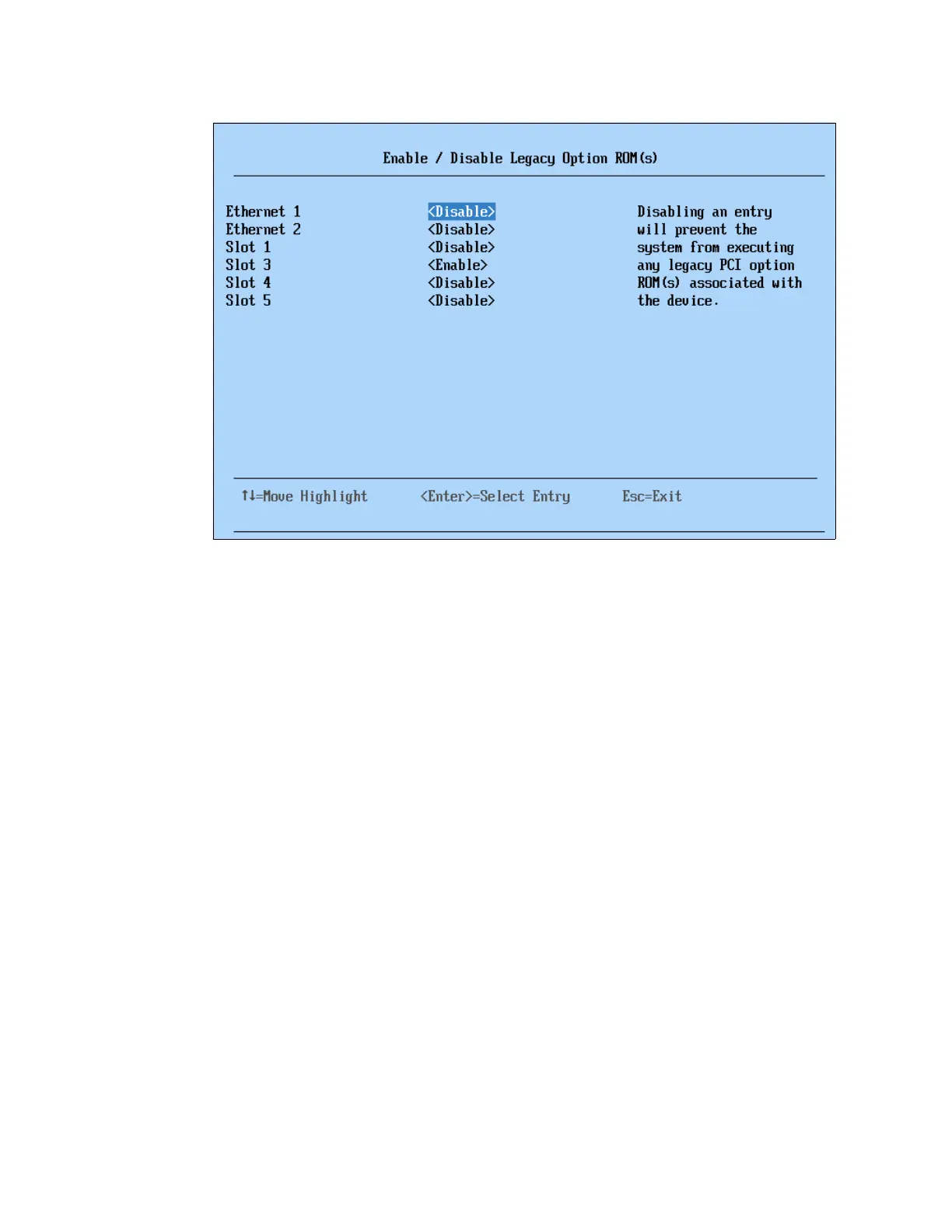

Figure 6-20 Legacy option ROM states
When booting from SAN with multiple paths for redundancy, you will need to enable the
legacy option ROM for both HBAs.
The default UEFI mode
On the x3850 X5, you can sequence the order that the UEFI will search the various attached
devices to locate a boot device. You can shorten the time that it takes to perform the search
by moving the adapter that contains the boot device to the top of the list.
In UEFI mode, PXE boot can be disabled for the onboard network interface card (NIC) ports
through F1-Setup by selecting System Settings  Network  PXE Configuration and then
by selecting the port on which you want to disable PXE boot. Figure 6-21 on page 247 shows
the panel that you will see to disable PXE boot on one of the two onboard network ports.

IBM System x3850 X5 Specifications

General

Processor Cores	Up to 10 cores per processor
Chipset	Intel 7500
Hard Drive Interface	SAS/SATA
Processor	Intel Xeon E7-4800 series, Intel Xeon E7-8800 series
Memory Slots	64 DIMM slots
Storage	Up to 16 x 2.5" hot-swap SAS/SATA HDDs or SSDs
RAID Support	RAID 0, 1, 5, 6, 10
Network Interface	Integrated Gigabit Ethernet
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Form Factor	4U Rack
