Chapter 8. IBM BladeCenter HX5 387

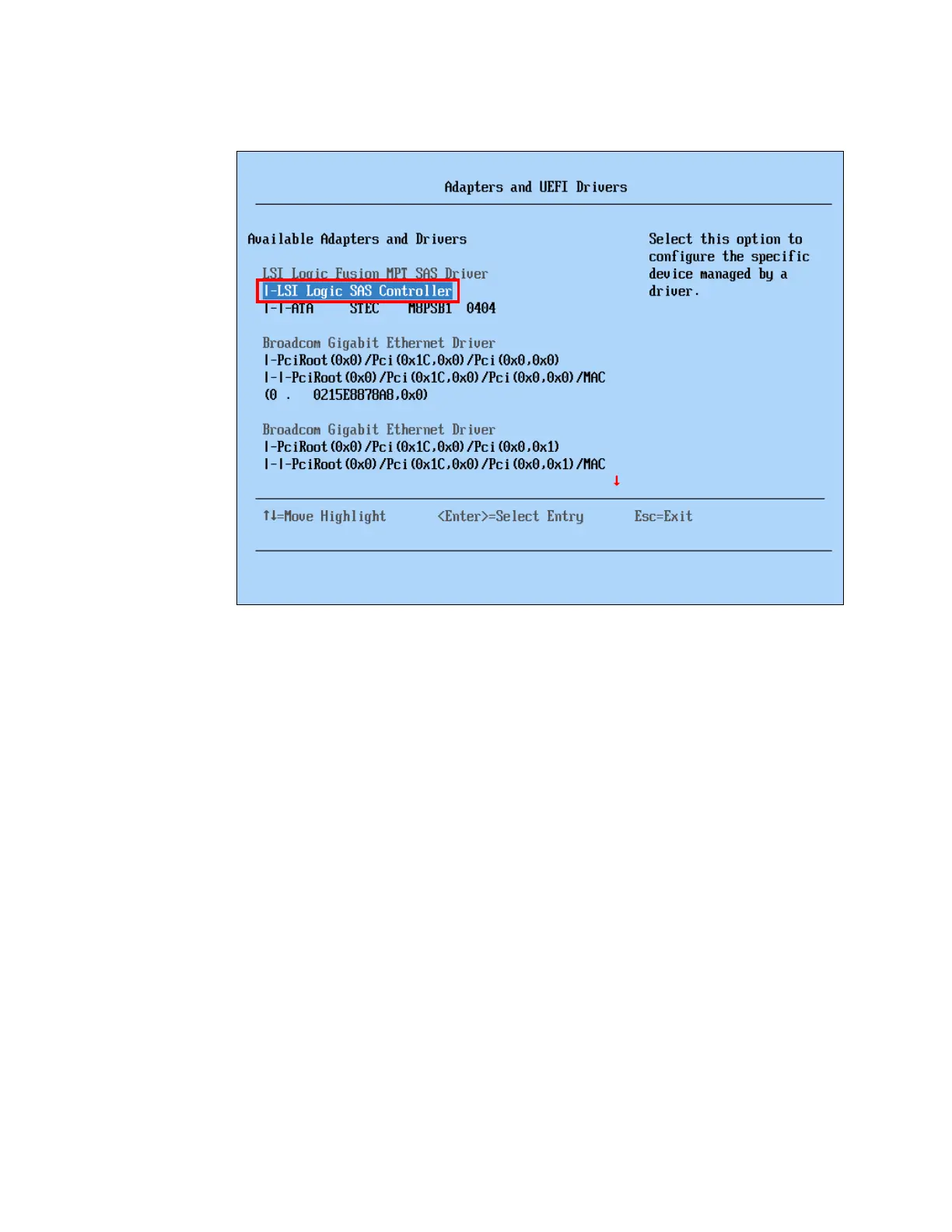

4. Select LSI Logic SAS Controller and press Enter, as shown in Figure 8-18.
Figure 8-18 Adapter list in UEFI
You can now create an array. We describe creating a RAID-1 array in 8.4.2, “Creating a
RAID-1 mirror using the LSI Setup Utility” on page 389.
Enabling Legacy Only mode and pressing Ctrl-C from boot
To see the LSI SAS BIOS option at boot time, you need enable the Legacy Only option in the
boot order. Understand that enabling this feature will add additional time to the boot
sequence. Follow these steps:
1. When the server performs POST, press F1 to go to the UEFI System Configuration and
Boot Management menu.
2. In the UEFI System Configuration and Boot Management menu, select Boot Manager, as
shown in Figure 8-19 on page 388.
