IBM System x3850 X5 Implementation Guide

Chapter 9. Management 489

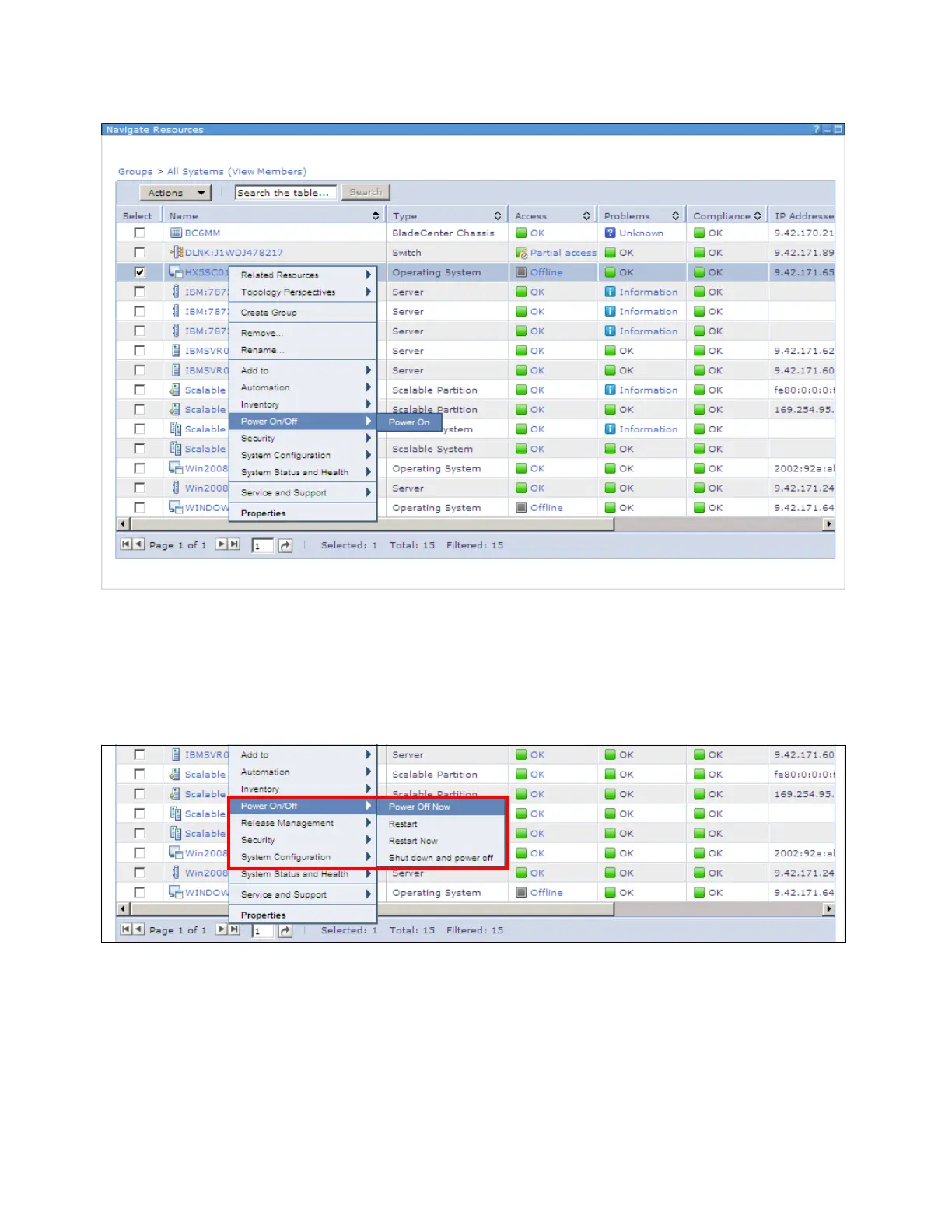

Figure 9-40 Powering on a complex via the operating system object
2. Click OK when the Task Launch Dialog pane appears to run the task immediately.
The system powers on normally. The power control menus within IBM Systems Director are
adaptive, which means that they change based on the power state of the system. Figure 9-41
shows the available options when the same system is powered on.
Figure 9-41 Power off controls for the operating system object
Viewing the installed hardware and software on a complex
Complete these steps to view information pertaining to the hardware and software
components that are installed in a complex:
1. Select Navigate Resources  All Systems in the Groups (View Members) view.
2. Right-click the respective scalable partition object, select Related Resources, and select
the hardware component for which you want to view the information.

IBM System x3850 X5 Specifications

General

Processor Cores	Up to 10 cores per processor
Chipset	Intel 7500
Hard Drive Interface	SAS/SATA
Processor	Intel Xeon E7-4800 series, Intel Xeon E7-8800 series
Memory Slots	64 DIMM slots
Storage	Up to 16 x 2.5" hot-swap SAS/SATA HDDs or SSDs
RAID Support	RAID 0, 1, 5, 6, 10
Network Interface	Integrated Gigabit Ethernet
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Form Factor	4U Rack
