IBM System x3850 X5 Implementation Guide

Chapter 9. Management 505

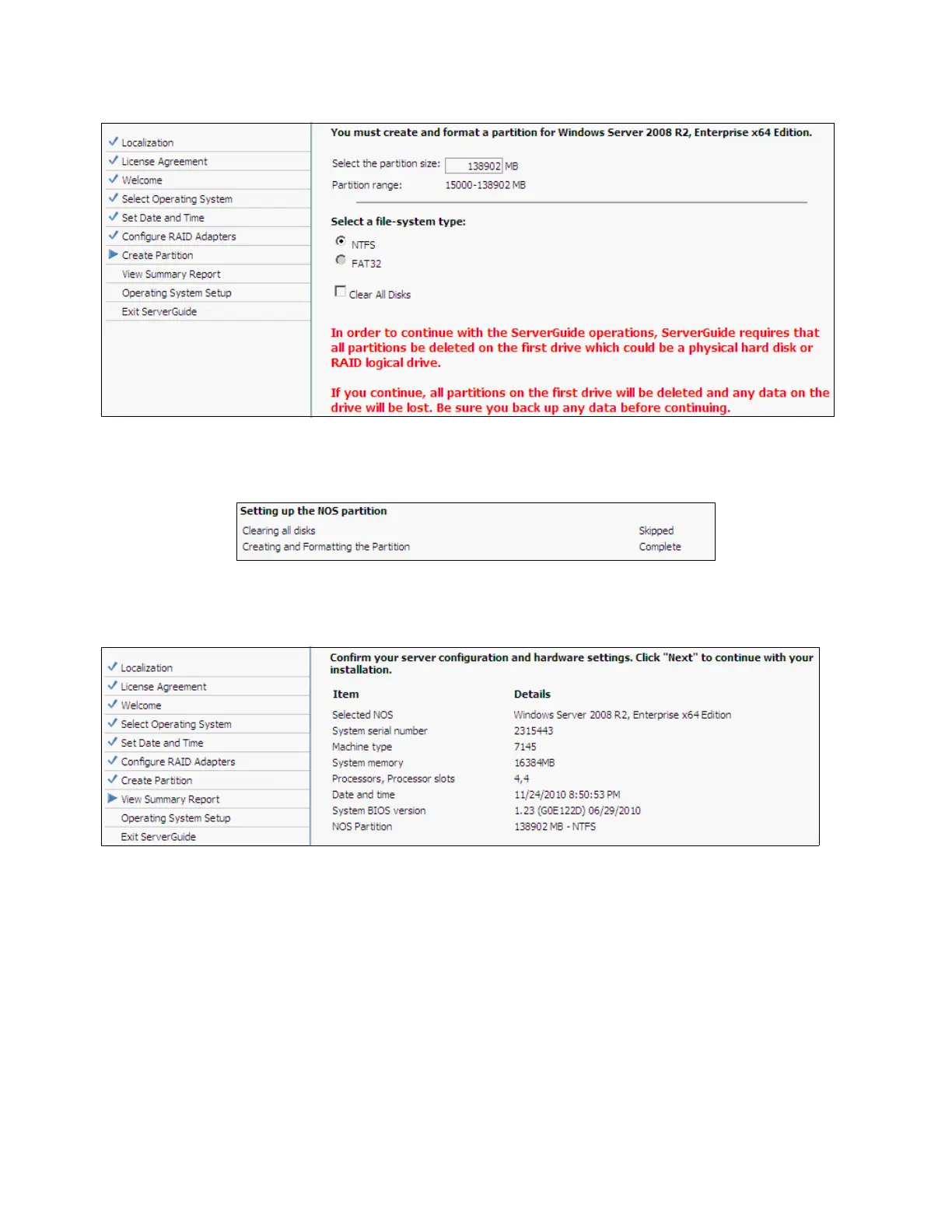

Figure 9-54 Selection for format and partition
15.When the process has completed, click Next, as shown in Figure 9-55.
Figure 9-55 Confirmation about completing the creation and formatting of the partition
16.Review the configuration, as shown in Figure 9-56. Click Next.
Figure 9-56 Summary of selections
17.ServerGuide copies the necessary files to the disk in preparation for the operating system
installation, as shown in Figure 9-57 on page 506.

IBM System x3850 X5 Specifications

General

Processor Cores	Up to 10 cores per processor
Chipset	Intel 7500
Hard Drive Interface	SAS/SATA
Processor	Intel Xeon E7-4800 series, Intel Xeon E7-8800 series
Memory Slots	64 DIMM slots
Storage	Up to 16 x 2.5" hot-swap SAS/SATA HDDs or SSDs
RAID Support	RAID 0, 1, 5, 6, 10
Network Interface	Integrated Gigabit Ethernet
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Form Factor	4U Rack
