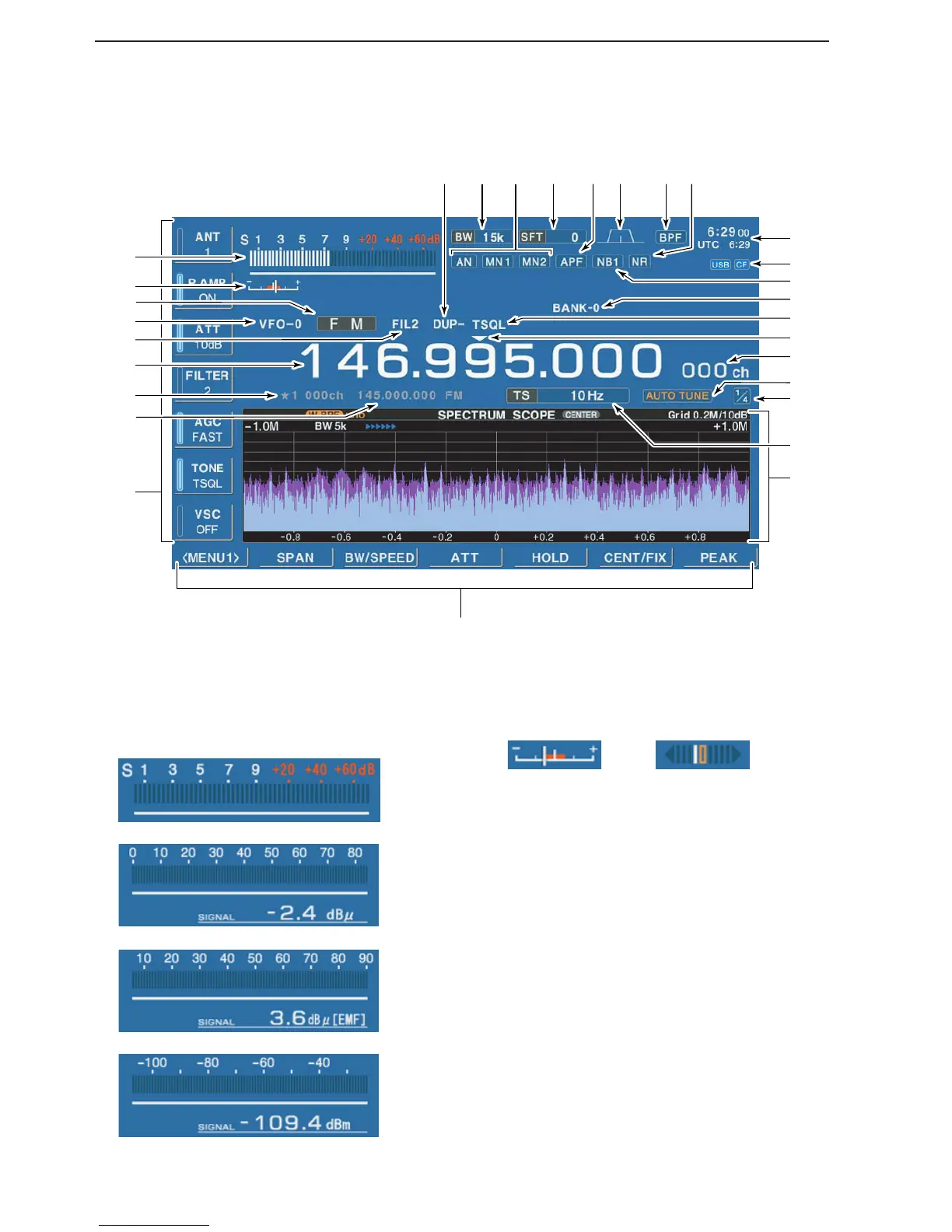

■ LCD display
q RSSI METER (p. 3-10)
Shows the received signal strength. Four meter
types, S, dBµ, dBµ(EMF) and dBm meters are se-
lectable.
w CENTER METER
Shows that the received signal is tuned to its center
frequency for FM/WFM or FSK modes.
e MODE INDICATOR (p. 3-7)
Shows the selected receive mode.
r VFO/MEMORY INDICATOR (pgs. 3-3, 7-3)
Indicates the selected VFO number (VFO-0 to VFO-
9) or memory mode.
t IF FILTER INDICATOR (p. 5-12)
Shows the selected IF filter number.
y FREQUENCY READOUTS
Shows the operating frequency.
u SELECT MEMORY CHANNEL INDICATOR (p. 8-12)
Indicates the displayed memory channel is set as a
select memory channel.
i MEMORY CHANNEL READOUTS
➥ Shows the selected memory channel contents in
VFO mode.
➥ Shows the VFO contents in memory mode.
• FM/WFM modes • FSK mode
• S-meter
• dBµ meter
• dBµ (EMF) meter
• dBm meter
