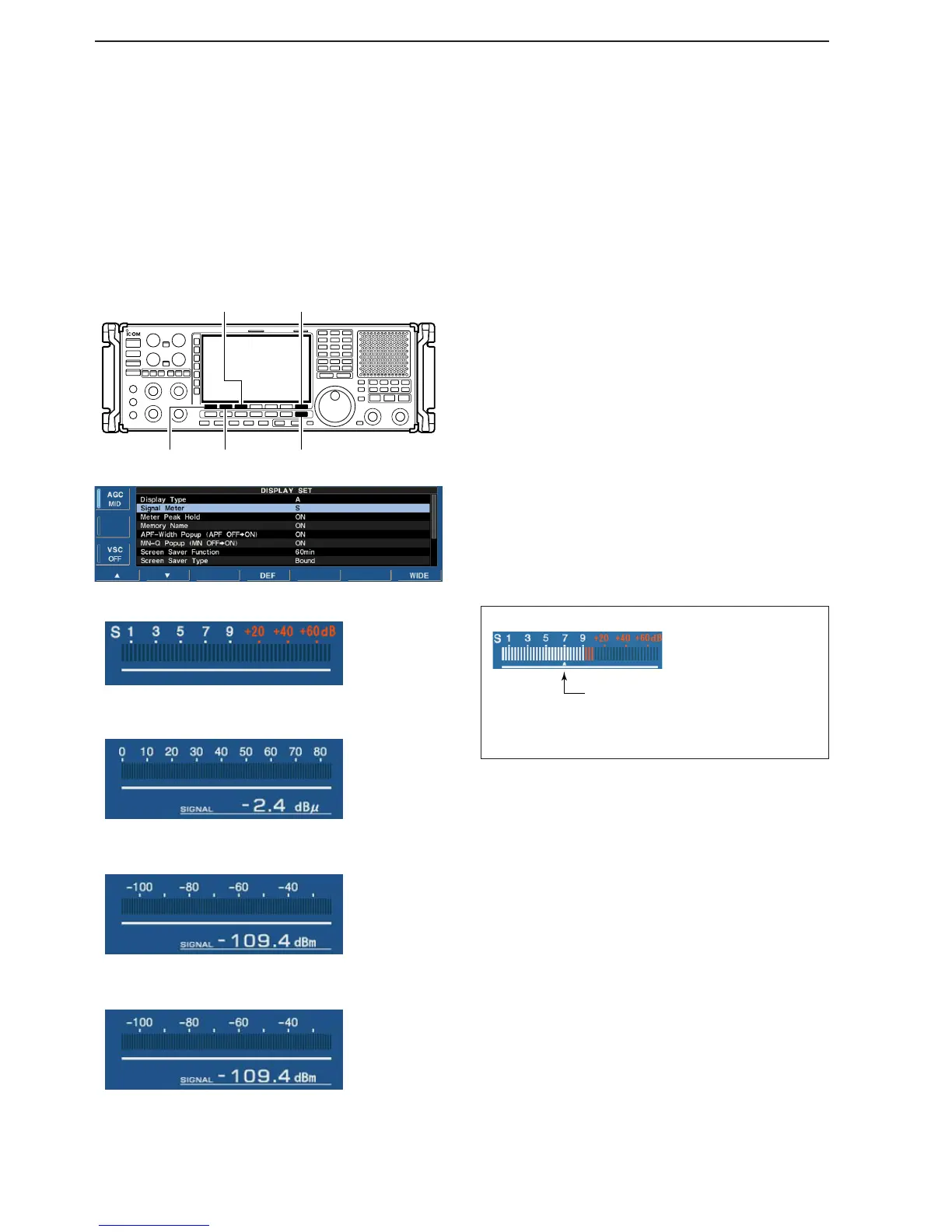

■ Meter indication selection
DD
Meter type selection
A total of 4 meter types are available in the IC-
R9500— S-meter, dBµ, dBµ(EMF) and dBm meters.
Follow the instructions below for the meter type selec-
tion.
q Push [EXIT/SET] several times to return to normal
screen, if necessary.
w Push [F-7•SET], then push [F-3•DISPLAY] to select
the display set mode.
e Push [F-1•Y] or [F-2•Z] to select “Signal Meter”
item.
r Rotate main dial to select the desired meter type
from “S,” “dBµ,” “dBµ(EMF)” and “dBm.”
t Push [EXIT/SET] to exit the display set mode.
•S meter
•dBµ meter
•dBµ[EMF] meter
• dBm meter
3-10
3
BASIC OPERATIONS
Signal meter squelch indicator
“∫” indicates the signal meter squelch level and
appears while [SQUELCH] control is rotating.
