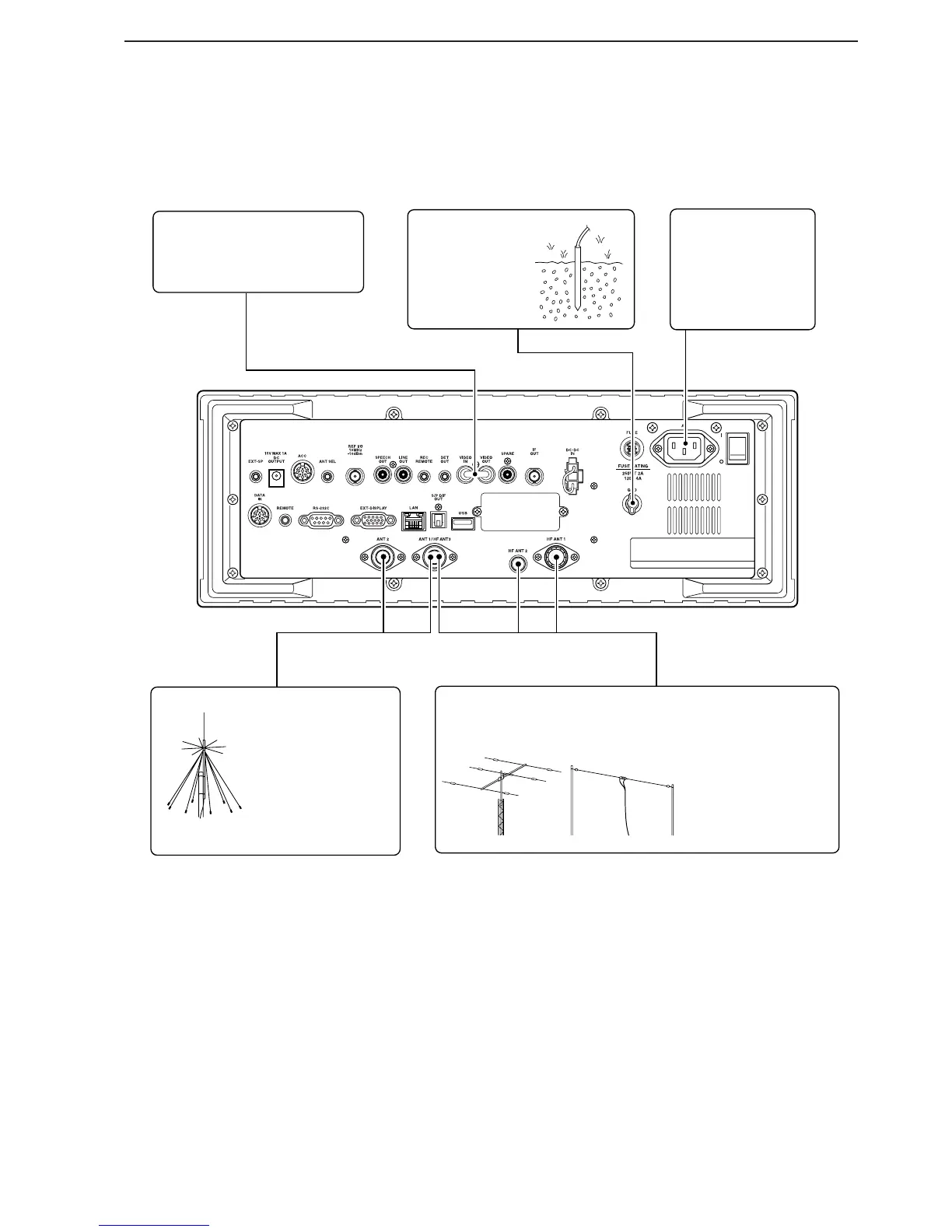

HF Antenna 1, 2, 3 (p. 2-3)Antenna 1, 2 (p. 2-3)
Connects the VHF,
UHF wide band anten-
nas.
ANT1: 30–1150 MHz,
ANT2: 1150–3335 MHz
The optional AH-7000 is available for 25
MHz to 1.3 GHz coverage.
Select the active antenna connector. (p.9-3)
[Example]: HF ANT1 for 1.8–18 MHz bands, HF ANT 2 for 21–28
bands, ANT3 for 50 MHz band.
Ground (p. 2-2)
Ground connection
AC outlet
R WARNING:
Use the supplied
AC power cable
only.
[VIDEO IN], [VIDEO OUT]
TV jumper cable must be con-
nected when internal TV tuner
and LCD are in use.
