■ Display set (Video) mode
This set mode is used to set the HSB (Hue,
Saturation, Brightness) color setting for video input or
output, etc.
NOTE: “Display set mode” is described on page 11-8.

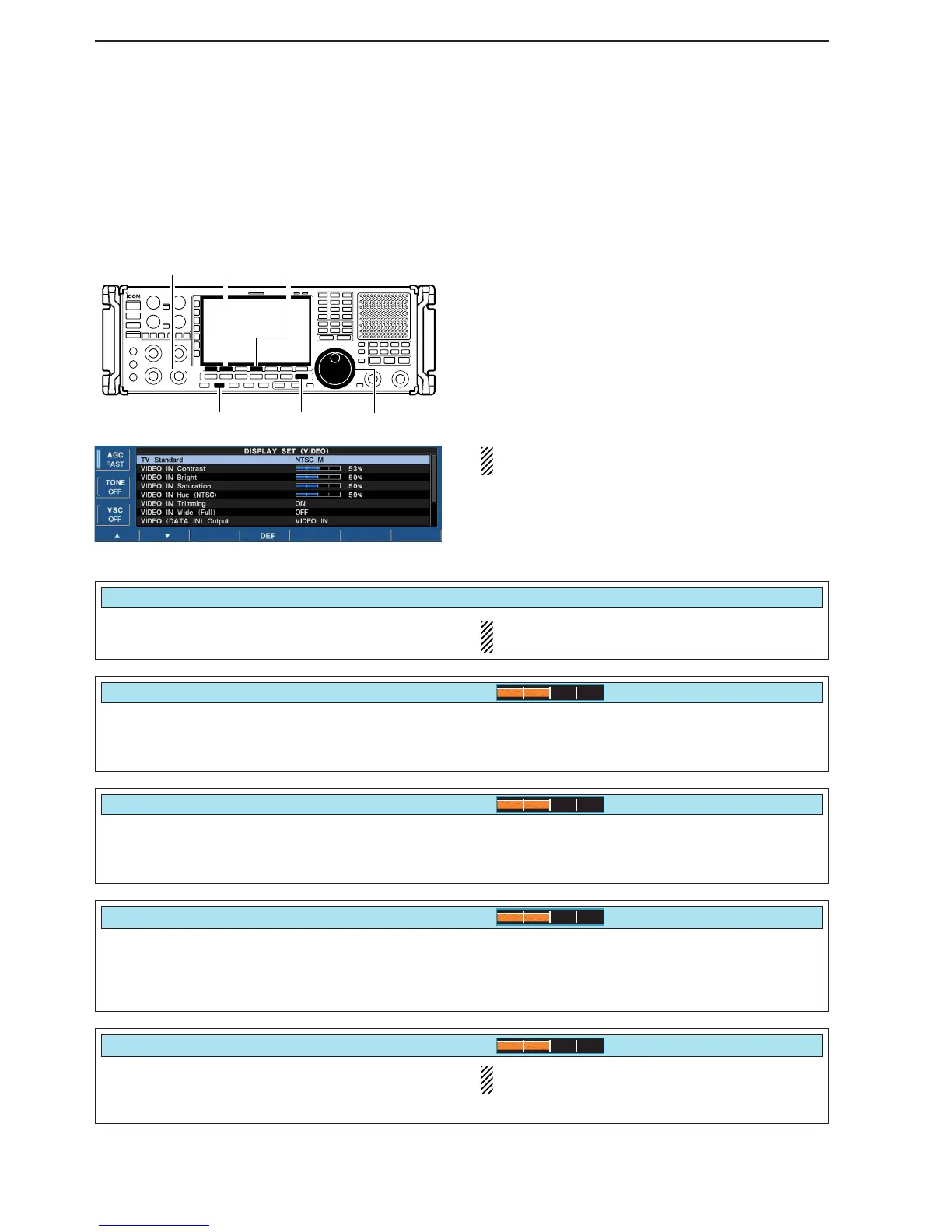

q Push [DISPLAY] momentarily to turn the mini TV
screen, if necessary.
w Push and hold [DISPLAY] for 1 sec. to select the
display set (Video) mode.
e Push [F-1•Y] or [F-2•Z] to select the desired set
item.
r Set the desired condition using the main dial.
• Push and hold [F-4•DEF] for 1 sec. to select a default
condition or value.
t Push [EXIT/SET] to exit from set mode.
NOTE: Video output from [DATA IN] is available an
NTSC system only.
[EXIT/SET][DISPLAY] Main dial
[F-1•Y][F-2•Z]
[F-4•DEF]
Adjusts the saturation (vibrancy of the color) of the
video signal from [VIDEO IN] jack. Adjustable range
is 0 (shade of gray) to 100% (vivid color) in 1% steps.
(default: 50%)
Adjusts the hue (color type) of the video signal from
[VIDEO IN] jack. Adjustable range is 0 (red) to 100
(green) in 1 steps. (default: 50)
NOTE: This setting is available when NTSC sys-
tem signal is input from [VIDEO IN] connector.
VIDEO IN Saturation 50
%
VIDEO IN Hue (NTSC) 50
%
Adjusts the LCD contrast of the video signal from
[VIDEO IN] jack. Adjustable range is 0 (low contrast)
to 100% (high contrast) in 1% steps. (default: 50%)
VIDEO IN Contrast 50
%
Adjusts the LCD brightness of the video signal from
[VIDEO IN] jack. Adjustable range is 0 (dark) to 100%
(bright) in 1% steps. (default: 50%)
VIDEO IN Bright 50
%
Selects the TV system of your local area from “NTSC
M,” “PAL B/G,” “PAL I,” “PAL D” and “SECAM K.”
NOTE: Default setting is different depending on
versions.
TV Standard NTSC M
