18: P ULSE O UTPUT I NSTRUCTIONS
18-2 FC6A S ERIES MICROS MART L ADDER P ROGRAMMING M ANUAL FC9Y-B1726
Settings

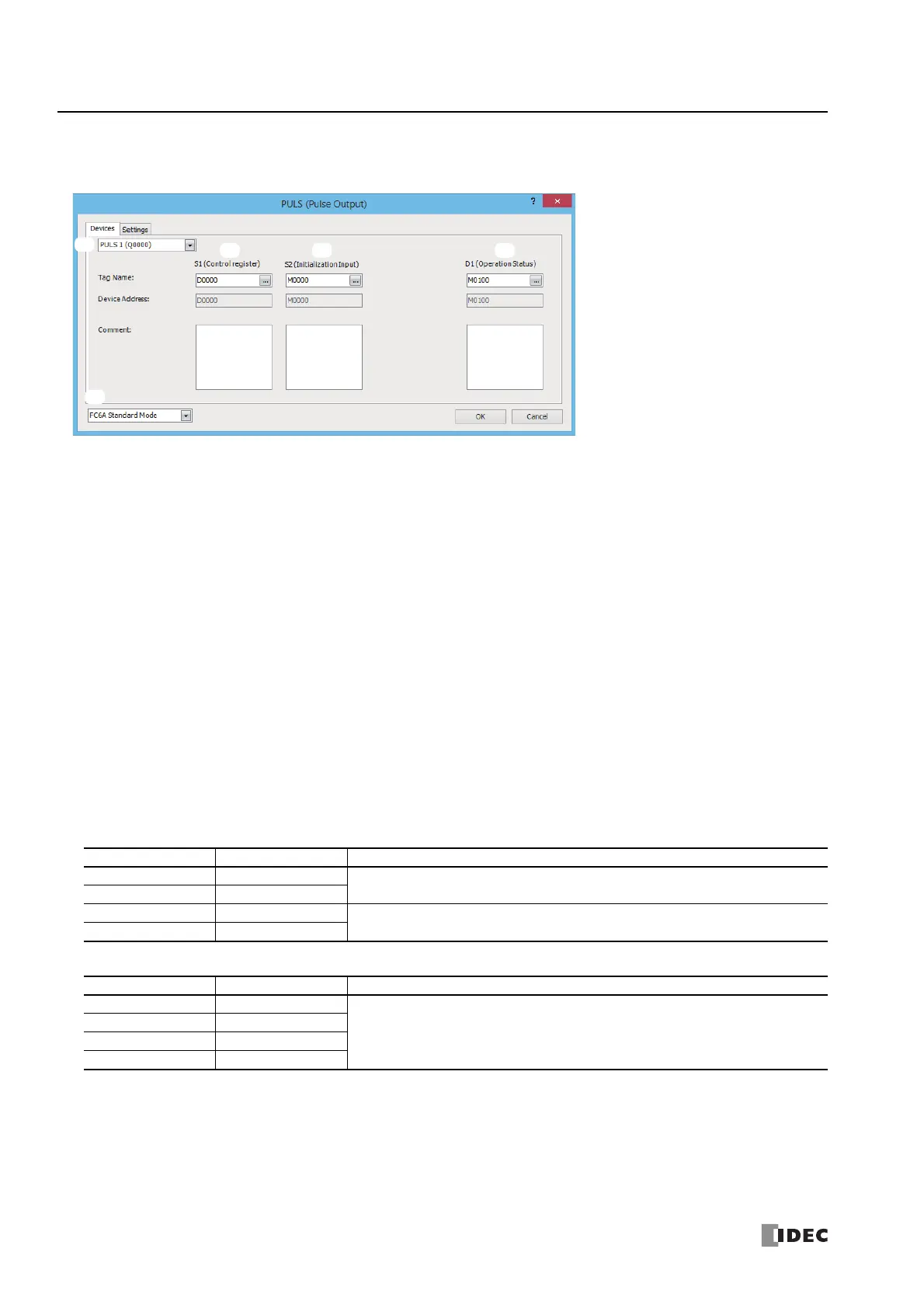

■ Devices tab
1. Select Mode
Selects the configuration mode. FC6A Standard Mode or FC5A (except FC5A-D12X1E) Compatible Mode can be
selected.
Select FC5A (except FC5A-D12X1E) Compatible Mode to use the FC5A Series MICROSmart PULS instruction specification.
When changing the PLC type from the FC5A/FC4A Series MICROSmart, FC5A (except FC5A-D12X1E) Compatible Mode is
automatically selected.
The lowest frequency that can be used with FC5A (except FC5A-D12X1E) Compatible Mode is 20 Hz
*1
.
*1 The lower limit value for the frequency that the FC5A Series MICROSmart can output is 10 Hz, but in compatibility mode this is 20 Hz.
Notes:
• The lowest frequency of pulses that can be output in FC5A (except FC5A-D12X1E) Compatible Mode is 20 Hz. A frequency lower than 20 Hz
cannot be output. If such a value is specified, the pulse frequency designation error will occur.
• The highest frequency of pulses that can be output with PULS3 in FC5A (except FC5A-D12X1E) Compatible Mode is 5 kHz. A frequency higher
than 5 kHz cannot be output. If such a value is specified, the pulse frequency error will occur.
The rest of this section is written under the assumption that FC6A Standard Mode has been selected.
Note: For details on the FC5A (except FC5A-D12X1E) Compatible Mode settings, refer to the PULS instruction in Chapter 15 "Pulse Output
Instructions" in the "FC5A Series MICROSmart Pentra User's Manual Advanced Volume".
2. Select instruction
This item selects which PULS instruction to use ("PULS1", "PULS2", "PULS3", or "PULS4").
The pulse output and the frequency that can be set are determined by the instruction and the CPU module type.
All-in-One CPU module
CAN J1939 All-in-One CPU module/Plus CPU module
Instruction Pulse Output Configurable Frequency
PULS1 Q0
15 Hz to 100 kHz (increments of 1 Hz)
PULS2 Q1
PULS3 Q2
15 Hz to 5 kHz (increments of 1 Hz)
PULS4 Q3
Instruction Pulse Output Configurable Frequency
PULS1 Q0
15 Hz to 100 kHz (increments of 1 Hz)
PULS2 Q2
PULS3 Q4
PULS4 Q6
