18: P ULSE O UTPUT I NSTRUCTIONS

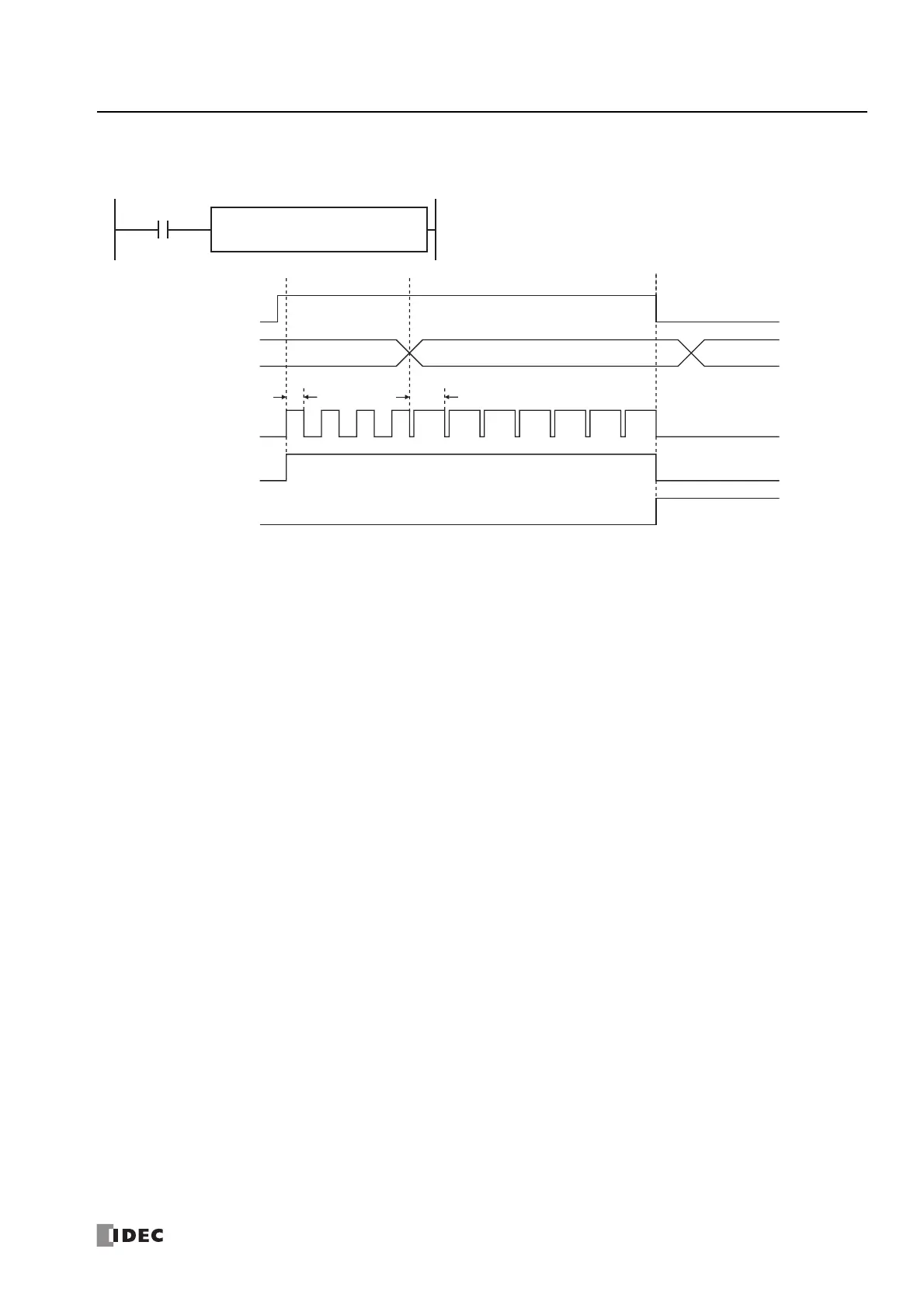

PWM2 instruction (pulse counting disabled) timing chart
[PWM2 instruction, S1 is specified as D0100, D1 is specified as internal relay M0200]
When the PWM2 instruction input changes from off to on, M0200 turns on and pulses with the width ratio configured by D0101 are
output. If the value of D0101 changes during pulse output, pulses are output with the width ratio based on that value.
When the PWM2 instruction input changes from on to off, M0200 turns off and M0201 turns on at the same time.
The changes from the initialization input are not reflected while the PWM2 instruction input is on. If you wish to initialize the data
registers with the initialization input, turn the initialization input on after turning off the input.
D1
M0200
S2
M0000
PWM
2
S1
D0100
PWM2 instruction
input
PWM2 instruction input
Pulse width ratio D0101 w1 w2 w3
Output pulse Q15
Pulse output ON M0200
Pulse output
complete
M0201
w1, w2, w3 = pulse width ratio
w1 w2
