18: P ULSE O UTPUT I NSTRUCTIONS
18-24 FC6A S ERIES MICROS MART L ADDER P ROGRAMMING M ANUAL FC9Y-B1726

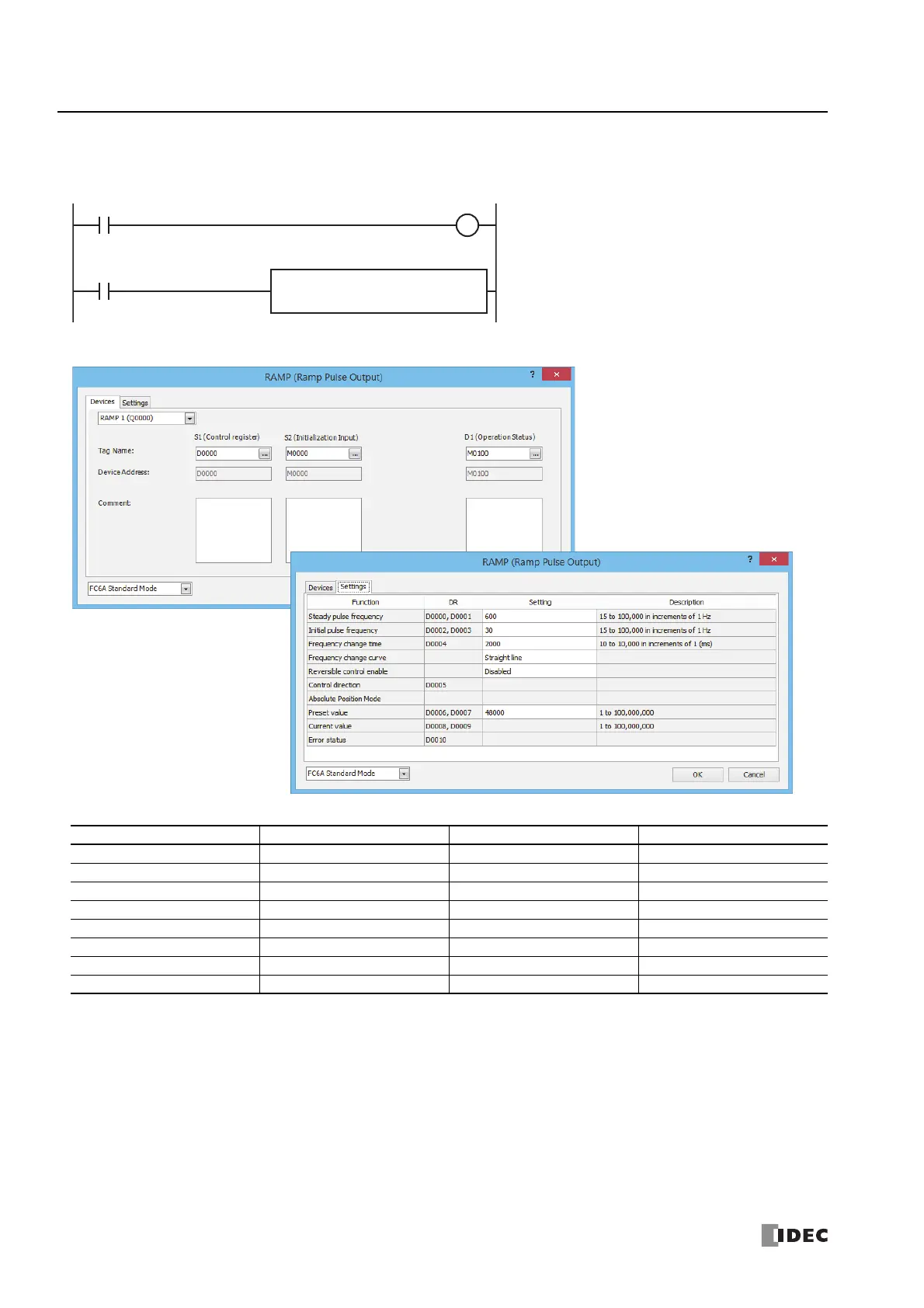

Example:
To output 48,000 pulses with the frequency change function (reversible control disabled) from Q0
Setting
Function Device Address Setting Value Details
Steady pulse frequency D0000, D0001 600 600 Hz
Initial pulse frequency D0002, D0003 30 30 Hz
Frequency change time D0004 2000 2,000 ms
Reversible control enable — Disable —
Frequency change curve — Straight line —
Control direction D0005 — —
Absolute Position Mode — — —
Preset value D0006, D0007 48000 Preset value=48,000
M0000
M8120
I0000
D1
M0100
S2
M0000
RAMP
1
S1
D0000
When the RAMP instruction input (I0) turns on, pulse output
starts
Turn on initialization input (M0000)
