FC6A S ERIES MICROS MART L ADDER P ROGRAMMING M ANUAL FC9Y-B1726 18-31
18: P ULSE O UTPUT I NSTRUCTIONS
(8) Error status
Outputs the error code that corresponds to the content of an error when there is an error in the settings. If a configuration
error occurs when the RAMPL instruction input changes from off to on, M8004 (user program execution error) is turned on
and this register is set to the error code.

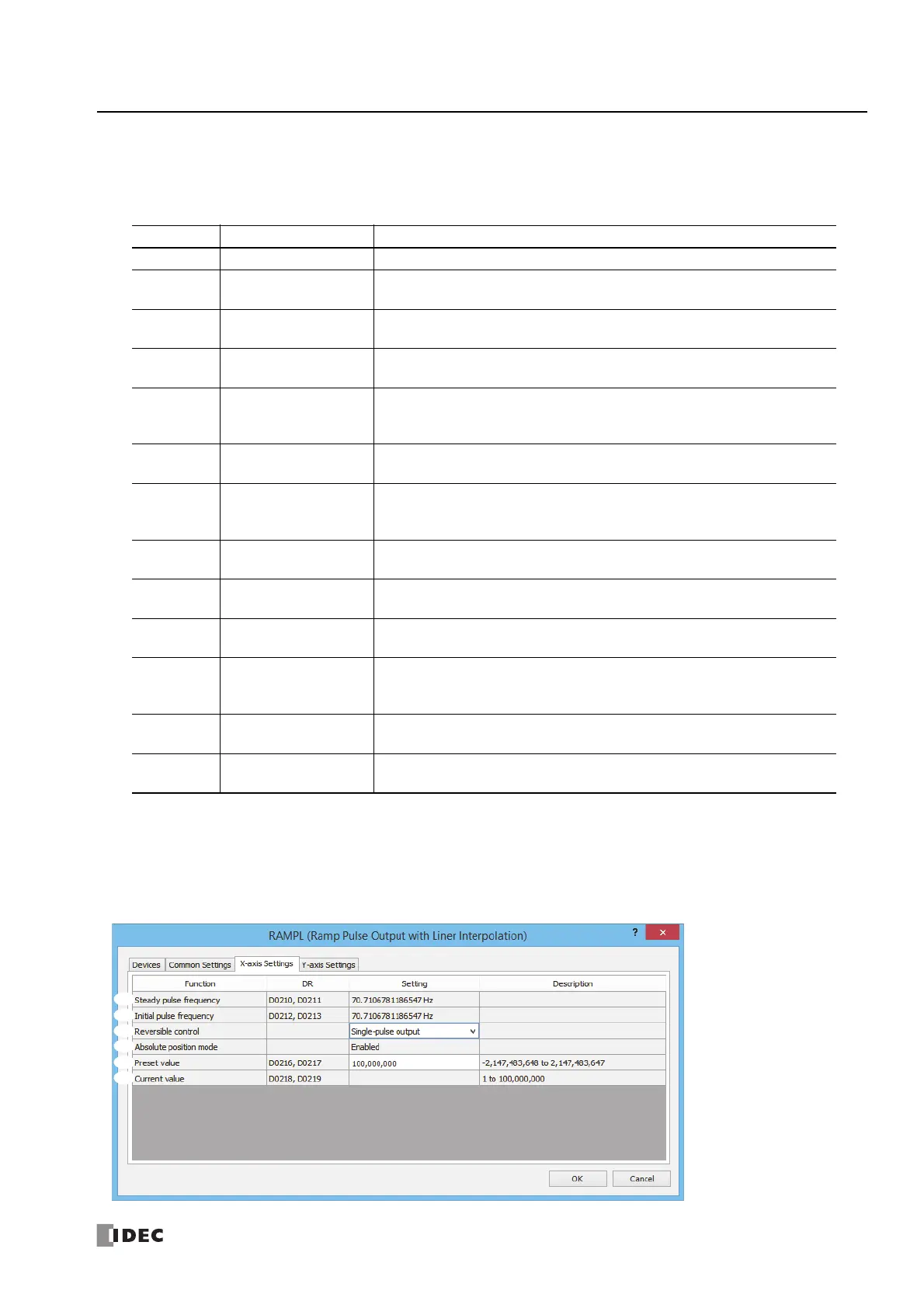

■ X-axis Settings tab, Y-axis Settings tab
Error Code Status Description
0Normal —
2
Combined initial pulse
frequency designation error
The combined initial pulse frequency was not set between 15 and 100,000.
4
Combined steady pulse
frequency designation error
The combined steady pulse frequency was not set between 15 and 100,000.
5
Frequency change time
designation error
The frequency change time was not set between 10 and 10,000.
9 Frequency designation error
The combined initial pulse frequency was set to the same frequency as the combined
steady pulse frequency or it was set to a value larger than the combined steady pulse
frequency.
*1
12
X axis initial pulse frequency
designation error
The X axis initial pulse frequency calculated from the set values was not between 15 and
100,000.
13
X axis preset value
designation error
The X axis preset value was not set between -2,147,483,648 and 2,147,483,647 or the
difference between the configured preset value and absolute position counter was
bigger than 100,000,000.
14
X axis steady pulse
frequency designation error
The X axis steady pulse frequency calculated from the set values was not between 15
and 100,000.
18
X axis over preset value
error
The number of X axis pulses when changing the pulse frequency has exceeded the total
number of output pulses.
*2
22
Y axis initial pulse frequency
designation error
The Y axis initial pulse frequency calculated from the set values was not between 15 and
100,000.
23
Y axis preset value
designation error
The Y axis preset value was not set between -2,147,483,648 and 2,147,483,647 or the
difference between the configured preset value and absolute position counter was
bigger than 100,000,000.
24
Y axis steady pulse
frequency designation error
The Y axis steady pulse frequency calculated from the set values was not between 15
and 100,000.
28
Y axis over preset value
error
The number of Y axis pulses when changing the pulse frequency has exceeded the total
number of output pulses.
*2
*1 Set the combined initial pulse frequency so that it is lower than the combined steady pulse frequency.
*2 The number of pulses in the frequency change area calculated by steady pulse frequency, initial pulse frequency, and frequency
change time has exceed the total number of output pulses. Lower the steady pulse frequency, lower the initial pulse frequency, or
shorten the frequency change time.
(10)
(9)
(11)
(12)
(13)
(14)
