IDEC MICROSmart FC6A Series Ladder Programming Manual

18: P ULSE O UTPUT I NSTRUCTIONS
18-58 FC6A S ERIES MICROS MART L ADDER P ROGRAMMING M ANUAL FC9Y-B1726

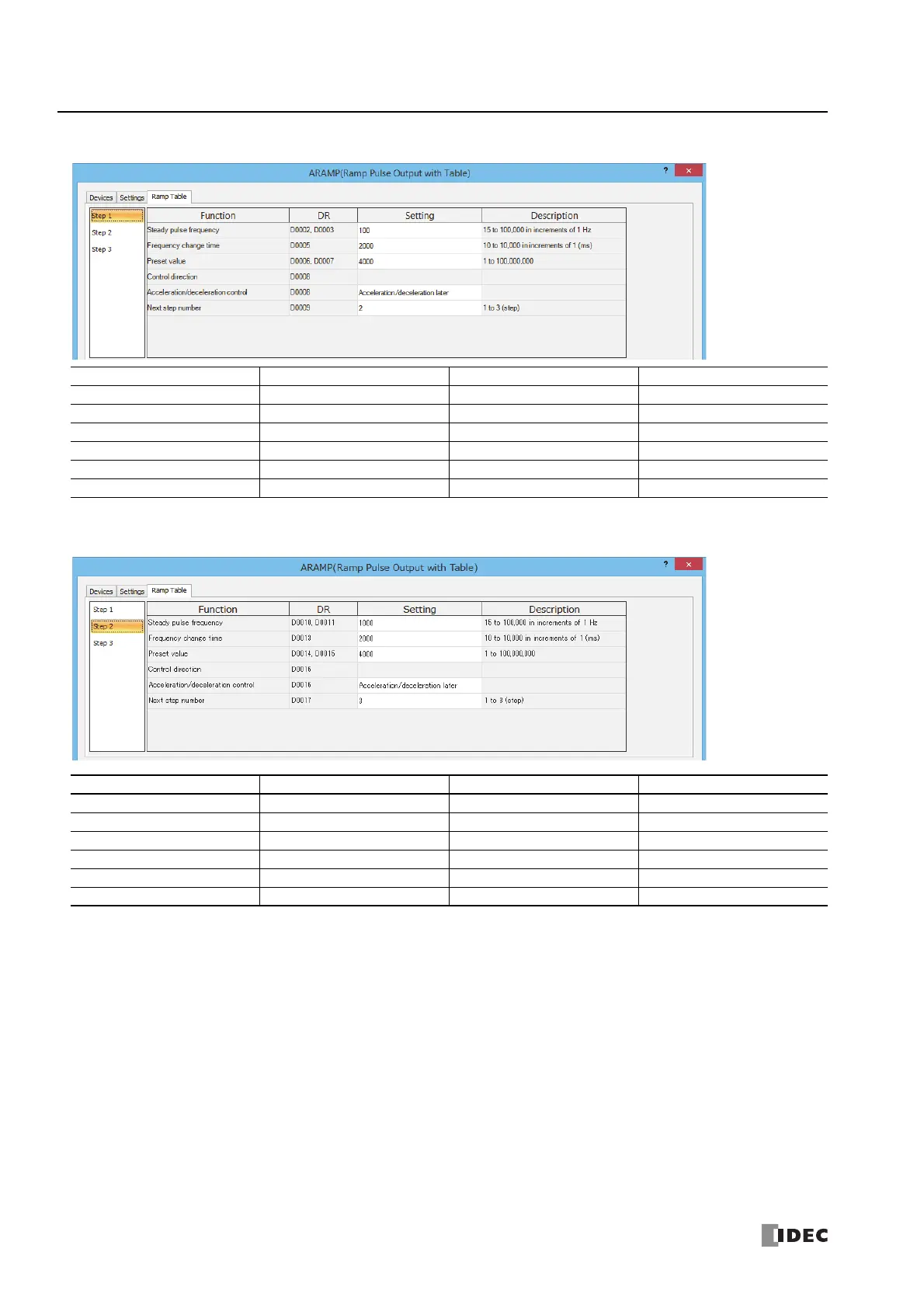

Step 1 settings
Step 2 settings
Function Device Address Setting Value Details
Steady pulse frequency D0002, D0003 100 100 Hz
Frequency change time D0005 2000 2,000 ms
Preset value D0006, D0007 4000 Preset value=4,000
Control direction D0008 — —
Acceleration/deceleration control D0008 Acceleration/deceleration later After=2
Next step number D0009 2 Step 2
Function Device Address Setting Value Details
Steady pulse frequency D0010, D0011 1000 1,000 Hz
Frequency change time D0013 2000 2,000 ms
Preset value D0014, D0015 4000 Preset value=4,000
Control direction D0016 — —
Acceleration/deceleration control D0016 Acceleration/deceleration later After=2
Next step number D0017 3 Step 3
