FC9Y-B1726 19-43
19: PID C
ONTROL
I
NSTRUCTION
11. PID monitor table
You can check the function name, current value, and device address for data registers and internal relays used by the PIDA/
PIDD instruction. The current values displayed in white cells can be changed. Showing/hiding items can be changed in the PID
Monitor Settings dialog box. For details, see "PID Monitor Settings Dialog Box" on page 19-44.
12. Apply Tuned Value
By clicking Apply Tuned Value, you can reflect the PID control parameters adjusted in PID monitor table (11) as the initial
setting values for the PIDA/PIDD instruction selected in Target (1). To store the reflected initial setting values to FC6A Series
MICROSmart ROM, you must end the monitor and download the user program to the FC6A Series MICROSmart.
Changing PID Monitor Settings
Operation Procedure

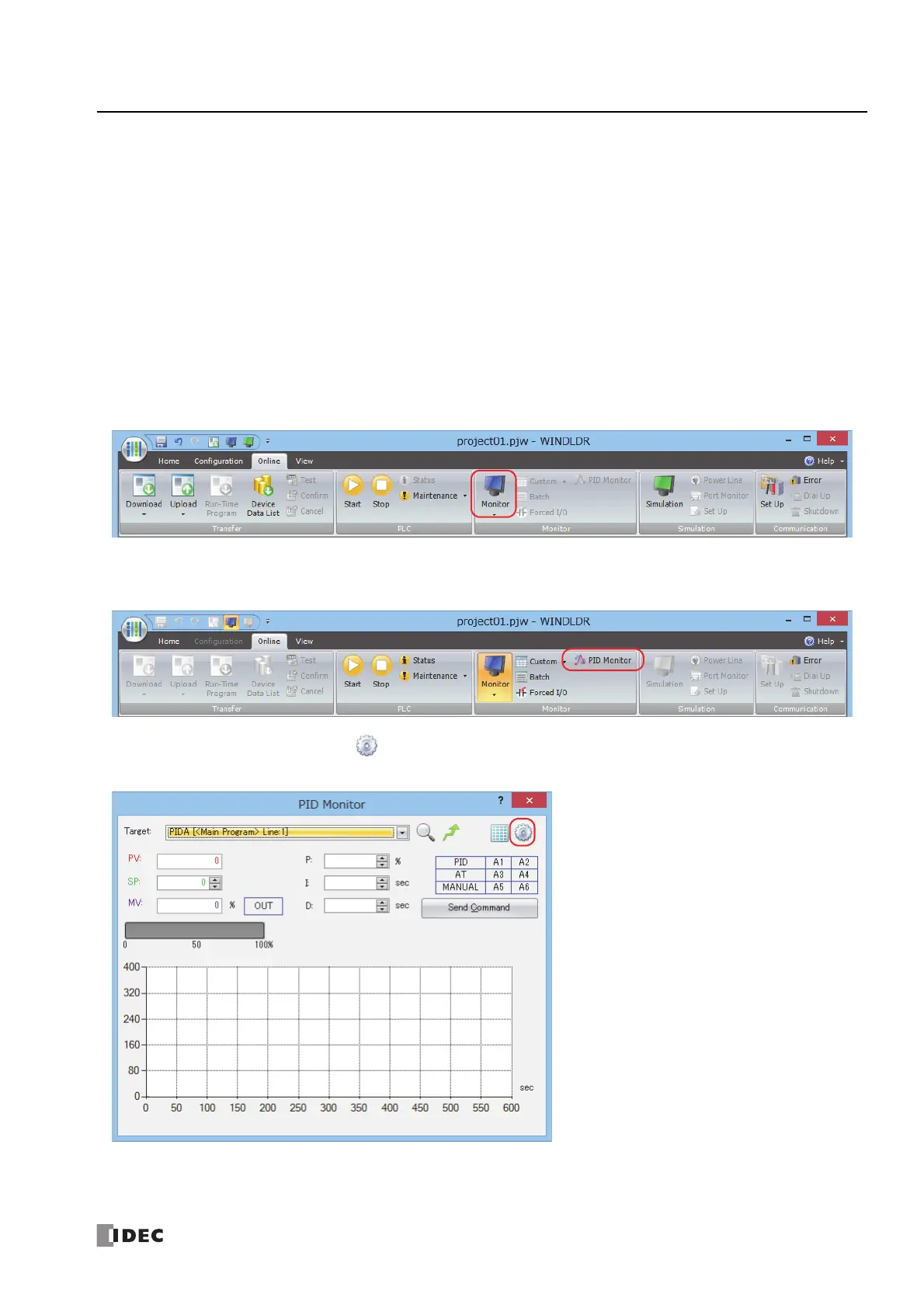

1. From the WindLDR menu bar, select Online > Monitor > Monitor.
The monitor starts.
2. From the WindLDR menu bar, select Online > Monitor > PID Monitor.
The PID Monitor dialog box is displayed.
3. In the PID Monitor dialog box, click button (PID monitor settings).
The PID Monitor Settings dialog box is displayed.
To Next Page
