IDEC MICROSmart FC6A Series Ladder Programming Manual

19: PID C ONTROL I NSTRUCTION
19-56 FC6A S ERIES MICROS MART L ADDER P ROGRAMMING M ANUAL FC9Y-B1726

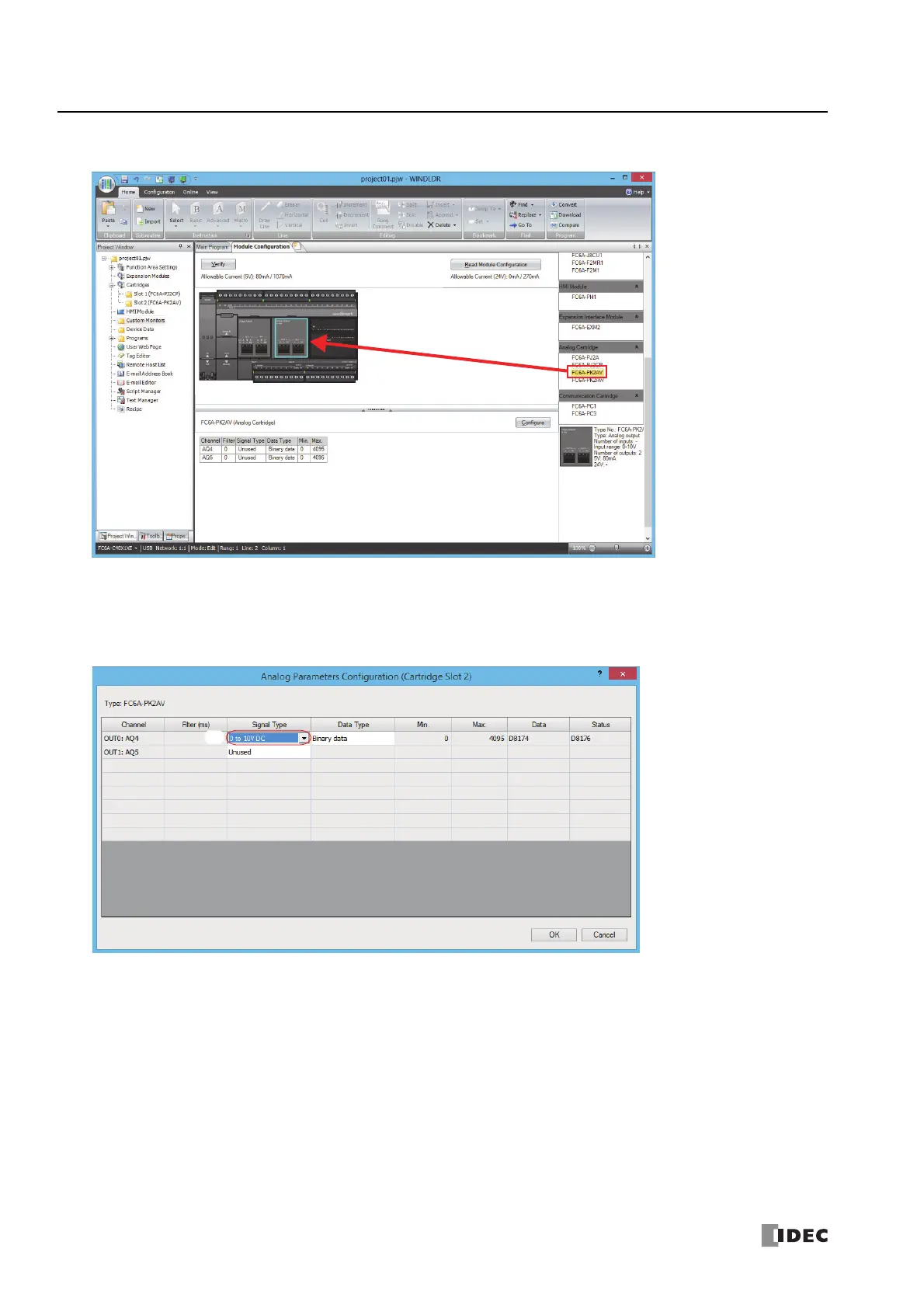

10. Select FC6A-PK2AV in the expansion modules and cartridges list and drag and drop it to the module configuration area.
11. Click the FC6A-PK2AV analog I/O cartridge that was interested in the module configuration area and click Configure.
The Analog Parameters Configuration (Cartridge Slot 2) dialog box is displayed.
12. Configure the items.
• For channel OUT0 : AQ4 Signal Type, select 0 to 10V DC (1).
13.
Click OK to close the Analog Parameters Configuration (Cartridge Slot 2) dialog box.
