1. Introduction

1.1 Printer outside features

For the user’s convenience, SOLID-510 status can be seen through LCD with LED and

the printer can be controlled by two LED buttons. It takes a power via the 24V adaptor

provided with the printer. Using USB and Network port, it is communicated with the user’s

The following shows the outside functional features found on the printer.

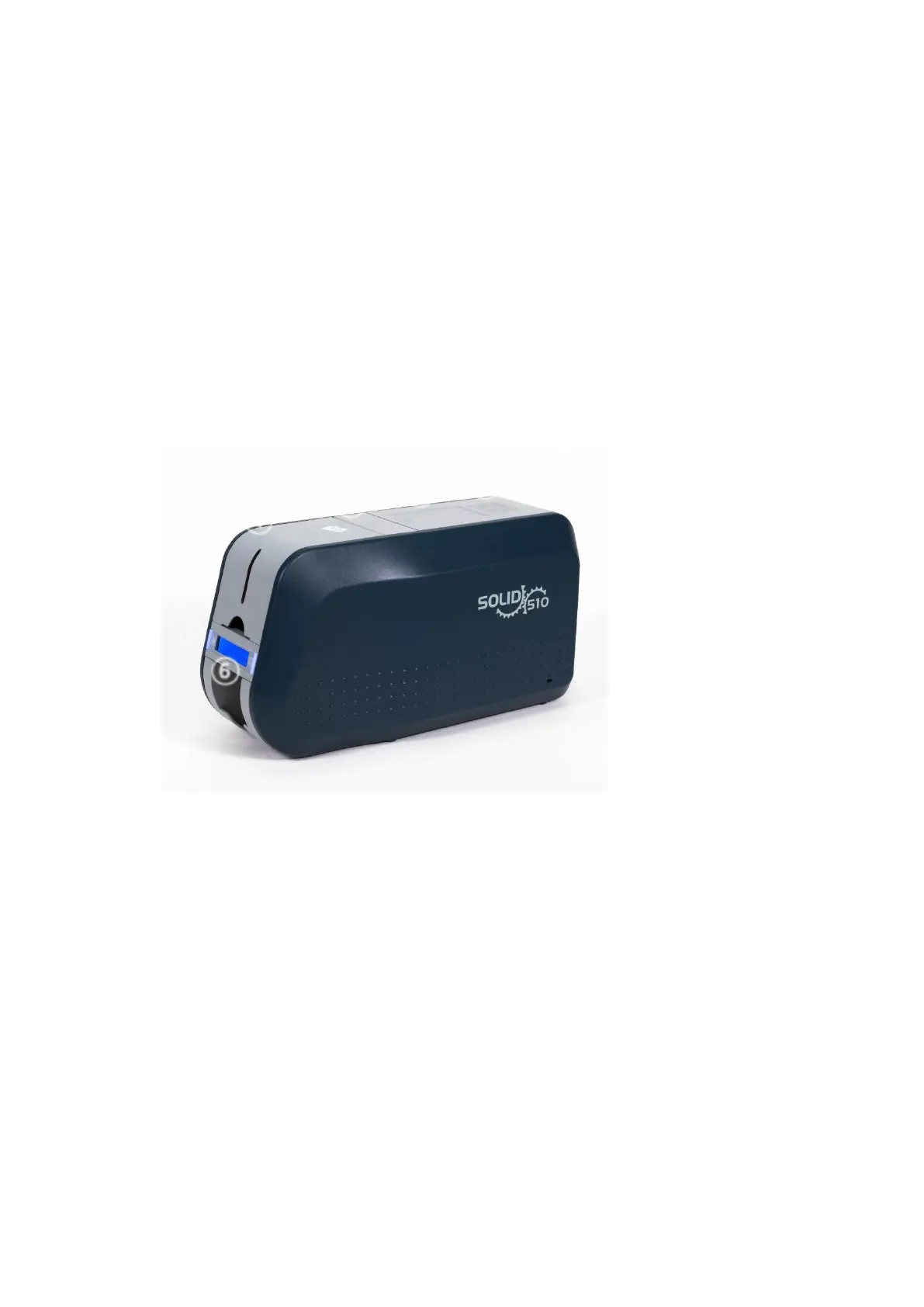

Figure 1 SOLID-510 front features

① Top cover open button

② External contactless

Smartcard encoding

position

③ Fan

④ Input hopper

⑤ LED buttons

⑥ LCD show the process

status
