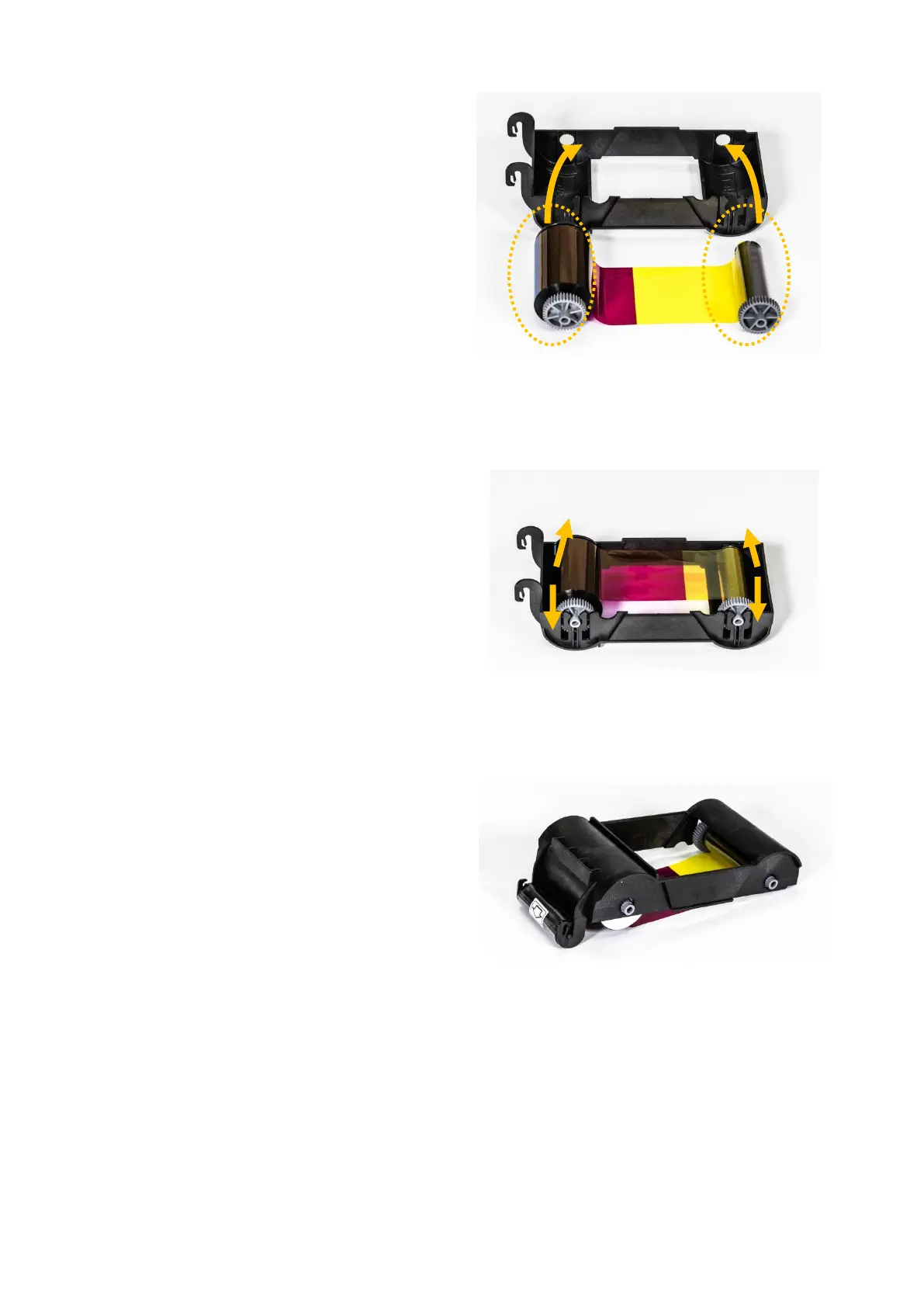

(4) Install a ribbon into the ribbon

cartridge as the right picture.

Figure 15 Loading the ribbon 1

(5) Insert the supply side of the ribbon

to no.1 hole and press the opposite

(no.2). Insert the take-up side of the

ribbon same method to no.3 and no.4.

After inserting, tighten the ribbon.

(Caution! If the ribbon is not tightened, a rolling

up error might be happened.)

Figure 16 Loading the ribbon 2

(6) Install the disposable cleaning roller

to the ribbon cartridge.

Figure 17 Installing the cleaning roller

①

②

③

④
