(3) SOLID-510L

SOLID-510L needs two power cables. Connect powers and USB cable after turning the

printer on its side as the below picture. Please refer to the ‘Network Configuration’ if you

use the LAN connection.

SOLID-510L has two power switches so please turn on both switches.

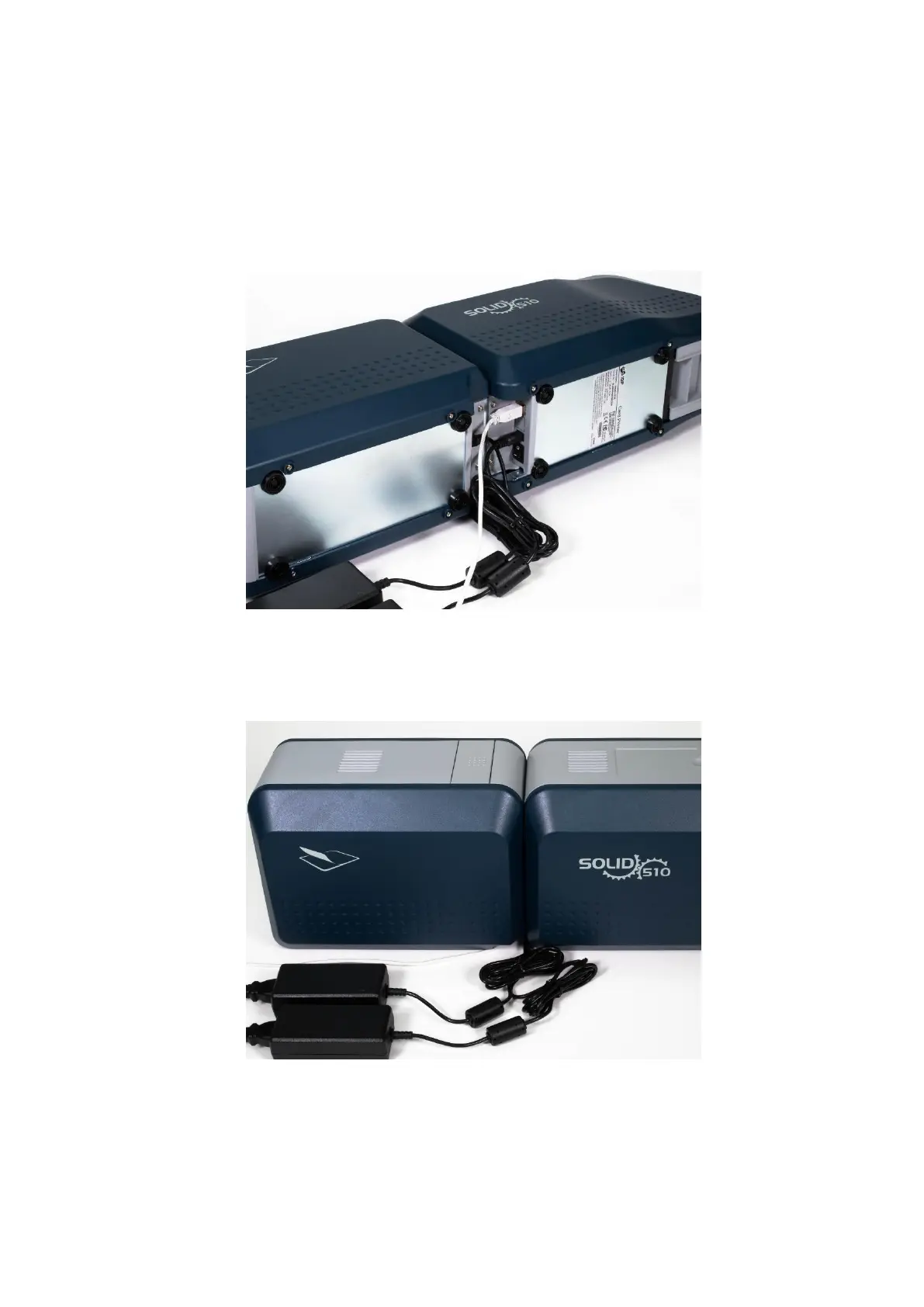

Figure 11 SOLID-510L Connection of powers and USB cable - 1

Figure 12 SOLID-510L Connection of powers and USB cable - 2
