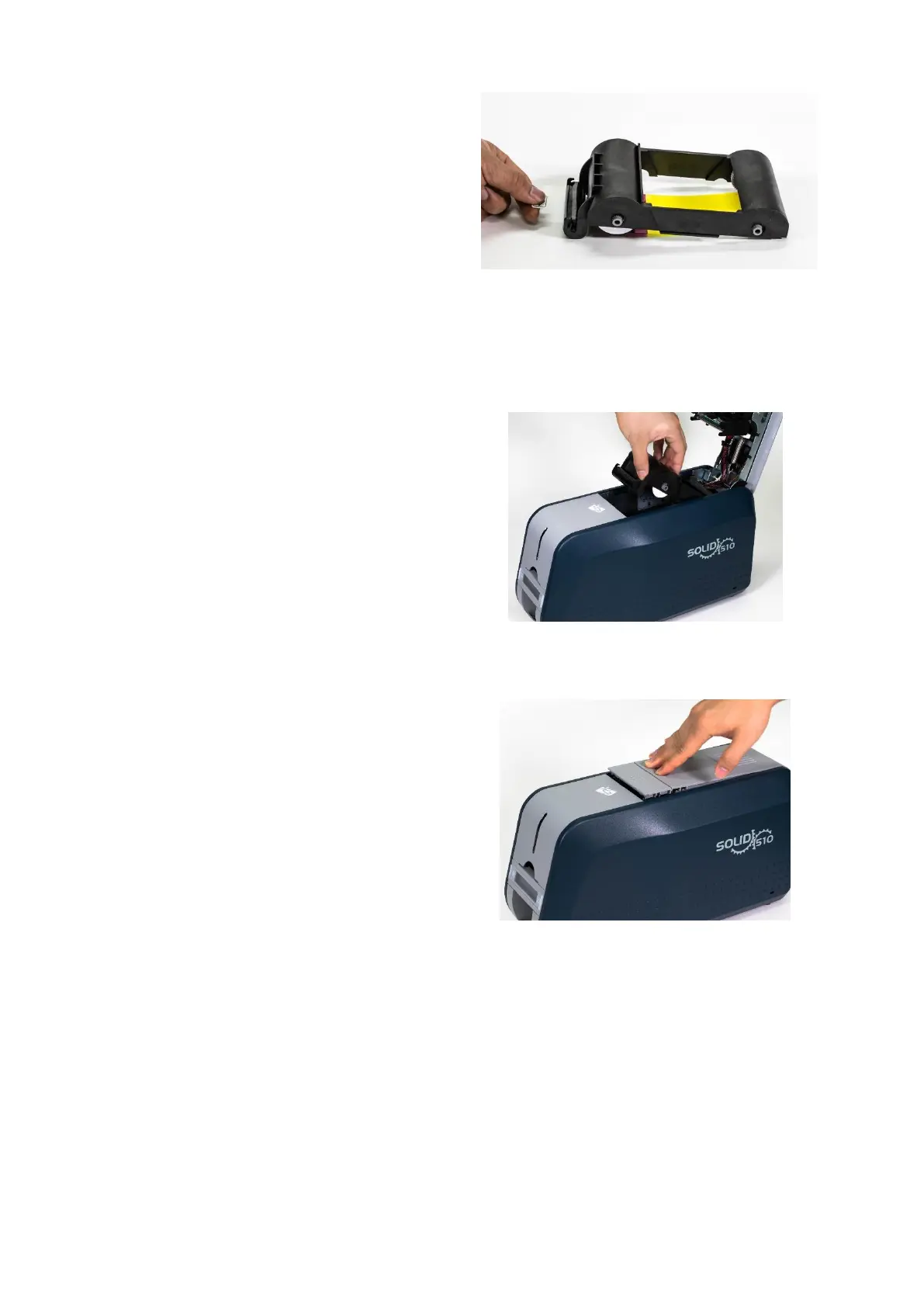

(7) Peel the protective wrapper from the

cleaning roller.

After removing the protective wrapper, the

cleaning roller should be kept clean from

fingerprints, dust and foreign substances

to avoid contamination because it is

adhesive.

(Caution! Do not use without peeling off

the protective wrapper because the

cleaning roller cannot perform its function.)

Figure 18 Peeling the protective wrapper

(8) Install the ribbon cartridge into the

printer after installing the ribbon with a

cleaning roller to the cartridge.

Figure 19 Installing the ribbon cartridge

(9) Close the top cover

(If it is not closed properly, check the

installation state of the ribbon cartridge.)

Figure 20 Close Top Cover
