53
4.2. Network configuration
(1) Connecting network port
The printer which installed with
network option has a port for
network connection as shown in the
left picture.
① Power Switch
② Power Supply Connector
③ Network Port
④ USB Port

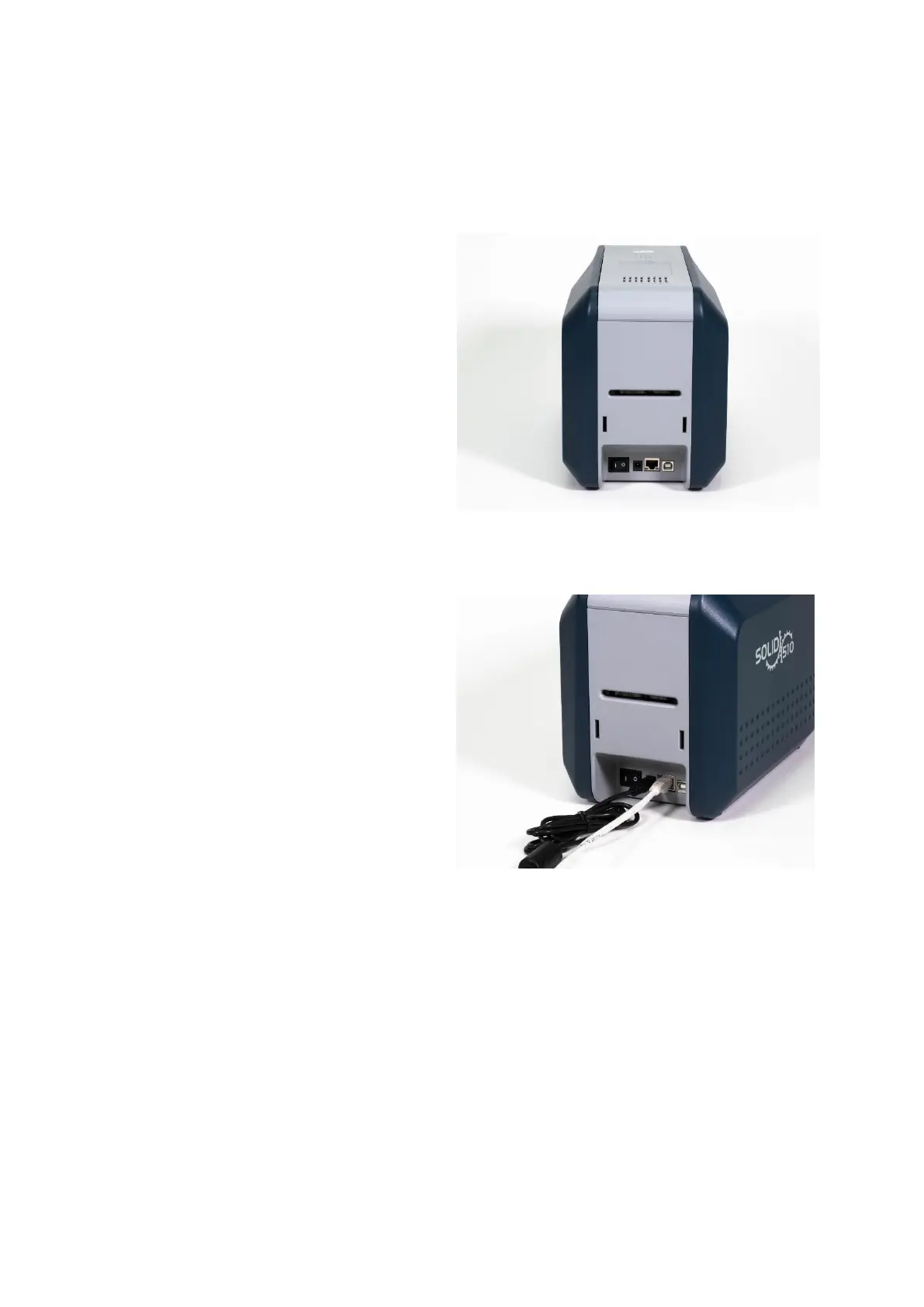

Figure 72 Rear view of SOLID-510 printer 1
Please connect network cable
(RJ45) to a printer.
(Network cable is not supplied. Please ask
network administrator for more questions.)
Figure 73 Rear view of SOLID-510 printer 2
DHCP (Dynamic Host Configuration Protocol) which automatically assigns IP address to the
SOLID-510 network printer on the same network is default for IP configuration. If you don’t have
DHCP server, you need to set static IP.
Please run NetAdmin.exe in the SOLID-510 installation CD to set or change network
configuration.
To Next Page
