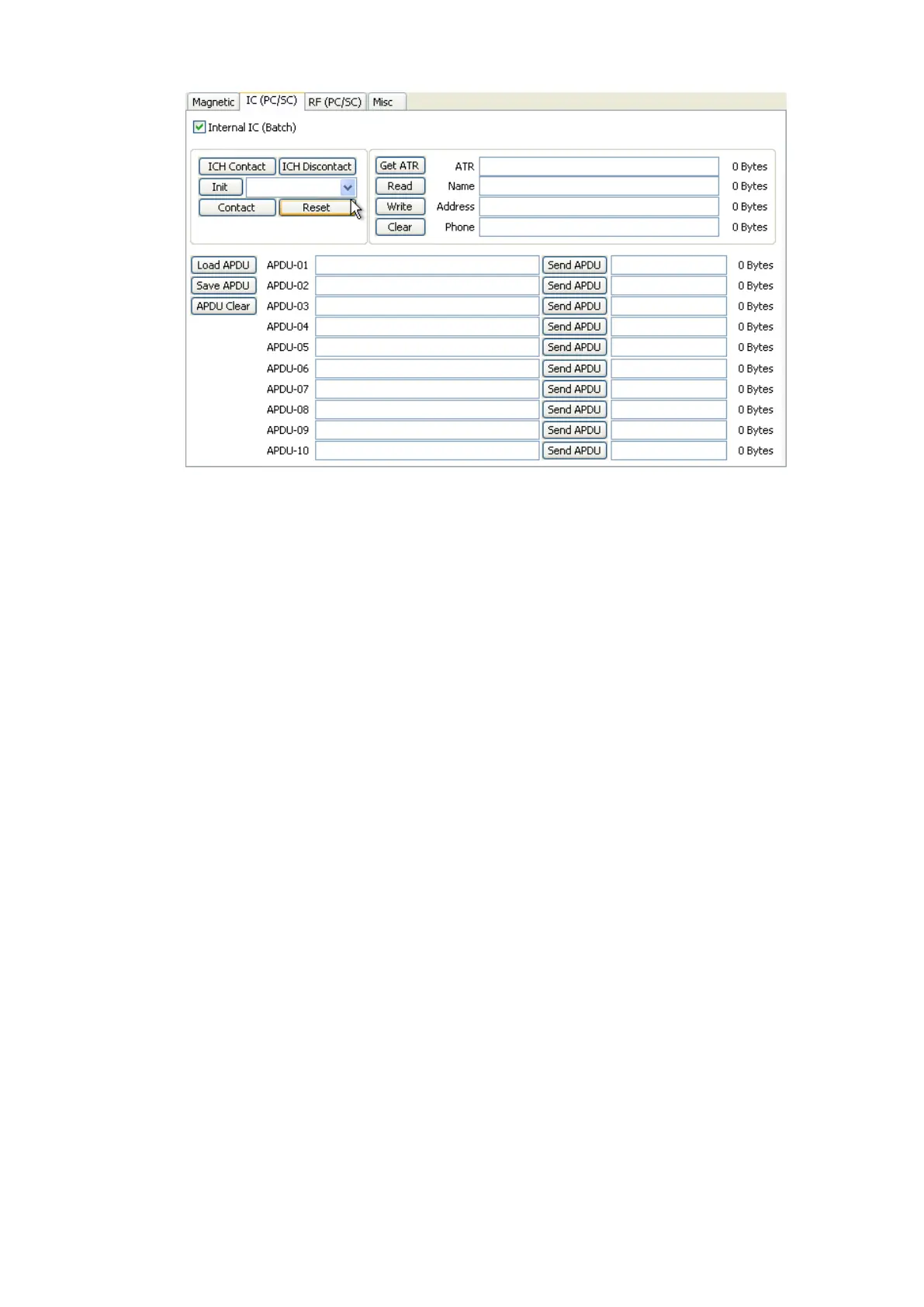

Figure 91 Contact smartcard encoding
RF(PC/SC) : Contactless Smartcard Encoding
In SOLID-510 printer, a contactless smartcard encoder can be installed and SOLID-
510 printer has the internal and external contactless smartcard encoder. RF(PC/SC) is
to read and write the contactless smartcard. Using internal encoder, the printer brings
a card into the printer from input hopper and encodes a smartcard. Using external
encoder, after putting a card on the top cover, you can encode because the antenna
installed under the top cover is used. Therefore, “Batch” is applied only to the internal
contactless smartcard encoding.
“Contact” is to contact with the contactless smartcard electrically and initialize.
“Reset” is to finish the function electrically. After “Contact”, you can run “Read”, “Write”
and “Clear”.
“Get UID” is for getting Chip Serial Number(CSN)
“Read” and “Write” are to read and write the defined data (Name, Address and
Phone). These could not be applied to all cards.
“Clear” is to clear the displayed data (ATR, Name, Address and Phone).
In case the data is read and written using APDU, Read/Write can be done by APDU
commands.
“Load APDU” is to read the stored APDU commands.
