Ikegami FA-97A - Page 155

139
HDK-99 1803 VER1 (E)

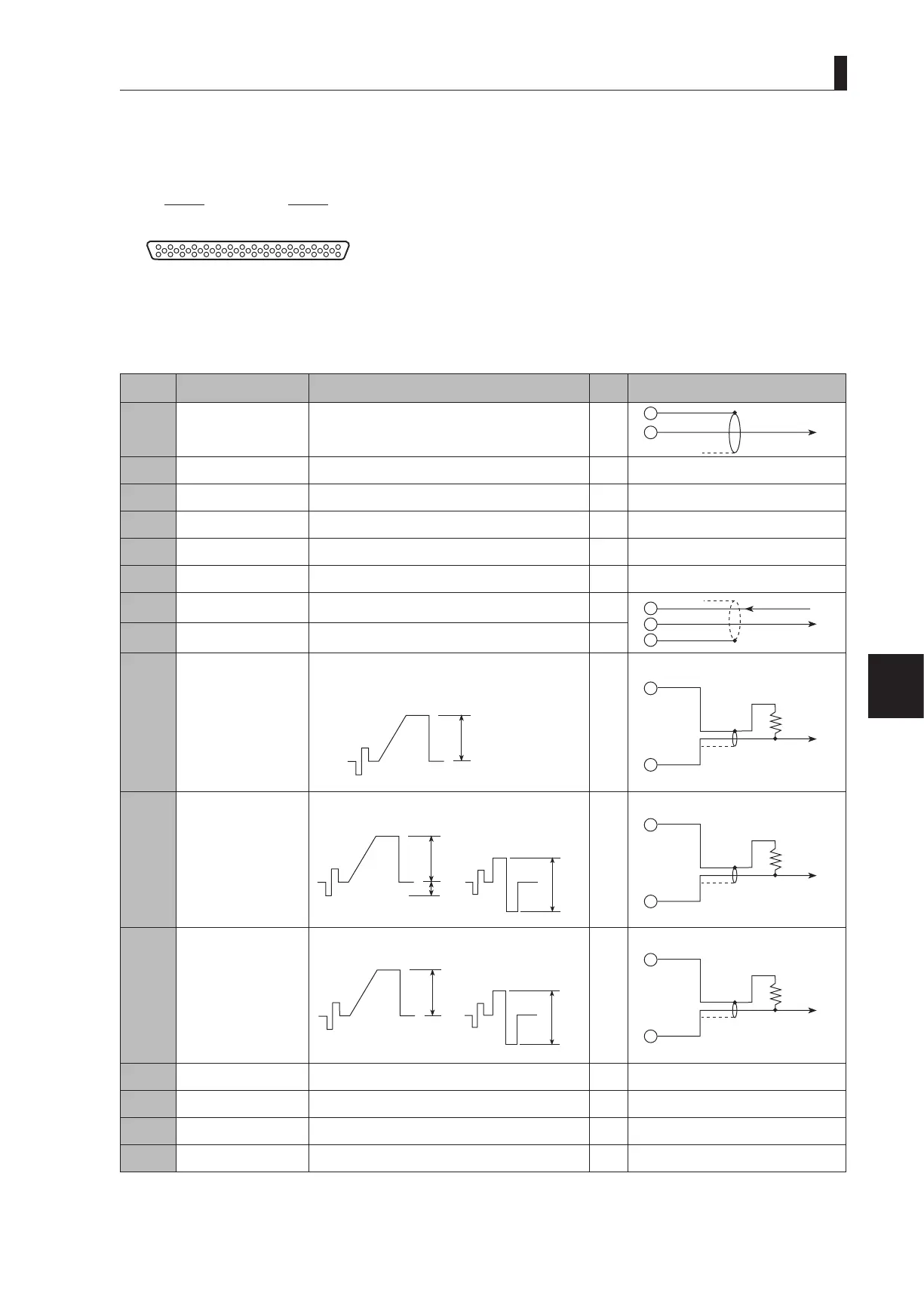

7.3 External Connections
7
SPECIFICATIONS
■
Connector for system addition
Used to add a system such as SE-H700.
1 2 3 . . . . . . . . . . . 15 16 17
18 19 . . . . . . . . . . . . . 32 33
34 35 36 . . . . . . . . . . . 48 49 50
Insertion Side
Camera head side : D02-50S-F0
SE side : D02-50P-F0
Receptacle
Pin No. Name Function I/O External Interface
○
1
GND
――――――――――――――――――――― OUT
1
26
○
2
SP DATA
Serial/Parallel data signal OUT
○
3
SP WR
Write pulse for serial-parallel signal conversion OUT
○
4
AD ADRS
Address bus for analog-digital signal conversion OUT
○
5
AD EOC
EOC signal for analog-digital signal conversion IN
○
6
+ 3.3 V
DC +3.3V power output OUT
○
7
(RTS - 1)
(RTS-1 intercom input) IN
8
24
7
○
8
(RTS - 2)
(RTS-1 intercom input) OUT
○
9
VF G / Y
Output of G VF VIDEO signal or Y VF VIDEO signal
to VF
Zout = 75ǡ
0.7 V
P-P
0V
G / Y VIDEO
OUT
9
25
75
ǡ
○
10
VF B /Pb
Output of B VIDEO signal or Pb VIDEO signal to VF
Zout = 75
ǡ
0.7 V
P-P
0.3 V
P-P
0.3 V
P-P
0.35 V
P-P
0V
B VIDEO
Pb VIDEO
0V
OUT
10
26
75
ǡ
○
11
VF R / Pr
Output of R VIDEO signal or Pr VIDEO signal to VF
Zout = 75ǡ
0.7 V
P-P
0V
R VIDEO
0.35 V
P-P
Pr VIDEO
0V
OUT
11
27
75
ǡ
○
12
N . C
(Unusable) ―
○
13
N . C
(Unusable) ―
○
14
N . C
(Unusable) ―
○
15
N . C
(Unusable) ―
