2.2 Displays in the Viewfinder

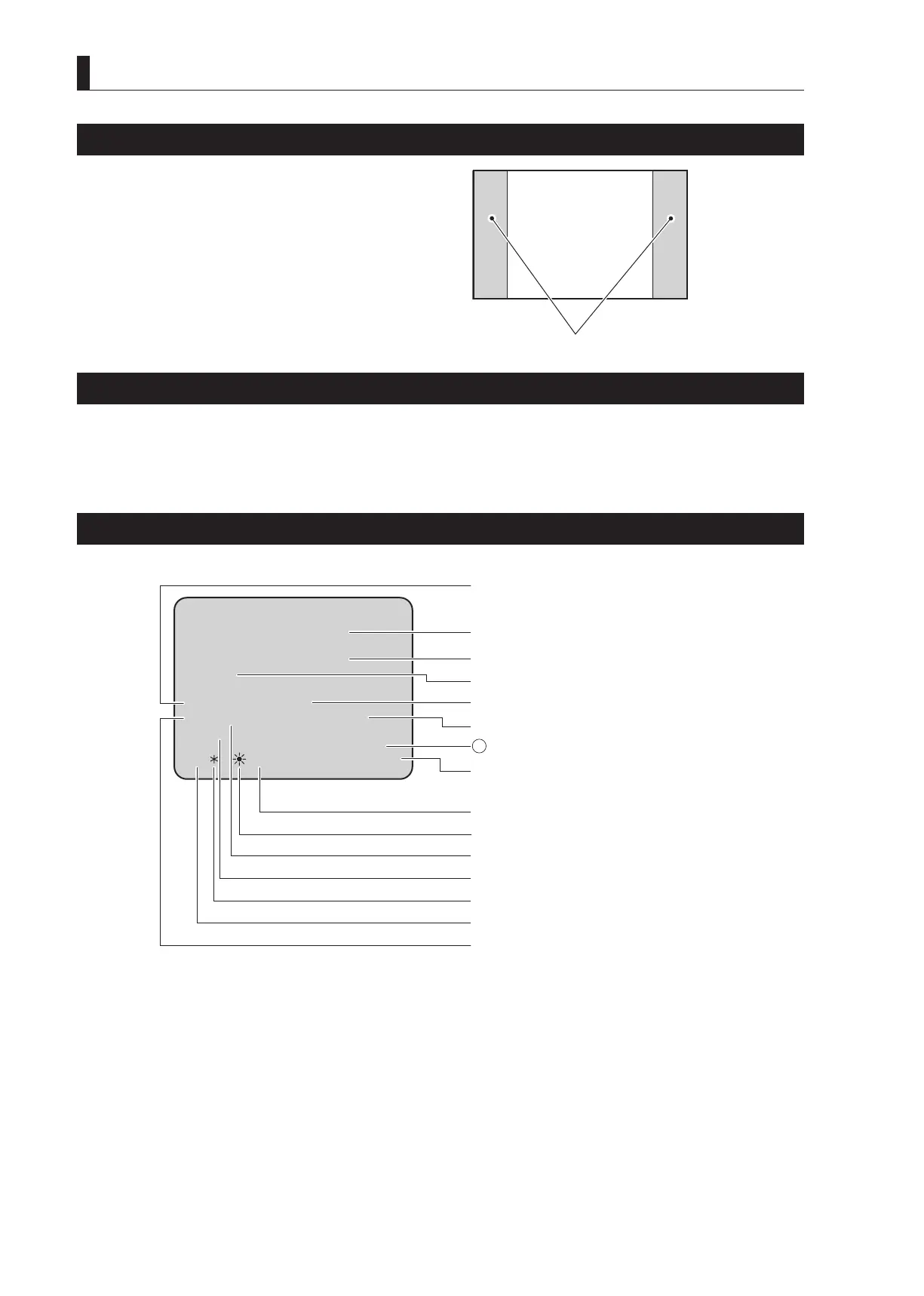

Side Mask Function
When the camera output aspect ratio is set to 16:9, the picture
on the viewnder is displayed with a 16:9 aspect ratio. In
consideration of converting to a 4:3 picture, the contrast of the
mask area can be adjusted. The side mask is displayed when the
VF aspect ratio is set to the following ratio:
- With 16:9 mode: 4:3, 13:9, 14:9
Reference:
Refer to
"5. CAMERA SETTINGS and ADJUSTMENT :
Menu Configuration and content" (P85)
for how to set the
side mask.
Display Mode
The display mode sets the markers and characters to be displayed in the viewnder.
Reference:
The display mode is set from the menu. Refer to
"5. CAMERA SETTINGS and ADJUSTMENT : Menu Configuration and
content" (P85)
.
Viewfinder Display
■
Status Display
MEM ＢＡＴ ＷＡＲＮ
ＳＯＦＴ ＤＴＬ ＯＦＦ
ＡＵＴＯ ３．２Ｋ
１０．８Ｖ
ＳＫ ＯＰＴ
＋１２dB
２Ｂ Ａ1／１００
ＭＩＣ
Ｏ Ｋ ＴＩＴＬＥ
① Memory backup battery voltage
③ P.FUNC display
⑧ AWB color temperature
⑨ SKIN DTL ON/OFF
⑪ BARS TITLE
⑯ AWB memory channel
⑫ GAIN UP value
⑩ OPT level
⑮ Operational priority f
or filter control
⑭ ND and CC filter numbers
④ Battery voltage
⑦ Fan status
⑰ Shutter speed/focus indicator/
Zoom indicator
INTERCOM MIC (USA version)
20
⑲ Electronic color temperature filter
Brightness of the picture outside
the frame marker can be adjusted.
