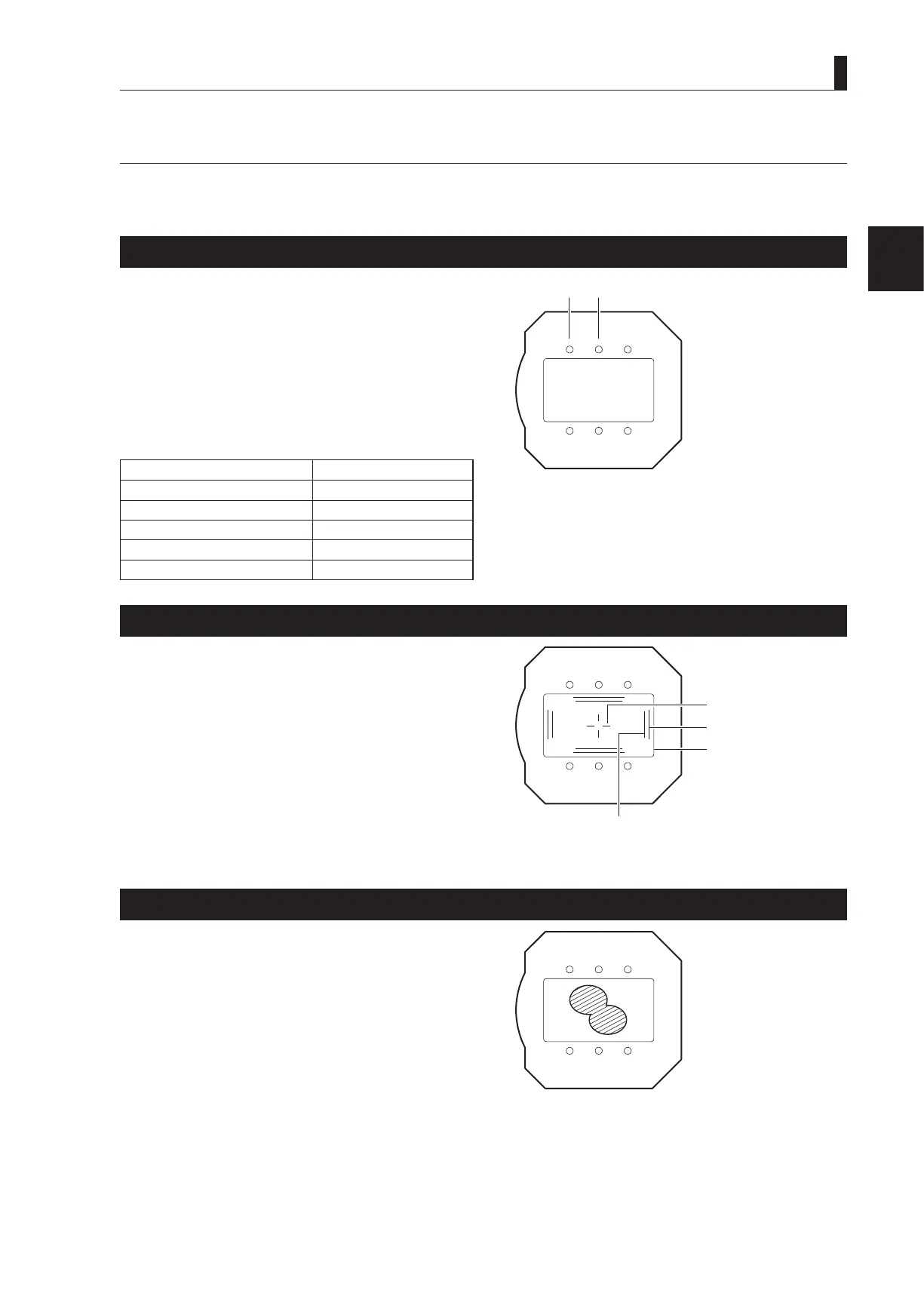

2.2 Displays in the Viewfinder
2.2 Displays in the Viewfinder
In addition to the LED indicators in the viewnder, markers and characters are also displayed on the viewnder screen. Details are
provided below.
LED Indicator
- G TALLY : G TALLY indicator (Green).
- R TALLY : R TALLY indicator (Red).
- BATTERY : Lights when the battery voltage has fallen below
the set value.
- ! : Lights when the camera settings are not
standard. (Refer to Note.)
- EXT : Lights while the lens extender is being used.
Note:
The ! indicator lights when the following settings are made.
Switch/Function Setting Status
AWB SELECT switch OFF
KNEE MODE MANUAL
SKIN DTL ON
SHUTTER ON
A. IRIS CORR Other than OFF
Center Marker, Safety Marker, Frame Marker
- The Center Marker is used to ascertain the center of the screen
or align the camera horizontally and vertically.
- The Safety Markers are used to check the safe action area or
safe title area. Switching between the action area and the title
area is made from the menu.
- The Frame Marker is used to ascertain the frame of the image
being shot.
- Aspect ratio (4:3/13:9/14:9/16:9) can be set to the Safety
Markers and Frame Marker separately.
Reference:
Refer to
"5. CAMERA SETTINGS and ADJUSTMENT : Menu Configuration and content" (P85)
for how to set each marker.
Zebra Indicator
The zebra signals are striped patterns that appear superimposed
on the actual picture. There are two zebra signals: the zebra 1
signal which appears in the area where the video level of the
subject is higher than the set value, and the zebra 2 signal which
appears only in the area where the video level is the same as the
set value. The zebra indicator is turned on/off by the assignable
switch on the front side of viewnder. (The zebra function is
assigned to the assignable switch F1 by default.)
Reference:
Refer to
"5. CAMERA SETTINGS and ADJUSTMENT : Menu Configuration and content" (P85)
for how to set the zebra
signal.
!
EXT
BATT
R TALLYG TALLY
!
EXT
BATT
Center marker
Action area
Frame marker
Title area
EXT
BATT
!
