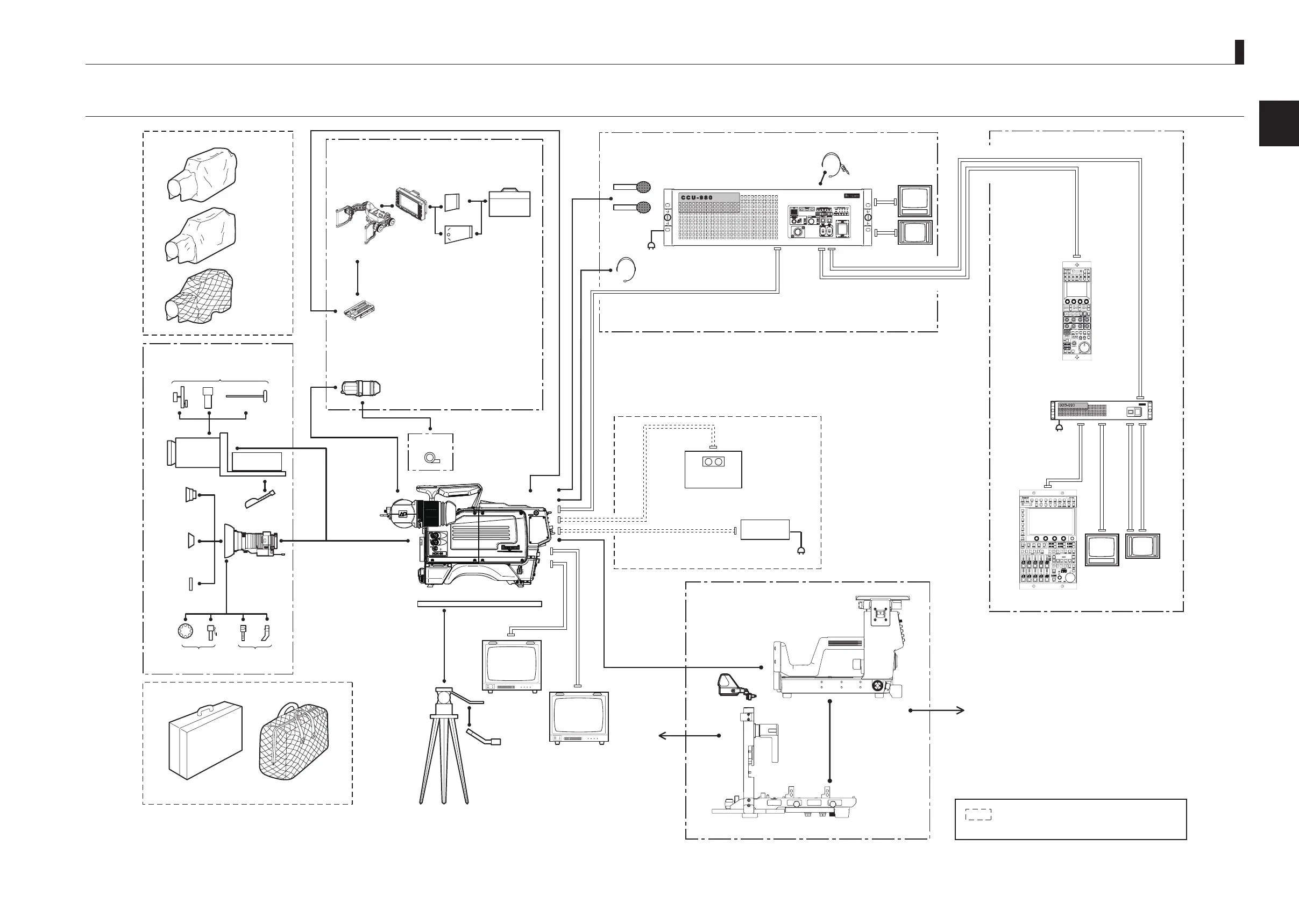

1.3 Connection Diagram
2
㻻㻲㻲
㻱㼄㼀
㻼㻻㼃㻱㻾
㻭㻯㼀㻵㼂㻱
㻿㼀㻭㻺㻰㻮㼅
㻮㻿㻛㻯㻯㼁
Lens
Manual Control
Zoom Lens
Prompter
Adaptor
Teleside
Converter
Wide
Attachment
W/Diascope
or
W/O Diascope
Remote Focus
Control Set
Remote Zoom
Control Set
12Pin
Zoom Lens
Script
Lamp
Filter
Zoom Remote
Control Box
Tripod
Multi Video Cable (Analog)
HDK-99
FA-97A
Tripod Mount Plate
HD
Monitor
(B/W)
HD
Monitor
(COLOR)
Coaxial Cable (HD SDI)
Coaxial Cable
- Lens
- Lens Accessory
2-inch VF (VFL201A)
Standard VF
Headsets
(PROD/ENG)
CCU-980
Camera Control Unit
Headset
MIC-1
Fiber Cable Max.3000m
PM
WFM
MIC-2
- 7.4-inch OLED VF(VFE741A)
- Script Lamp
- RET SW Box
- Pedestal/Tripod System
Camera Carrying Case Soft Carrying Case
Case
Cover
Dust Proof
Cover
Rain Proof
Cover
Cold Weather
Cover
AC
POWER
Coaxial Cable
DC Power Cable
DC 11 to DC16V
AC
HD
RECORDER
Mic Holder
Field Hood
HVF740HD-004
Studio Hood
HVF701D-003
Carrying Case
7.4-inch OLED VF
(VFE741A)
XVF740HD-021
ATA021-001
Tally Box
SE-H750
System Expander
Lens Supporter
SE Main Body
CSU
MCP Cable
Max.10m
CP Cable Max.80m
CP Cable Max.300m
Coaxial Cable
WFM Cont Cable
Coaxial Cable
AC
PM
WFM
OCP-300
MCP-300
Equipment inside the dotted frame is mainly
used for stand-alone/VTR location shooting.
