1.2 Operating Systems
1.2 Operating Systems
This product is equipped with functions which interface with a control panel and a control
unit. If you use the CCU-980, this product can support not only stand-alone VTR shooting
but also various shooting styles such as studio shooting and eld shooting as a system
camera.
Furthermore, you can choose and operate using various control panels connected to the
CCU, for your purpose.
■

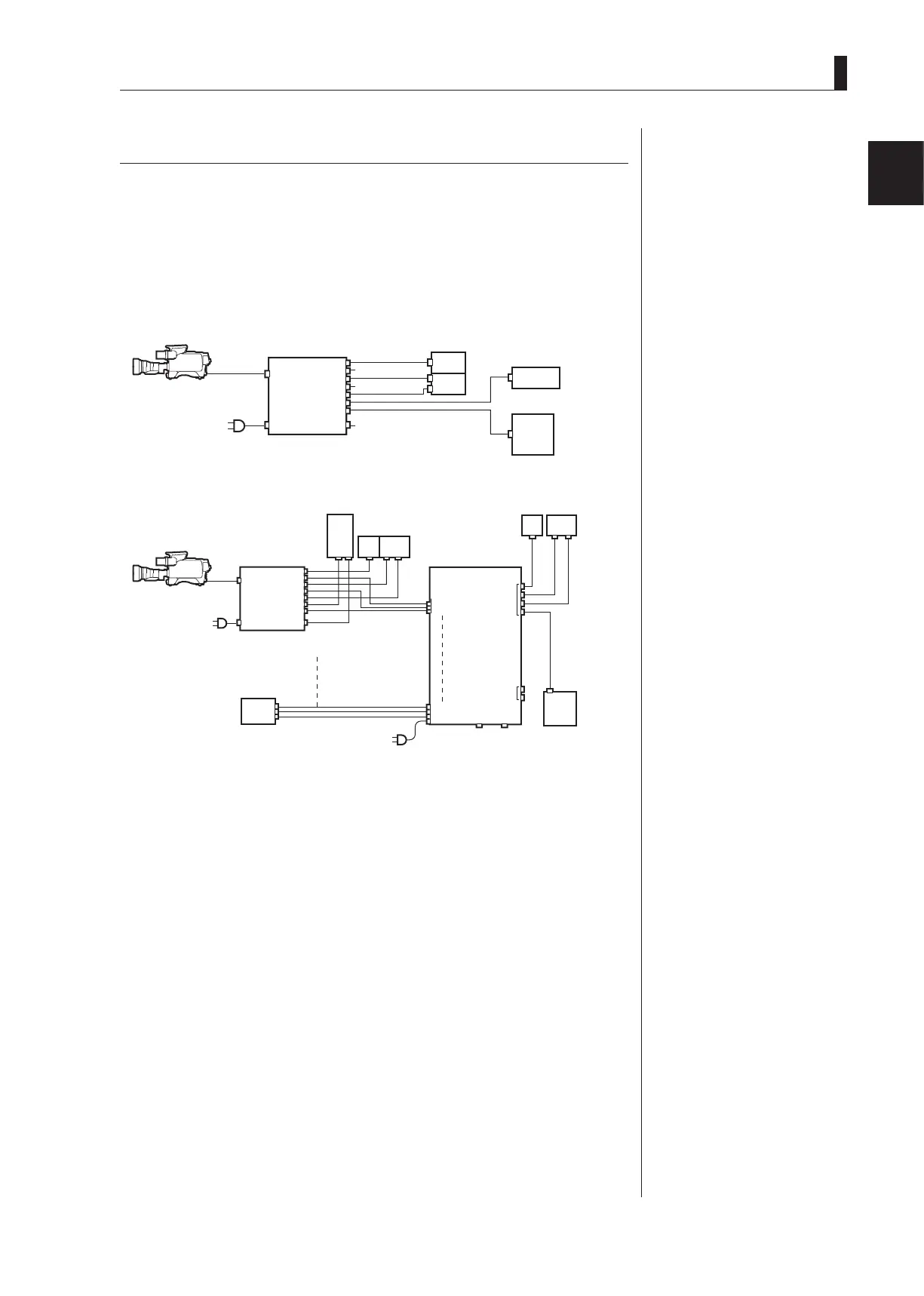

Example of Minimum Conguration of System Camera (1 camera, 1 OCP)
■
Example of System Camera Conguration (Up to 8 cameras, 1 MCP)
PM
WFM
WFM CONT
Camera Head
CCU
PM
WFM
COMM
PM
WFM
OCP
MCP
PS CONT
Camera Head
PM、WFM、COMM
WFM、COMM
WFM
CONT
PM
PM
WFM
WFM CONT
COMM
CCU-1
PM
WFM
COMM
PM WFM
MCP
CCU-1
CCU-8
OUT
IN
WFM
PM
OCP
CCU-8
CSU
Term:
OCP (Operation Control
Panel)
This control panel is used for
normal operation. Typically one
OCP is dedicated to one camera
chain.
Term:
MCP (Maintenance Control
Panel)
This control panel is used
for maintenance and precise
adjustment of the camera in
studio shooting. By using a
memory card, you can save the
shooting condition in memory
and make setup easy. By using a
CSU together with an MCP, you
can maintain up to 32 cameras.
Term:
CSU (Camera Select Unit)
Used when controlling multiple
cameras. With using an MCP,
one CSU can control up to 8
cameras, and contains terminals
through which video is output
on the monitor from the selected
camera.
