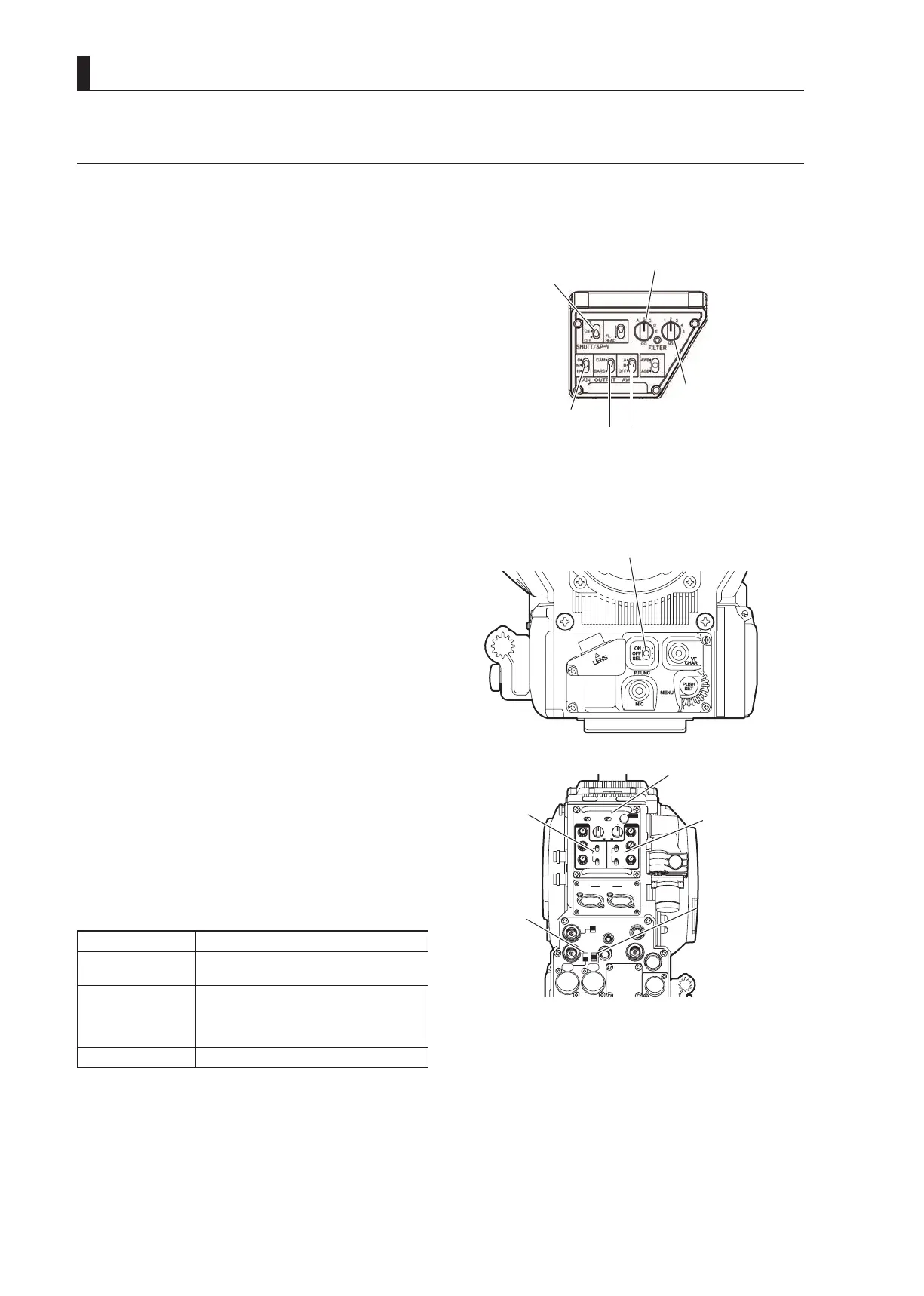

4.2 Switch Position Check
4.2 Switch Position Check
When the camera is used for the rst time, set the switches on the camera to the positions indicated in the gure below, and ensure
that the camera works properly. After ensuring that it works properly, set the switches according to the environment in which the
camera is used and shooting conditions.
■
Camera Right
- GAIN SELECT switch : 0
- AWB SELECT switch : A
- CC FILTER switch : B (3200K)
- ND FILTER switch : 2 (CLEAR)
- OUTPUT SELECT switch : CAM
- SHUTT/SUP-V switch : OFF
Note:
When the camera is connected to the CCU, the switches on
the camera are disabled except the CC FILTER switch and ND
FILTER switch. When the camera has the operational priority
for the CC FILTER and ND FILTER switches, the FILTER
local indicator lights. Pressing the FILTER HEAD switch will
switch the operational priority between the camera and the
CCU.
■
Camera Front
- P.FUNC switch : OFF
Note:
When the camera is connected to the CCU, you cannot use the
P.FUNC switch.
■
Camera Rear
- INTERCOM FRONT VR SELECT switch : OFF
- INTERCOM-1 MIC switch : ON
- INTERCOM-2 MIC switch : ON
- MIC-1 POWER switch, MIC-2 POWER switch
Depending on the type of microphone to use, the power supply
settings differ.
Switch Position Description
AB+12V Supplies +12V AB power to the
microphone.
OFF Supplies no power to the microphone.
Applicable for a dynamic microphone or
a microphone with built-in power supply
which requires no power supply.
+48V Supplies +48V Phantom power
Reference:
For details on the microphone, refer to the instructions accompanying the microphone to be used.
GAIN SELECT switch
AWB SELECT switch
CC FILTER switch
ND FILTER switch
OUTPUT SELECT switch
SHUTT/SUP-V switch
P.FUNC switch
INCOMENG
PROD
INCOMENG
PROD
MIC1
MIC2
PGM2
PGM1
MIC
ON
OFF
PTT
PROD
BOTH
ENG
MIC
ON
OFF
PTT
PROD
BOTH
ENG
INCOM
PGM2
PGM1
INCOM
REAR TALLYINCOM SEL
CALL
INCOM1 INCOM2
OFF ACT
FRONT
REAR
1 RET 2
FRONT
INC1 INC2
1
2
4
3
1
2
4
3
Q-TV/GL
EARPHONE
+12V
OFF
+48V
MON
MON SDI
SDI OUT
I/O
DC OUT
INTERCOM FRONT VR
SELECT switch
INTERCOM-2
MIC switch
INTERCOM-1
MIC switch
MIC-1 POWER
switch
MIC-2 POWER
switch
