Operation Manual Page 35
A.11.2.3 The 45 degree angled position
The glass plate can be stopped by the operator in the 45 degree position.
When stopped, the glass plate will be hold in this position.
This is a stable position and the recommended working position when scanning with the
glass plate.

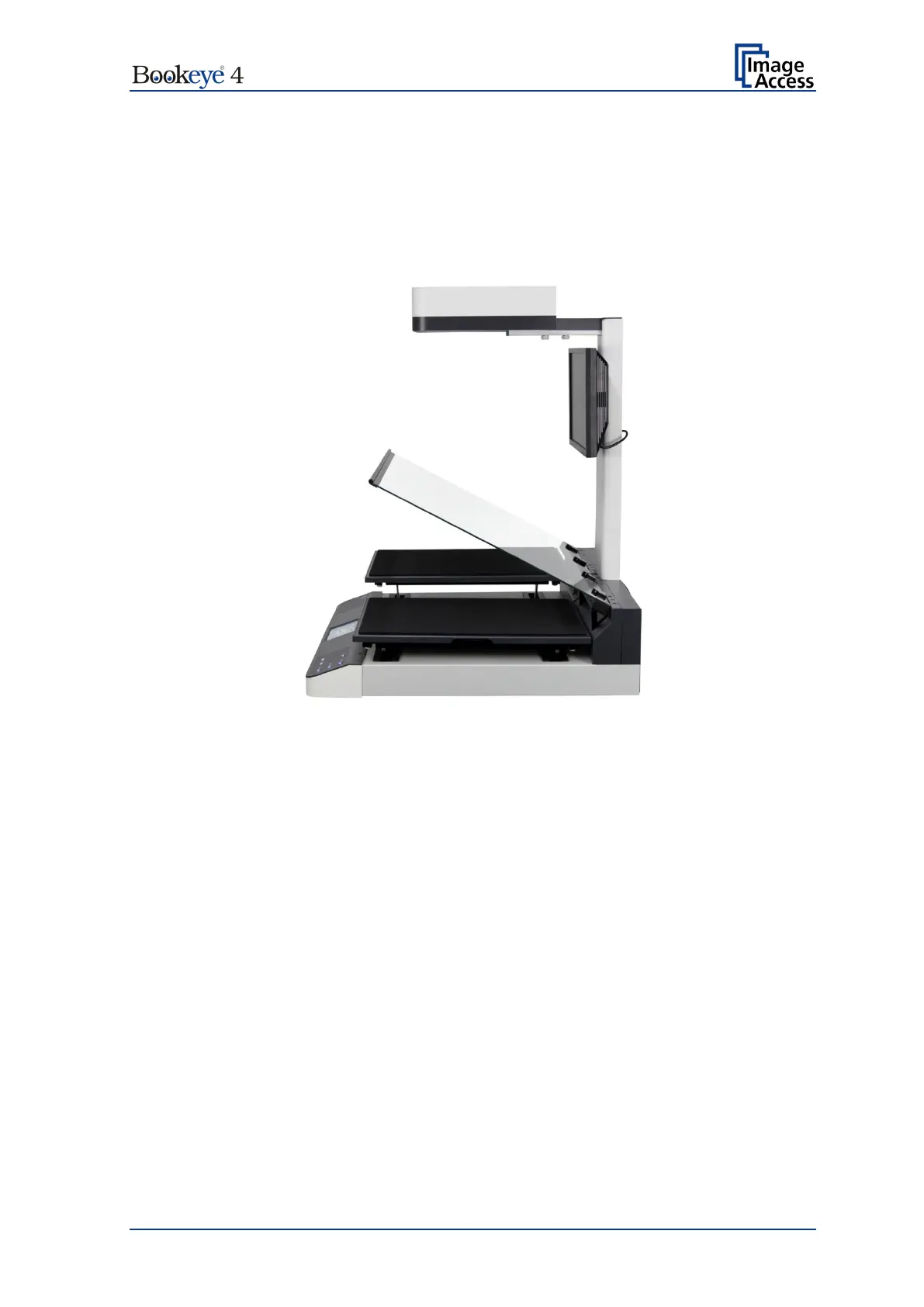

Picture 11: Glass plate opened in 45 degree position
